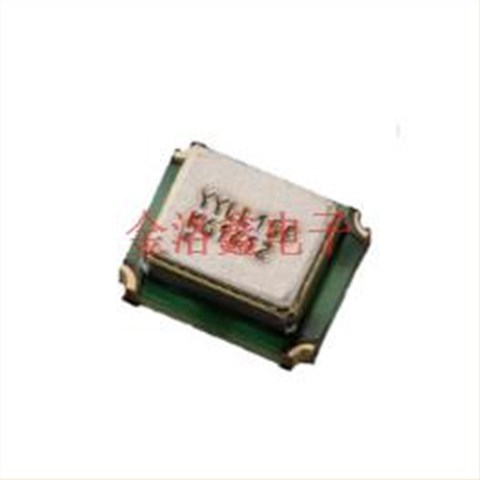

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

產品簡介

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器,電子設備對頻率控制精度和環境適應性要求日益提升的背景下,KT2520K26000CGU30T作為日本京瓷旗下的一款熱敏晶振,同時也是2520熱敏晶振規格的石英晶體振蕩器,采用高純度,低缺陷的石英晶體作為諧振核心,通過精密切割與拋光工藝,使其具備穩定的物理諧振特性,為頻率精度提供了基礎保障。憑借京瓷在晶體器件領域的尖端技術與嚴謹制造工藝,在通信,工業控制等多個領域展現出卓越的性能,成為精密電子系統中不可或缺的關鍵元件

產品詳情

JLXNR-1

JLX-1

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

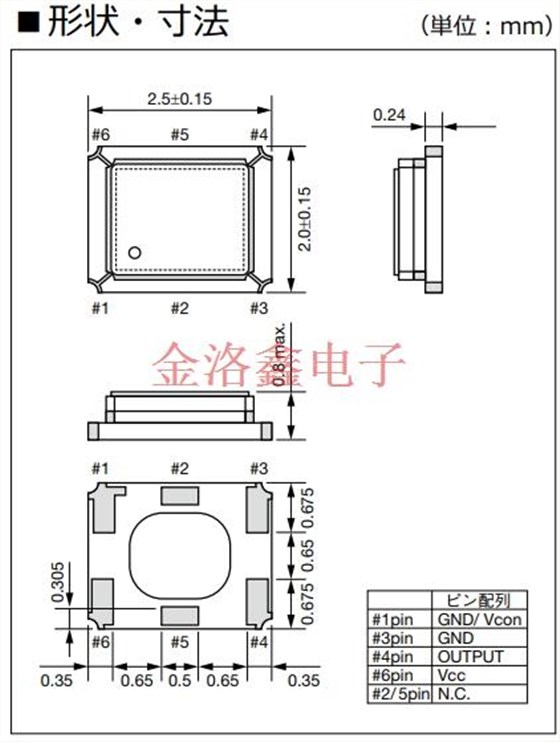

KT2520K26000CGU30T的型號蘊含著豐富的規格信息:"2520"明確標示了其封裝尺寸為2.5mm×2.0mm,屬于2520系列石英晶體振蕩器的標準規格。這一尺寸相比更小的2016規格略大,但仍保持了小型化的優勢,能夠適配于對空間有一定要求但無需極致緊湊設計的電子設備,如小型基站,工業傳感器模塊,汽車電子控制單元等.
作為表面貼裝型器件,KT2520K26000CGU30T采用標準化的貼片設計,可與其他表面貼裝元器件兼容自動化生產線,實現高效批量焊接,不僅提升了生產效率,還能通過減少人工干預降低誤差,確保產品性能的一致性。其標稱頻率為26MHz,這一頻率在通信設備的射頻模塊,數據處理單元中應用廣泛,能夠?yàn)樾盘?hào)的調制解調,數據傳輸提供穩定的時鐘基準.


JLXNR-2

JLX-2

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

原廠型號Original model ： KT2520K26000CGU30T 品牌 brand ： Cardinal晶振
Manufacturer品牌 京瓷晶振 Operating Temperature溫度 -10 ~ +75°C
Series型號 KT2520K Current - Supply (Max) -
Type 類型 TCXO溫補晶振 Package Height高度 0.8mm
Frequency 頻率 26M Termination腳位 6 pads
輸出方式Output： 削峰正弦波 Package Type封裝類型 6-SMD
Voltage - Supply電壓 3.0V Packaging包裝 Tape and Reel
Frequency Stability頻率穩定度 ±1.5ppm 安裝方式Installation ： Surface mount
Size / Dimension 尺寸 2520mm 最小包裝數 MPQ ： 3000

JLX-3

JLXNR-3

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

KT2520K

JLXNR-4

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

KC2016K1.50000C10E00 2.0 x 1.6mm 0.8 1.5 -10 70 ± 50 CMOS
KC2016K1.50000C16E00 2.0 x 1.6mm 0.8 1.5 -40 105 ± 50 CMOS
KC2016K1.50000C1GE00 2.0 x 1.6mm 0.8 1.5 -40 85 ± 50 CMOS
KC2016K1.50000C1SE00 2.0 x 1.6mm 0.8 1.5 -10 70 ± 30 CMOS
KC2016K1.50000C1UE00 2.0 x 1.6mm 0.8 1.5 -10 70 ± 25 CMOS
KC2016K1.84320C10E00 2.0 x 1.6mm 0.8 1.8432 -10 70 ± 50 CMOS
KC2016K1.84320C16E00 2.0 x 1.6mm 0.8 1.8432 -40 105 ± 50 CMOS
KC2016K1.84320C1GE00 2.0 x 1.6mm 0.8 1.8432 -40 85 ± 50 CMOS
KC2016K1.84320C1SE00 2.0 x 1.6mm 0.8 1.8432 -10 70 ± 30 CMOS
KC2016K1.84320C1UE00 2.0 x 1.6mm 0.8 1.8432 -10 70 ± 25 CMOS
KC2016K10.0000C10E00 2.0 x 1.6mm 0.8 10 -10 70 ± 50 CMOS
KC2016K10.0000C16E00 2.0 x 1.6mm 0.8 10 -40 105 ± 50 CMOS
KC2016K10.0000C1GE00 2.0 x 1.6mm 0.8 10 -40 85 ± 50 CMOS
KC2016K10.0000C1SE00 2.0 x 1.6mm 0.8 10 -10 70 ± 30 CMOS
KC2016K10.0000C1UE00 2.0 x 1.6mm 0.8 10 -10 70 ± 25 CMOS
KC2016K10.2400C10E00 2.0 x 1.6mm 0.8 10.24 -10 70 ± 50 CMOS
KC2016K10.2400C16E00 2.0 x 1.6mm 0.8 10.24 -40 105 ± 50 CMOS
KC2016K10.2400C1GE00 2.0 x 1.6mm 0.8 10.24 -40 85 ± 50 CMOS
KC2016K10.2400C1SE00 2.0 x 1.6mm 0.8 10.24 -10 70 ± 30 CMOS
KC2016K10.2400C1UE00 2.0 x 1.6mm 0.8 10.24 -10 70 ± 25 CMOS
KC2016K10.5554C10E00 2.0 x 1.6mm 0.8 10.5554 -10 70 ± 50 CMOS
KC2016K10.5554C16E00 2.0 x 1.6mm 0.8 10.5554 -40 105 ± 50 CMOS
KC2016K10.5554C1GE00 2.0 x 1.6mm 0.8 10.5554 -40 85 ± 50 CMOS
KC2016K10.5554C1SE00 2.0 x 1.6mm 0.8 10.5554 -10 70 ± 30 CMOS
KC2016K10.5554C1UE00 2.0 x 1.6mm 0.8 10.5554 -10 70 ± 25 CMOS
KC2016K100.000C10E00 2.0 x 1.6mm 0.8 100 -10 70 ± 50 CMOS
KC2016K100.000C16E00 2.0 x 1.6mm 0.8 100 -40 105 ± 50 CMOS
KC2016K100.000C1GE00 2.0 x 1.6mm 0.8 100 -40 85 ± 50 CMOS
KC2016K100.000C1SE00 2.0 x 1.6mm 0.8 100 -10 70 ± 30 CMOS
KC2016K100.000C1UE00 2.0 x 1.6mm 0.8 100 -10 70 ± 25 CMOS
KC2016K11.2896C10E00 2.0 x 1.6mm 0.8 11.2896 -10 70 ± 50 CMOS
KC2016K11.2896C16E00 2.0 x 1.6mm 0.8 11.2896 -40 105 ± 50 CMOS
KC2016K11.2896C1GE00 2.0 x 1.6mm 0.8 11.2896 -40 85 ± 50 CMOS
KC2016K11.2896C1SE00 2.0 x 1.6mm 0.8 11.2896 -10 70 ± 30 CMOS
KC2016K11.2896C1UE00 2.0 x 1.6mm 0.8 11.2896 -10 70 ± 25 CMOS
KC2016K12.0000C10E00 2.0 x 1.6mm 0.8 12 -10 70 ± 50 CMOS
KC2016K12.0000C16E00 2.0 x 1.6mm 0.8 12 -40 105 ± 50 CMOS
KC2016K12.0000C1GE00 2.0 x 1.6mm 0.8 12 -40 85 ± 50 CMOS
KC2016K12.0000C1SE00 2.0 x 1.6mm 0.8 12 -10 70 ± 30 CMOS
KC2016K12.0000C1UE00 2.0 x 1.6mm 0.8 12 -10 70 ± 25 CMOS
KC2016K12.2880C10E00 2.0 x 1.6mm 0.8 12.288 -10 70 ± 50 CMOS
KC2016K12.2880C16E00 2.0 x 1.6mm 0.8 12.288 -40 105 ± 50 CMOS
KC2016K12.2880C1GE00 2.0 x 1.6mm 0.8 12.288 -40 85 ± 50 CMOS
KC2016K12.2880C1SE00 2.0 x 1.6mm 0.8 12.288 -10 70 ± 30 CMOS
KC2016K12.2880C1UE00 2.0 x 1.6mm 0.8 12.288 -10 70 ± 25 CMOS
KC2016K12.4560C10E00 2.0 x 1.6mm 0.8 12.456 -10 70 ± 50 CMOS
KC2016K12.4560C16E00 2.0 x 1.6mm 0.8 12.456 -40 105 ± 50 CMOS
KC2016K12.4560C1GE00 2.0 x 1.6mm 0.8 12.456 -40 85 ± 50 CMOS
KC2016K12.4560C1SE00 2.0 x 1.6mm 0.8 12.456 -10 70 ± 30 CMOS
KC2016K12.4560C1UE00 2.0 x 1.6mm 0.8 12.456 -10 70 ± 25 CMOS
KC2016K12.5000C10E00 2.0 x 1.6mm 0.8 12.5 -10 70 ± 50 CMOS
KC2016K12.5000C16E00 2.0 x 1.6mm 0.8 12.5 -40 105 ± 50 CMOS
KC2016K12.5000C1GE00 2.0 x 1.6mm 0.8 12.5 -40 85 ± 50 CMOS
KC2016K12.5000C1SE00 2.0 x 1.6mm 0.8 12.5 -10 70 ± 30 CMOS
KC2016K12.5000C1UE00 2.0 x 1.6mm 0.8 12.5 -10 70 ± 25 CMOS
KC2016K125.000C10E00 2.0 x 1.6mm 0.8 125 -10 70 ± 50 CMOS
KC2016K125.000C16E00 2.0 x 1.6mm 0.8 125 -40 105 ± 50 CMOS
KC2016K125.000C1GE00 2.0 x 1.6mm 0.8 125 -40 85 ± 50 CMOS
KC2016K125.000C1SE00 2.0 x 1.6mm 0.8 125 -10 70 ± 30 CMOS
KC2016K125.000C1UE00 2.0 x 1.6mm 0.8 125 -10 70 ± 25 CMOS
