Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振

產品簡介

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振,Skyworks晶振,Si549有源晶振,549BAAB000118ACGR晶振,7050mm晶振,LVDS輸出差分晶振,頻率156.25MHz,工作溫度-40~85°C,電壓3.3V,頻率穩定性20ppm,超低抖動晶振,低相噪晶振,6G以太網晶振,服務器晶振,電信交換機晶振,測試與測量設備晶振.





產品詳情

ConnorWinfield-1Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振,Skyworks晶振,Si549有源晶振,549BAAB000118ACGR晶振,7050mm晶振,LVDS輸出差分晶振,頻率156.25MHz,工作溫度-40~85°C,電壓3.3V,頻率穩定性20ppm,超低抖動晶振,低相噪晶振,6G以太網晶振,服務器晶振,電信交換機晶振,測試與測量設備晶振.

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振特點：

•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb

•超低抖動:95 fs類型RMS (12 kHz - 20 MHz)

•配置多達4引腳可選擇的啟動頻率

•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)

•出色的PSNR和電源抗噪性:-80 dBc類型

•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號

•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項

•2.5x3.2, 3.2x5, 5x7 mm包裝選項

•樣品交付周期為1-2周

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振參數表

項目 符號 規格說明 條件
額定頻率 f_nom 156.25MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V
儲存溫度 T_stg -55℃~+125℃ 裸存
工作溫度 T_use -40℃~ +85℃
頻率穩定性 f_tol ±20 ppm +25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流 IDD 121mA Max
LVDS
對稱性（占空比） SYM 45%~55% 在輸出交叉點
輸出電壓 VOC 1.275V Max
LVDS
VO 0.9Vpp Max
輸入電壓 VIH 70%VDD Min

VIL 30%VDD Max
上升下降時間 tr/tf 350ps Max
LVDS
起始時間 t str 3ms Max
相位抖動 tpj 150fs Max
100 MHz ≤ FCLK < 200 MHz

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

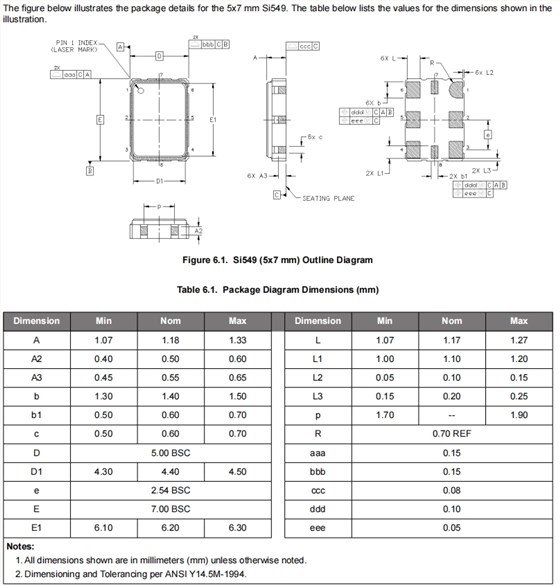

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太網晶振尺寸圖

si549-7050si549

si549-1

原廠編碼 品牌 型號 頻率 輸出 電壓 頻率穩定性 工作溫度
549BAAB000212BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000148ACG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCCC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABA000368ACG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACG Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAC001741ACG Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCBA000122ACG Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB002129ACG Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000126ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000508ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DACB001619ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCDC002122ACG Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA001372ACG Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACG Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000111ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAB001963BCGR Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000385BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACGR Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000385BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CBAC000508ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DAAA000485BCG Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCG Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCGR Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000368BCGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAC000177BCG Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000420BCGR Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABC002152BCGR Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCG Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002129ACGR Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCDC002122ACGR Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DACB001619ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000148ACGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000281BCG Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCGR Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA001372ACGR Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACGR Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABC002152BCG Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCG Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000212BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB001269BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000177BCGR Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC001741ACGR Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAB000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACC000520BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549AADA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAC000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCGR Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000111ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAC000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCG Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCBA000122ACGR Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DABB001895BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000420BCG Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DAAB001963BCG Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCGR Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DABB001895BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000281BCGR Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCG Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCGR Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000368BCG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549ACAC002076BCGR Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAC002076BCG Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCG Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCGR Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCCC000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549AADA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABA000368ACGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACC000520BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCCC000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAB000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ABAC001975BCGR Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCCA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCCC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001269BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549ABAC001975BCG Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA001924BCGR Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001924BCG Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB000126ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAA000485BCGR Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C

返回頭部
