當前位置：首頁 » 行業資訊 » 5G無線模塊專用晶振SG3225EAN編碼X1G004251002100

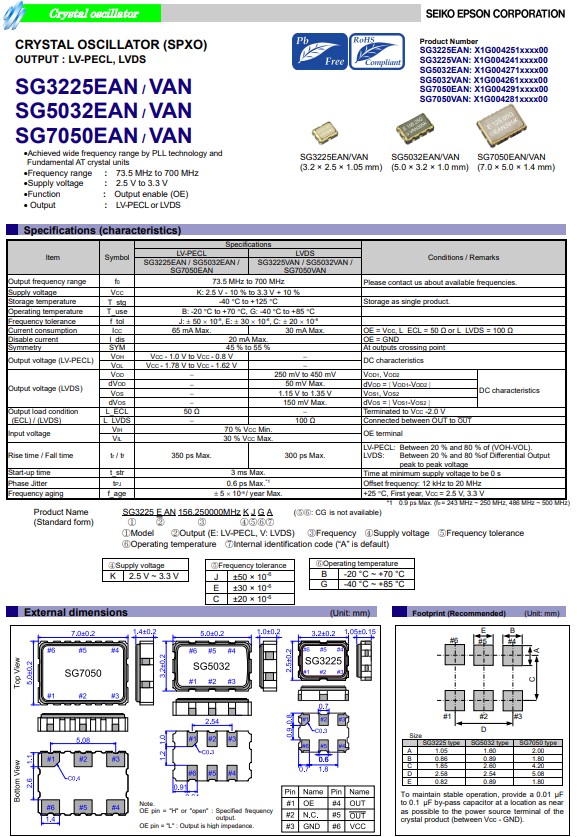

5G無線模塊專用晶振SG3225EAN編碼X1G004251002100

返回列表 來源：金洛鑫 瀏覽：- 發布日期：2022-09-09 15:22:20【大 中 小】
分享到：
愛普生晶振SG3225EAN差分晶振通過使用PLL技術和AT晶體單元來實現寬頻率范圍,為用戶提供73.5MHZ至700MHZ高頻,可選任一頻點.具有低電流,低電源電壓可達到低值1V,這對于普通貼片晶振而言是做不到的,此款差分晶振的工作電壓范圍在2.5V至3.3V.差分晶振具有LVDS,HCSL和LV-PECL三態輸出功能,愛普生SG3225EAN差分晶振就是具有LV-PECL輸出功能的一款差分石英晶體振蕩器.
SG3225EAN晶振采用3.2x2.5mm封裝,具有6個腳位貼片晶振,耐高溫儲存溫度可達-40℃~+125℃范圍,工作溫度范圍-40℃~85℃.低老化的特點±5x10-6/year Max.差分晶振在產品中使用具有高可靠性.差分晶振的精度值（PPM）可精確到±10PM,±20PM,±30PM,±50PM等.

5G無線模塊專用晶振SG3225EAN編碼X1G004251002100

石英晶體振蕩器 型號 頻率 尺寸 輸出波 電源電壓 工作溫度
X1G004251000100 SG3225EAN 100.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251000200 SG3225EAN 156.250000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004251000900 SG3225EAN 212.500000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251001200 SG3225EAN 75.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251001500 SG3225EAN 156.250000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251002000 SG3225EAN 700.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251002100 SG3225EAN 125.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251002400 SG3225EAN 100.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251002600 SG3225EAN 400.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251002800 SG3225EAN 212.500000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251003200 SG3225EAN 150.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251003400 SG3225EAN 156.250000MHz 3.20x2.50x1.20mm

LV-PECL Crystal

2.250 to 3.630 V -40 to 85 °C
X1G004251003500 SG3225EAN 312.500000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251006200 SG3225EAN 100.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004251010000 SG3225EAN 114.285000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C

SG3225EAN，VAN,SG5032EAN,VAN,SG7050EAN,VAN,

X1G004251012100 SG3225EAN 161.132812MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251012200 SG3225EAN 155.520000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004251012300 SG3225EAN 133.330000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251012400 SG3225EAN 322.562500MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251012500 SG3225EAN 133.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251012600 SG3225EAN 322.265625MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251012700 SG3225EAN 425.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251012800 SG3225EAN 156.253906MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251013100 SG3225EAN 360.500000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004251013200 SG3225EAN 644.531200MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251013800 SG3225EAN 644.531250MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251013900 SG3225EAN 121.500000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004251014000 SG3225EAN 650.000000MHz 3.20x2.50x1.20mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
5G無線模塊專用晶振SG3225EAN編碼X1G004251002100
隨著無線網絡,智能家電,4G,5G網絡,自動駕駛汽車等高科技的發展,對于石英晶體振蕩器的使用性能也要求越來越高.比如現在我們所依賴的網絡,單從速度上就不能滿足我們的需求了,而高精度SG3225EAN晶振就是為千兆光纖通信而生,為了我們更好的使用高速網絡,為滿足網絡設備對高標準參考時鐘的需求.
