CMOS輸出貼片振蕩器X1G004501001700用于醫療設備應用

返回列表 來源：金洛鑫 瀏覽：- 發布日期：2022-09-16 16:51:53【大 中 小】
分享到：

愛普生晶振發展成立至今成為國際赫赫有名的電子元件制造商,不僅為用戶提供優異的石英晶振,貼片晶振,TCXO晶振,時鐘晶體振蕩器等產品,能夠為客戶提供全國產化晶振解決方案.

日本愛普生晶振SG7050CCN，是一款CMOS輸出石英晶體振蕩器，小體積尺寸7.0x5.0mm四腳貼片晶振，5.0V電源電壓，頻率范圍2.5MHz至50MHz，工作溫度范圍B:-20℃至+70℃/G:-40℃至+85℃，具有小體積輕薄型，低功耗，低電壓，低抖動，高精度，高性能，高品質等特點，SG7050CCN有源晶振該產品已成為通信機、醫療設備，移動電話、尋呼機、全球定位系統(GPS)等許多電子應用系統必不可少的關鍵部件。

CMOS輸出貼片振蕩器X1G004501001700用于醫療設備應用

產品編碼 型號 頻率 貼片振蕩器 輸出波 電源電壓 工作溫度
X1G004501000100 SG7050CCN 4.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000300 SG7050CCN 16.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000400 SG7050CCN 48.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000500 SG7050CCN 11.059200MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000600 SG7050CCN 20.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000800 SG7050CCN 25.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000900 SG7050CCN 33.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001000 SG7050CCN 40.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001100 SG7050CCN 44.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001200 SG7050CCN 49.152000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001400 SG7050CCN 4.915200MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001500 SG7050CCN 8.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001600 SG7050CCN 5.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001700 SG7050CCN 24.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001800 SG7050CCN 3.579545MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C

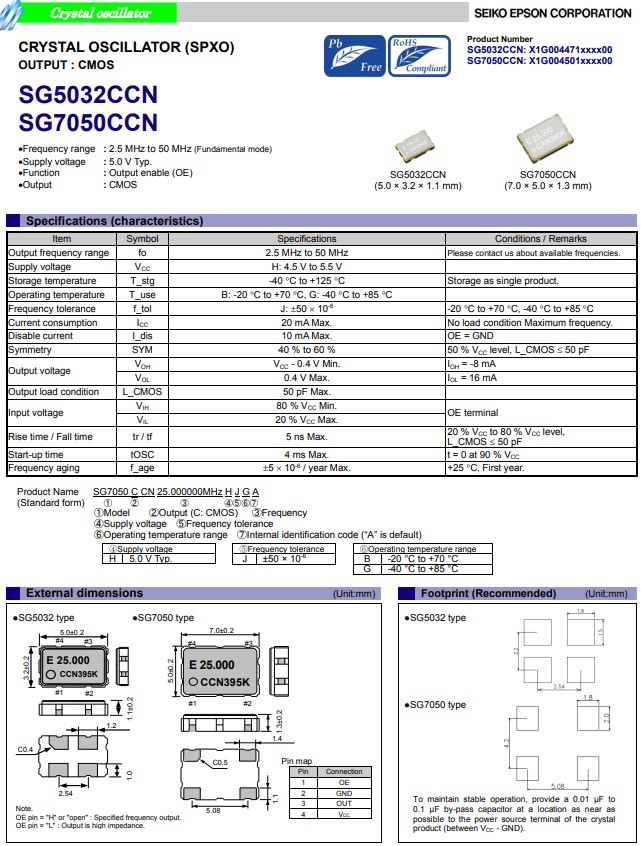

SG5032CCN，SG7050CCN

X1G004501002800 SG7050CCN 27.095000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501002900 SG7050CCN 29.500000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003000 SG7050CCN 3.072000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003100 SG7050CCN 10.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003200 SG7050CCN 12.288000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003300 SG7050CCN 18.432000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003400 SG7050CCN 19.660800MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501004000 SG7050CCN 7.372800MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501004800 SG7050CCN 15.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501005000 SG7050CCN 6.600000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501005700 SG7050CCN 20.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -20 to 70°C
X1G004501006000 SG7050CCN 8.192000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501006100 SG7050CCN 9.830400MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501007900 SG7050CCN 7.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501008300 SG7050CCN 6.144000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501008400 SG7050CCN 14.318180MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501008600 SG7050CCN 32.768000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -20 to 70°C
X1G004501008900 SG7050CCN 33.330000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501009000 SG7050CCN 40.960000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501009100 SG7050CCN 13.560000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -20 to 70°C
CMOS輸出貼片振蕩器X1G004501001700用于醫療設備應用
CMOS(Complementary Metal-Oxide-Semiconductor)，中文學名為互補金屬氧化物半導體，制造技術和一般計算機芯片沒什么差別，電壓控制的一種放大器件，主要是利用硅和鍺這兩種元素所做成的半導體，使其在CMOS上共存著帶N(帶-電) 和 P(帶+電)級的半導體，這兩個互補效應所產生的電流即可被處理芯片紀錄和解讀成影像。

有源晶振需要電源，但不需要附加的電容。它內部含有起振器。通常接到CPU的一根引腳即可，有源晶振不需要DSP的內部振蕩器,信號質量好,比較穩定,而且連接方式相對簡單(主要是做好電源濾波,通常使用一個電容和電感構成的PI型濾波網絡,輸出端用一個小阻值的電阻過濾信號即可),不需要復雜的配置電路.有源晶振通常的用法:一腳懸空,二腳接地,三腳接輸出,四腳接電壓。
