C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

產品簡介

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振,依托品牌在頻率控制領域的技術積累與車規級品質管控,展現出卓越的可靠性.AKER采用高純度石英晶體作為核心震蕩材料,經過精密的晶體切割,拋光及車規級密封封裝工藝處理,有效隔絕車載環境中的灰塵,油污,濕度(耐高溫晶振)對元件的影響,延長晶振使用壽命.生產過程中,該晶振需通過車規行業嚴苛測試:包括AEC-Q200車規認證測試(涵蓋高溫老化,溫度循環,振動沖擊等11項測試),頻率精度校準(每顆單獨校準至±10ppm內),長期穩定性測試(125℃持續運行2000小時),全面符合ISO9001質量管理體系標準及RoHS環保認證要求,不含鉛,鎘等有害物質,適配全球車載環保法規.

產品詳情

JLXNR-1

JLX-1

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

C2E-12.000-8-2050-X1-R是AKER推出的一款專為車載場景設計的無源晶振,核心頻率精準鎖定12.000MHz,這一頻率是車載電子模塊(如車機導航,ADAS輔助駕駛單元,車載網關)的關鍵基準時鐘頻率,能為車載信號處理,數據傳輸提供穩定時序支撐.其關鍵參數經過車載場景深度優化:8pF低負載電容可與車載芯片(如車載MCU,射頻收發器)的時鐘引腳完美匹配,無需額外調整外部電容即可快速穩定起振；頻率精度嚴格控制在±10ppm以內,在-40℃~+125℃的車規級寬溫范圍內,溫漂波動≤±3ppm/℃,可有效抵御車輛行駛中發動機高溫,冬季低溫等極端環境對頻率輸出的干擾.作為無源晶振,它具備低相位噪聲(10kHz偏移處≤-118dBc/Hz)特性,能減少車載電磁環境下的信號干擾,保障車載系統的低延遲,高可靠性運行,是車載電子設備穩定工作的核心頻率元件.

JLXNR-2

JLX-2

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

原廠型號Original model ： C2E-12.000-8-2050-X1-R 品牌 brand ： AKER晶振
品牌 brand ： AKER晶振 ESR（等效串聯電阻） Resistance) 200 Ohms
型號名稱Model name： C2E X1 溫度 Operating Temperature -40°C ~ 125°C
Type 系列： MHz Crystal 腳位 Termination： 4 pad
頻率frequency ： 12 MHz 封裝類型 Package Type： 4-SMD
Frequency Stability頻率穩定度 ±50ppm 高度 Package Height： 0.65mm
frequency tolerance頻率容差 ±20ppm 最小包裝數 MPQ ： 3000
Load capacitance負載電容 8pF 包裝 Packaging： Tape and Reel
Size / Dimension 尺寸 2.50mm x 2.00mm 安裝方式 Mounting Style： Surface Mount

JLXNR-3

JLX-3

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

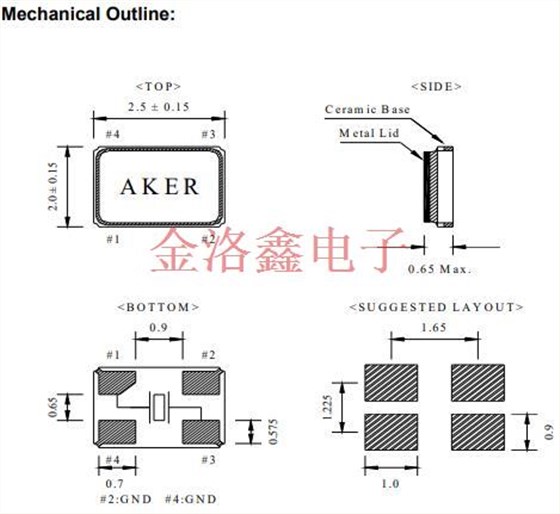

C2E尺寸圖

JLXNR-4

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

C16-26.000-8-1520-R AKER晶振 C16 MHz Crystal 26 MHz ±20ppm ±15ppm 8pF 120 Ohms
C5S-26.000-16-1010-R AKER晶振 C5S MHz Crystal 26 MHz ±10ppm ±10ppm 16pF 25 Ohms
C5S-8.000-18-3030-R AKER晶振 C5S MHz Crystal 8 MHz ±30ppm ±30ppm 18pF 150 Ohms
CAA-4.000-18-3050-X-R AKER晶振 CAA MHz Crystal 4 MHz ±50ppm ±30ppm 18pF 120 Ohms
CAA-11.0592-18-3050-R AKER晶振 CAA MHz Crystal 11.0592 MHz ±50ppm ±30ppm 18pF 50 Ohms
CAA-8.000-18-3050-X-R AKER晶振 CAA MHz Crystal 8 MHz ±50ppm ±30ppm 18pF 60 Ohms
CAA-40.000-18-3050-R AKER晶振 CAA MHz Crystal 40 MHz ±50ppm ±30ppm 18pF 80 Ohms
C3E-24.000-9-1010-R AKER晶振 C3E MHz Crystal 24 MHz ±10ppm ±10ppm 9pF 50 Ohms
C3E-12.000-12-1020-X-R AKER晶振 C3E MHz Crystal 12 MHz ±10ppm ±20ppm 12pF 120 Ohms
C3E-12.000-18-1020-X-R AKER晶振 C3E MHz Crystal 12 MHz ±10ppm ±20ppm 18pF 120 Ohms
C3E-25.000-20-1015-X-R AKER晶振 C3E MHz Crystal 25 MHz ±15ppm ±10ppm 20pF 40 Ohms
C3E-24.000-9-1015-X-R AKER晶振 C3E MHz Crystal 24 MHz ±15ppm ±10ppm 9pF 50 Ohms
C3E-16.000-9-1015-X-R AKER晶振 C3E MHz Crystal 16 MHz ±15ppm ±10ppm 9pF 60 Ohms
C2E-12.000-18-1020-R AKER晶振 C2E MHz Crystal 12 MHz ±20ppm ±10ppm 18pF 200 Ohms
C3E-8.000-20-1020-R AKER晶振 C3E MHz Crystal 8 MHz ±20ppm ±10ppm 20pF 150 Ohms
C3E-8.000-18-1020-X-R AKER晶振 C3E MHz Crystal 8 MHz ±20ppm ±10ppm 18pF 500 Ohms
C3E-8.000-8-1015-R AKER晶振 C3E MHz Crystal 8 MHz ±10ppm ±15ppm 8pF 500 Ohms
C3E-12.000-8-2050-X1-R AKER晶振 C3E X1 MHz Crystal 12 MHz ±50ppm ±20ppm 8pF 80 Ohms
C3E-16.000-10-3050-X1-R AKER晶振 C3E X1 MHz Crystal 16 MHz ±50ppm ±30ppm 10pF 60 Ohms
C16-32.000-8-1515-X-R AKER晶振 C16 MHz Crystal 32 MHz ±15ppm ±15ppm 8pF 100 Ohms
C3E-20.000-8-3050-X1-R AKER晶振 C3E X1 MHz Crystal 20 MHz ±50ppm ±30ppm 8pF 50 Ohms
C2E-12.000-18-1020-X-R AKER晶振 C2E MHz Crystal 12 MHz ±20ppm ±10ppm 18pF 200 Ohms
C5S-12.000-18-1020-R AKER晶振 C5S MHz Crystal 12 MHz ±20ppm ±10ppm 18pF 35 Ohms
C3E-8.000-18-1020-R AKER晶振 C3E MHz Crystal 8 MHz ±20ppm ±10ppm 18pF 500 Ohms
C3E-8.000-12-1020-M AKER晶振 C3E MHz Crystal 8 MHz ±10ppm ±20ppm 12pF 500 Ohms
C2E-12.000-8-2050-X1-R AKER晶振 C2E X1 MHz Crystal 12 MHz ±50ppm ±20ppm 8pF 200 Ohms
C3E-16.000-10-2050-X1-R AKER晶振 C3E X1 MHz Crystal 10 MHz ±50ppm ±20ppm 10pF 60 Ohms
C3E-30.000-8-2050-X1-R AKER晶振 C3E X1 MHz Crystal 30 MHz ±50ppm ±20ppm 8pF 40 Ohms
C7S-12.000-12-3030-X-R AKER晶振 C7S MHz Crystal 12 MHz ±30ppm ±30ppm 12pF 35 Ohms
C7S-8.000-18-1020-R 安基晶振 C7S MHz Crystal 8 MHz ±20ppm ±10ppm 18pF 40 Ohms
C7S-8.000-18-1030-X-R 安基晶振 C7S MHz Crystal 8 MHz ±30ppm ±10ppm 18pF 70 Ohms
CA4-16.000-18-3050-R 安基晶振 CA4 MHz Crystal 16 MHz ±50ppm ±30ppm 18pF 40 Ohms
CA4-8.000-16-3050-R 安基晶振 CA4 MHz Crystal 8 MHz ±50ppm ±30ppm 16pF 60 Ohms
C3E-8.000-10-1020-M 安基晶振 C3E MHz Crystal 8 MHz ±20ppm ±10ppm 10pF 500 Ohms
C16-96.000-8-1520-X2-R 安基晶振 - MHz Crystal 96 MHz ±15ppm ±20ppm 8pF -
C1E-76.800-10-1012-X-M 安基晶振 C1E MHz Crystal 76.8 MHz ±10ppm ±10ppm 10pF 60 Ohms
C1E-80.000-10-1015-X-M 安基晶振 C1E MHz Crystal 80 MHz ±10ppm ±10ppm 10pF 40 Ohms
C1E-76.800-8-1012-X-M 安基晶振 C1E MHz Crystal 46.8 MHz ±10ppm ±10ppm 8pF 60 Ohms
C1E-80.000-8-1015-X-M 安基晶振 C1E MHz Crystal 80 MHz ±10ppm ±10ppm 8pF 10 Ohms
C3E-24.576-12-3030-X-R 安基晶振 C3E MHz Crystal 24.576 MHz ±30ppm ±30ppm 12pF 100 Ohms
C3E-30.000-12-1020-X-R 安基晶振 C3E MHz Crystal 30 MHz ±10ppm ±20ppm 12pF 120 Ohms
C3E-12.000-12-1015-R 安基晶振 C3E MHz Crystal 12 MHz ±15ppm ±10ppm 12pF 100 Ohms
C3E-25.000-8-1015-X-R 安基晶振 C3E MHz Crystal 25 MHz ±15ppm ±10ppm 8pF 100 Ohms
C3E-26.000-10-1015-X-R3 安基晶振 C3E MHz Crystal 26 MHz ±15ppm ±10ppm 10pF 100 Ohms
C16-26.000-8-1010-R 安基晶振 C16 MHz Crystal 26 MHz ±10ppm ±10ppm 8pF 150 Ohms
C3E-16.000-8-2050-X1-R 安基晶振 C3E X1 MHz Crystal 16 MHz ±50ppm ±20ppm 8pF 60 Ohms
C3E-8.000-12-1020-R 安基晶振 C3E MHz Crystal 8 MHz ±20ppm ±10ppm 12pF 500 Ohms
C2E-12.000-10-2050-X1-R 安基晶振 C2E X1 MHz Crystal 12 MHz ±50ppm ±20ppm 10pF 200 Ohms
C1E-96.000-8-1216-X2-R 安基晶振 C1E X2 MHz Crystal 96 MHz ±16ppm ±12ppm 8pF 20 Ohms
C3E-12.000-12-3030-X-R 安基晶振 C3E MHz Crystal 12 MHz ±30ppm ±30ppm 12pF 100 Ohms
C3E-27.120-12-1010-R 安基晶振 C3E MHz Crystal 27.12 MHz ±10ppm ±10ppm 12pF 100 Ohms
C3E-24.576-12-1010-R 安基晶振 C3E MHz Crystal 24.576 MHz ±10ppm ±10ppm 12pF 100 Ohms
C3E-16.000-12-1015-R 安基晶振 C3E MHz Crystal 16 MHz ±15ppm ±10ppm 12pF 100 Ohms
C3E-13.560-12-1530-X-R 安基晶振 C3E MHz Crystal 13.56 MHz ±30ppm ±15ppm 12pF 100 Ohms
C2E-16.000-10-1010-R 安基晶振 C2E MHz Crystal 16 MHz ±10ppm ±10ppm 10pF 90 Ohms
C1E-24.000-10-1015-M 安基晶振 C1E MHz Crystal 24 MHz ±15ppm ±10ppm 10pF 100 Ohms
C2E-25.000-10-3030-X-M 安基晶振 C2E MHz Crystal 25 MHz ±30ppm ±30ppm 10pF 100 Ohms
C2E-48.000-10-1020-X-R 安基晶振 C2E MHz Crystal 48 MHz ±20ppm ±10ppm 10pF 50 Ohms
C3E-20.000-10-3050-X1-R 安基晶振 C3E X1 MHz Crystal 20 MHz ±50ppm ±30ppm 10pF 50 Ohms
C1E-96.000-9.9-1216-X2-R 安基晶振 C1E MHz Crystal 96 MHz ±16ppm ±12ppm 9.9pF 60 Ohms
