XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振

XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振

產品簡介

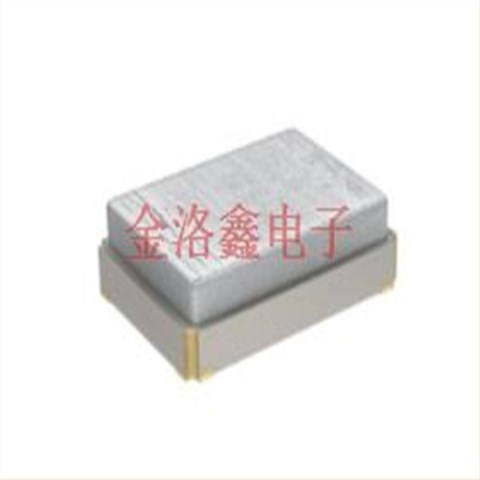

XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振,專為小型化電子設備設計,核心定位為高頻,高穩定性的時鐘信號源.型號中"48M000"明確其標稱頻率為48MHz,屬于高頻石英晶振范疇,無內置振蕩電路,需搭配外部驅動電路實現功能,作為日產元器件,其生產工藝與品控標準嚴格遵循日本電子元器件行業規范,能為設備提供精準,穩定的時鐘基準,適配對頻率精度與可靠性有高要求的電子場景,是小型貼片晶振設備實現高效數據處理與通信的關鍵組件.

產品詳情

JLXNR-1

JLX-1

XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振

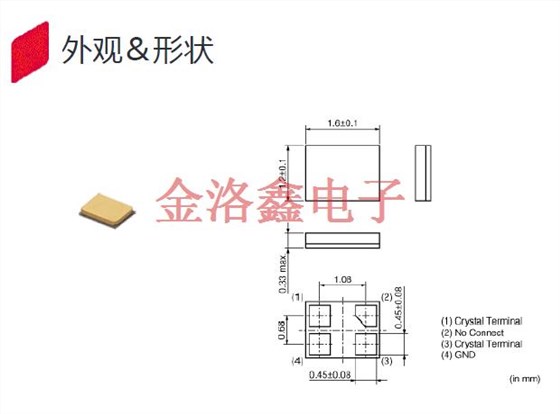

該晶振采用行業主流的 1612 封裝規格（即 1.6mm×1.2mm），在小型貼裝晶振中屬于超緊湊尺寸，具備顯著的空間優勢：相較于傳統 2520、3225 封裝晶振，其 PCB 板占用面積減少約 50% 以上，能輕松嵌入智能穿戴設備（如智能手環、藍牙耳機）、微型 IoT 傳感器、小型消費電子（如便攜式血糖儀、迷你播放器）等空間極度受限的產品中；同時，1612 封裝的輕薄特性（厚度通常僅 0.5mm 左右），可適配設備 “超薄化” 設計趨勢，避免因元器件尺寸限制影響產品整體外觀與便攜性，為小型電子設備的形態創新提供支撐。

JLXNR-2

JLX-2

XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振

原廠型號Originalmodel： XRCMD48M000F1P2AR0 品牌brand： Murata村田晶振
品牌brand： Murata村田晶振 ESR（等效串聯電阻）Resistance) 40 Ohms
型號名稱Modelname： XRCFD 溫度OperatingTemperature -40°C~85°C
Type系列： MHz Crystal 腳位Termination： 4pad
頻率frequency： 48 MHz 封裝類型PackageType： 4-SMD
FrequencyStability頻率穩定度 ±20ppm 高度PackageHeight： 0.33mm
frequencytolerance頻率容差 ±10ppm 最小包裝數MPQ： 3000
Loadcapacitance負載電容 7pF 包裝Packaging： TapeandReel
Size/Dimension尺寸 1.60mm x 1.20mm 安裝方式MountingStyle： SurfaceMount

JLXNR-3

JLX-3

XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振

XRCMD48M000FXQ58R0 1.6-1.2

JLXNR-4

XRCMD48M000F1P2AR0,1612石英晶振,小型貼裝晶振,日產晶振

XRCGB25M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H01R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 8pF 60 Ohms
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±10ppm ±10ppm 6pF 60 Ohms
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±35ppm 6pF 100 Ohms
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB MHz Crystal 48 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±30ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF 80 Ohms
XRCGB25M000F3M18R0 Murata村田晶振 - MHz Crystal 25 MHz ±40ppm ±30ppm 12pF 80 Ohms
XRCGB32M000F2P01R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 8pF 100 Ohms
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB25M000F2P02R0 Murata村田晶振 - MHz Crystal 25 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB24M000F2P01R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±20ppm 8pF 150 Ohms
XRCGB27M120F3M13R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF 60 Ohms
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 8pF 70 Ohms
XRCGB32M000FBH50R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±15ppm 10pF 60 Ohms
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 8pF 60 Ohms
XRCGB16M000FXN00R0 Murata村田晶振 - MHz Crystal 16 MHz ±40ppm ±40ppm 6pF 200 Ohms
XRCGB32M000F1H02R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB32M000F1H19R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 6pF 50 Ohms
XRCGB40M000F5A00R0 Murata村田晶振 - MHz Crystal 40 MHz ±65ppm ±50ppm 6pF 70 Ohms
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±30ppm 6pF 120 Ohms
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±30ppm 8pF 100 Ohms
XRCGB48M000F5A00R0 Murata村田晶振 - MHz Crystal 48 MHz ±65ppm ±50ppm 6pF 60 Ohms
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD MHz Crystal 25 MHz ±35ppm ±15ppm 6pF 100 Ohms
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA MHz Crystal 20 MHz ±100ppm ±100ppm 8pF 80 Ohms
XRCGB27M120F0L00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB32M000F0L00R0 Murata村田晶振 - MHz Crystal 32 MHz ±50ppm ±100ppm 6pF 100 Ohms
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±25ppm 6pF 150 Ohms
XRCGB38M400F4M00R0 Murata村田晶振 - MHz Crystal 38.4 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB50M000F4M00R0 Murata村田晶振 - MHz Crystal 50 MHz ±40ppm ±45ppm 6pF 65 Ohms
XRCGB32M000F3M00R0 Murata村田晶振 - MHz Crystal 32 MHz ±40ppm ±30ppm 6pF 100 Ohms
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P02R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 10pF 100 Ohms
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 30 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F2P02R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB32M000F2P26R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 5pF 70 Ohms
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB MHz Crystal 31.25 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F3G00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±30ppm 6pF 150 Ohms
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB MHz Crystal 16 MHz ±40ppm ±40ppm 8pF 200 Ohms
XRCGB27M600F2C00R0 Murata村田晶振 - MHz Crystal 27.6 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCGB24M000F1H01R0 Murata村田晶振 - MHz Crystal 24 MHz ±10ppm ±10ppm 8pF 80 Ohms
XRCGB26M000F1H02R0 Murata村田晶振 - MHz Crystal 26 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB24M000F1H70R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±10ppm 6pF 80 Ohms
XRCGB32M000F1H83R0 Murata村田晶振 - MHz Crystal 32 MHz ±15ppm ±10ppm 9pF 60 Ohms
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE MHz Crystal 27 MHz ±35ppm ±15ppm 6pF 80 Ohms
XRCGB26M000F3A00R0 Murata村田晶振 - MHz Crystal 26 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE MHz Crystal 26 MHz ±35ppm ±15ppm 8pF 80 Ohms
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD MHz Crystal 20 MHz ±45ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±20ppm 8pF 120 Ohms
XRCGB27M120F3P00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB MHz Crystal 26 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD MHz Crystal 32 MHz ±15ppm ±10ppm 9pF 40 Ohms
