當前位置：首頁 » 石英晶振 » 村田晶振 » XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振

prevnext

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振

頻率：20MHz

尺寸：2.50mm x 2.00mm

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振具備顯著的空間優勢,相較于更大尺寸的晶振(如3225封裝),在PCB板上占用面積減少約30%,尤其適合智能穿戴設備晶振,小型IoT終端,便攜式消費電子等對空間敏感的產品,貼片式設計兼容自動化SMT貼片工藝,能提升生產效率,降低人工焊接誤差,同時其緊湊的結構設計可減少外部應力對晶體的影響,提升安裝后的穩定性,適配批量生產的工業化需求,滿足各類小型電子設備的組裝適配標準.

訂購熱線：0755-27837162

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振

XRCHA21M000F0A01R0是日本Murata村田旗下XRCHA系列中的一款晶體諧振器,專為對元器件尺寸與性能有雙重要求的電子設備設計.作為典型的小型貼片晶振,其采用2520晶振封裝規格(即2.5mm×2.0mm),在尺寸上較傳統封裝大幅縮減,能輕松適配電子設備小型化,高密度布局需求,標稱頻率為21MHz,屬于中高頻晶體諧振器范疇,無內置振蕩電路,需配合外部驅動電路工作,依托村田在晶體材料與制造工藝上的技術積累,可提供穩定的時鐘信號輸出,為設備核心功能運行奠定基礎.

JLX-2

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振

原廠型號 Originalmodel：	XRCHA20M000F0A01R0	品牌brand：	Murata村田晶振
品牌brand：	村田晶振	ESR（等效串聯電阻）Resistance)	80 Ohms
型號名稱 Modelname：	XRCHA	溫度OperatingTemperature	-40°C~125°C
Type系列：	MHz Crystal	腳位Termination：	2pad
頻率 frequency：	20 MHz	封裝類型PackageType：	2-SMD
FrequencyStability頻率穩定度	±100ppm	高度PackageHeight：	0.80mm
frequencytolerance頻率容差	±30ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	8pF	包裝Packaging：	TapeandReel
Size/Dimension尺寸	2.50mm x 2.00mm	安裝方式MountingStyle：	SurfaceMount

JLX-3

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振

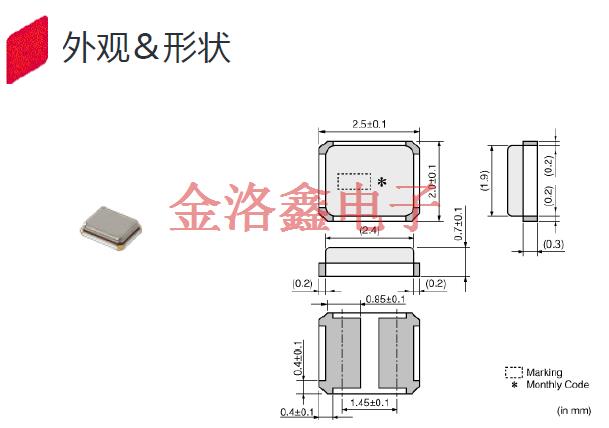

XRCHA16M000F0A01R0 2.5_2.0

JLXNR-4

XRCHA21M000F0A01R0,日本Murata村田晶振,XRCHA晶體諧振器,2520小型貼片晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF	60 Ohms
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF	60 Ohms
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±35ppm	6pF	100 Ohms
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	MHz Crystal	48 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±30ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF	80 Ohms
XRCGB25M000F3M18R0	Murata村田晶振	-	MHz Crystal	25 MHz	±40ppm	±30ppm	12pF	80 Ohms
XRCGB32M000F2P01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF	100 Ohms
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB25M000F2P02R0	Murata村田晶振	-	MHz Crystal	25 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB24M000F2P01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF	150 Ohms
XRCGB27M120F3M13R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF	60 Ohms
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF	70 Ohms
XRCGB32M000FBH50R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±15ppm	10pF	60 Ohms
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF	60 Ohms
XRCGB16M000FXN00R0	Murata村田晶振	-	MHz Crystal	16 MHz	±40ppm	±40ppm	6pF	200 Ohms
XRCGB32M000F1H02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB32M000F1H19R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF	50 Ohms
XRCGB40M000F5A00R0	Murata村田晶振	-	MHz Crystal	40 MHz	±65ppm	±50ppm	6pF	70 Ohms
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±30ppm	6pF	120 Ohms
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±30ppm	8pF	100 Ohms
XRCGB48M000F5A00R0	Murata村田晶振	-	MHz Crystal	48 MHz	±65ppm	±50ppm	6pF	60 Ohms
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	MHz Crystal	25 MHz	±35ppm	±15ppm	6pF	100 Ohms
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	MHz Crystal	20 MHz	±100ppm	±100ppm	8pF	80 Ohms
XRCGB27M120F0L00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB32M000F0L00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±50ppm	±100ppm	6pF	100 Ohms
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±25ppm	6pF	150 Ohms
XRCGB38M400F4M00R0	Murata村田晶振	-	MHz Crystal	38.4 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB50M000F4M00R0	Murata村田晶振	-	MHz Crystal	50 MHz	±40ppm	±45ppm	6pF	65 Ohms
XRCGB32M000F3M00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±40ppm	±30ppm	6pF	100 Ohms
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	10pF	100 Ohms
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	30 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F2P02R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB32M000F2P26R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	5pF	70 Ohms
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F3G00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±30ppm	6pF	150 Ohms
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	MHz Crystal	16 MHz	±40ppm	±40ppm	8pF	200 Ohms
XRCGB27M600F2C00R0	Murata村田晶振	-	MHz Crystal	27.6 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCGB24M000F1H01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF	80 Ohms
XRCGB26M000F1H02R0	Murata村田晶振	-	MHz Crystal	26 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB24M000F1H70R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±10ppm	6pF	80 Ohms
XRCGB32M000F1H83R0	Murata村田晶振	-	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF	60 Ohms
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	MHz Crystal	27 MHz	±35ppm	±15ppm	6pF	80 Ohms
XRCGB26M000F3A00R0	Murata村田晶振	-	MHz Crystal	26 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	MHz Crystal	26 MHz	±35ppm	±15ppm	8pF	80 Ohms
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	MHz Crystal	20 MHz	±45ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±20ppm	8pF	120 Ohms
XRCGB27M120F3P00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	MHz Crystal	26 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF	40 Ohms
