FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振

產品簡介

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振,該晶振采用陶瓷封裝工藝,具備良好的散熱性能與機械強度,在5G終端設備(如5GCPE,工業物聯網網關)中,可輕松集成到緊湊的電路板上,支持多電壓供電(2.5V/3.3V),適配不同5G設備的電源架構.在5G工業物聯網網關中,3225晶振為網關的通信模塊提供時序基準,保障網關與5G基站,工業設備間的雙向數據傳輸,在5G智能電表等終端設備中,其小型化與低功耗特性(動態電流≤5mA),可減少設備體積與能耗,適配終端設備長期穩定運行需求,同時穩定的頻率輸出確保電表數據采集與上傳的時序精度,避免因頻率偏差導致的計量誤差.

產品詳情

JLXNR-1

JLX-1

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振

FC3BQBBMM25.0-T3,FC3BQ晶振與3225無源晶振可構建"全鏈路覆蓋"的5G網絡頻率方案：在5G宏基站系統中,5G網絡基礎設施高頻率晶振(如50MHz型號)為基站的功率放大器提供高頻時序,保障射頻信號的穩定發射,提升基站覆蓋范圍(如實現3公里以上的有效覆蓋),FC3BQBBMM25.0-T3則為基站基帶處理單元(BBU)的高速接口模塊提供25.0MHz基準頻率,確保BBU與RRU間的光纖傳輸速率(如25Gbps)穩定,FC3BQ晶振適配5G微基站的信號處理單元,通過小型化封裝與高穩定性,在密集城區場景下保障微基站的信號補盲質量,3225晶振則應用于5G終端設備(如5G工業傳感器),為傳感器數據采集與上傳提供時序支撐.四者結合,覆蓋5G網絡"宏基站-微基站-核心網-終端"全鏈路的頻率需求,且均具備高可靠性與抗干擾性,在5G復雜通信環境下,為5G網絡的高速,低延遲,廣覆蓋提供核心時序保障.

JLXNR-2

JLX-2

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振

原廠型號Original model ： FC3BQBBMM25.0-T3 品牌 brand ： FOX無源晶振
品牌 brand ： FOX超小型晶振 ESR（等效串聯電阻） Resistance) 80 Ohms
型號名稱Model name： FC3BQ 溫度 Operating Temperature -40°C ~ 85°C
Type 系列： MHz Crystal 腳位 Termination： 4 pad
頻率frequency ： 25 MHz 封裝類型 Package Type： 4-SMD
Frequency Stability頻率穩定度 ±50ppm 高度 Package Height： 1.10mm
frequency tolerance頻率容差 ±50ppm 最小包裝數 MPQ ： 3000
Load capacitance負載電容 20pF 包裝 Packaging： Tape and Reel

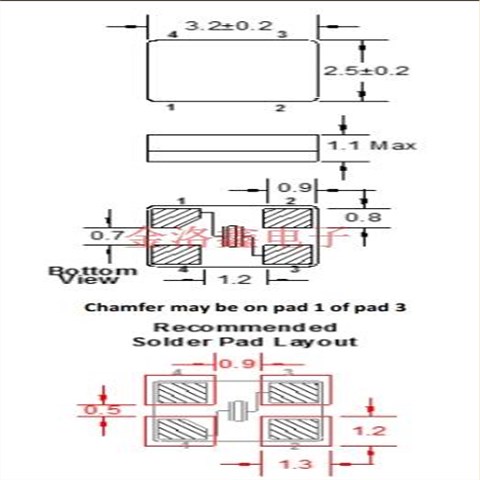

Size / Dimension 尺寸 3.20mm x 2.50mm 安裝方式 Mounting Style： Surface Mount

JLX-3

JLXNR-3

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振

FC3BQ

JLXNR-4

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振

FC4SDCBMF10.0-T1 FOX無源晶振 HC49SDLF石英晶振 MHz Crystal 10 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMF8.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 8 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4SDCBMF3.6864-T1 FOX無源晶振 HC49SDLF MHz Crystal 3.6864 MHz ±50ppm ±30ppm 20pF 200 Ohms
FKFSREIHM0.032768-T3 FOX無源晶振 FSRLF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 50 kOhms
FC4STCBMF20.0 FOX無源晶振 HC49SLF MHz Crystal 20 MHz ±50ppm ±30ppm 20pF 30 Ohms
FK135EIHM0.032768-T3 FOX無源晶振 K135 kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 70 kOhms
FC5BQCCMC12.0-T1 FOX無源晶振 C5BQ MHz Crystal 12 MHz ±30ppm ±30ppm 20pF 80 Ohms
FC5BQCCMM25.0-T1 FOX無源晶振 C5BQ MHz Crystal 25 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMM12.0-T1 FOX無源晶振 C5BQ MHz Crystal 12 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC7BSCCMM8.0-T1 FOX無源晶振 C7BS MHz Crystal 8 MHz ±30ppm ±30ppm 20pF 110 Ohms
FC7BSCCMM7.3728-T1 FOX無源晶振 C7BS MHz Crystal 7.3728 MHz ±30ppm ±30ppm 20pF 110 Ohms
FKFSXEIHM0.032768-T3 FOX無源晶振 FSXLF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 65 kOhms
FKFSREIBM0.032768-T3 FOX無源晶振 FSRLF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 6pF 50 kOhms
FC8AQCCMC3.6864-T1 FOX無源晶振 FC8AQ MHz Crystal 3.6864 MHz ±30ppm ±30ppm 20pF 150 Ohms
FC8AQCCMC4.0-T1 FOX無源晶振 FC8AQ MHz Crystal 4 MHz ±30ppm ±30ppm 20pF 150 Ohms
FC4SDCBMF11.0592-T1 FOX無源晶振 HC49SDLF MHz Crystal 11.0592 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMF25.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 25 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4SDCBMF16.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 16 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBMF12.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 12 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMF24.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 24 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4SDCBMM25.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 25 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4SDCBMF14.7456-T1 FOX無源晶振 HC49SDLF MHz Crystal 14.7456 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBMM8.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 8 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4SDCBMF7.3728-T1 FOX無源晶振 HC49SDLF MHz Crystal 7.3728 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4SDCBMF6.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 6 MHz ±50ppm ±30ppm 20pF 120 Ohms
FC4SDCBMF4.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 4 MHz ±50ppm ±30ppm 20pF 150 Ohms
FC3BQBBME12.0-T3 FOX無源晶振 FQ3225B MHz Crystal 12 MHz ±50ppm ±50ppm 20pF 120 Ohms
FC3BQBBMM25.0-T3 FOX無源晶振 FC3BQ MHz Crystal 25 MHz ±50ppm ±50ppm 20pF 80 Ohms
FKT38EIHD0.032768 FOX無源晶振 NC38LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 35 kOhms
FC4STCBMF10.0 FOX無源晶振 HC49SLF MHz Crystal 10 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4STCBMF25.0 FOX無源晶振 HC49SLF MHz Crystal 25 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4STCBMF16.0 FOX無源晶振 HC49SLF MHz Crystal 16 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4STCBMF12.0 FOX無源晶振 HC49SLF MHz Crystal 12 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4STCBMF11.0592 FOX無源晶振 HC49SLF MHz Crystal 11.0592 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4STCBMF8.0 FOX無源晶振 HC49SLF MHz Crystal 8 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4STCBMF7.3728 FOX無源晶振 HC49SLF MHz Crystal 7.3728 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4STCBLF3.579545 FOX無源晶振 HC49SLF MHz Crystal 3.579545 MHz ±50ppm ±30ppm 18pF 200 Ohms
FC4STCBMF4.0 FOX無源晶振 HC49SLF MHz Crystal 4 MHz ±50ppm ±30ppm 20pF 150 Ohms
FC4STCBMF3.6864 FOX無源晶振 HC49SLF MHz Crystal 3.6864 MHz ±50ppm ±30ppm 20pF 200 Ohms
FKT26EIHD0.032768 FOX無源晶振 NC26LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 50 kOhms
FKT38EIHQ0.032768 FOX無源晶振 NC38LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 35 kOhms
FC5BQCCMC25.0-T1 FOX無源晶振 C5BQ MHz Crystal 25 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMC24.0-T1 FOX無源晶振 C5BQ MHz Crystal 24 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMC20.0-T1 FOX無源晶振 C5BQ MHz Crystal 20 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMC16.0-T1 FOX無源晶振 C5BQ MHz Crystal 16 MHz ±30ppm ±30ppm 20pF 80 Ohms
FC7BSCCMC8.0-T1 FOX無源晶振 C7BS MHz Crystal 8 MHz ±30ppm ±30ppm 20pF 110 Ohms
FC7BSCCMM6.0-T1 FOX無源晶振 C7BS MHz Crystal 6 MHz ±30ppm ±30ppm 20pF 80 Ohms
FC7BSCCMC7.3728-T1 FOX無源晶振 C7BS MHz Crystal 7.3728 MHz ±30ppm ±30ppm 20pF 110 Ohms
FC8AQCCMC6.0-T1 FOX無源晶振 FC8AQ MHz Crystal 6 MHz ±30ppm ±30ppm 20pF 150 Ohms
FC4SDCBMF12.288-T1 FOX無源晶振 HC49SDLF MHz Crystal 12.288 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMM16.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 16 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBMF18.432-T1 FOX無源晶振 HC49SDLF MHz Crystal 18.432 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBLF3.579545-T1 FOX無源晶振 HC49SDLF MHz Crystal 3.579545 MHz ±50ppm ±30ppm 18pF 200 Ohms
FC4SDCBMM4.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 4 MHz ±50ppm ±30ppm 20pF 150 Ohms
FC2BSBBMM16.0-T3 FOX無源晶振 FX252B MHz Crystal 16 MHz ±50ppm ±50ppm 20pF 200 Ohms
FC4STCBMF18.432 FOX無源晶振 HC49SLF MHz Crystal 18.432 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4STCBMF14.7456 FOX無源晶振 HC49SLF MHz Crystal 14.7456 MHz ±50ppm ±30ppm 20pF 40 Ohms
FKT26EIHQ0.032768 FOX無源晶振 NC26LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 35 kOhms
FC3BACALI16.0-T3 FOX無源晶振 C3BA MHz Crystal 16 MHz ±100ppm ±30ppm 18pF 100 Ohms
FC3BACBDI16.0-T3 FOX無源晶振 C3BA MHz Crystal 16 MHz ±50ppm ±30ppm 8pF 100 Ohms
