FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振

FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振

產品簡介

FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振,完美適配汽車電子中空間受限的模塊(如車載雷達傳感器,自動駕駛域控制器).該晶振采用無鉛陶瓷封裝與自動化貼片焊接工藝,不僅適配汽車電子的大規模量產需求,還具備優異的散熱性能,在汽車毫米波雷達模塊中,可通過高效散熱避免晶振因局部高溫(雷達工作時模塊溫度可達80℃以上)導致的性能衰減,同時,其電磁兼容(EMC)性能符合ISO11452汽車電磁輻射標準,能抵御車載高壓線束,電機產生的電磁干擾,確保時序信號穩定.

產品詳情

JLXNR-3

JLX-1

FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振

FC8AQCCMC3.6864-T1是FOX品牌專為汽車電子場景設計的汽車級晶振,輸出頻率精準鎖定3.6864MHz,這一頻率是汽車實時時鐘(RTC),車身控制模塊的標準基準頻率,在-40℃~125℃汽車寬溫區間內(覆蓋極寒到發動機艙高溫環境),頻率穩定度嚴格控制在±15ppm以內,部分高端型號可達±10ppm,為汽車電子設備提供可靠時序支撐.該晶振采用高穩定性石英晶體內核與抗硫化封裝工藝,能抵御汽車尾氣中的硫化物腐蝕,避免晶振性能衰減,在汽車智能鑰匙,胎壓監測系統(TPMS)等低功耗設備中,可通過穩定的3.6864MHz頻率實現精準定時(如TPMS每30秒采集一次胎壓數據),同時低功耗特性延長設備電池壽命(可達3~5年),減少車主更換電池的頻率.

JLXNR-2

JLX-2

FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振

原廠型號Original model ： FC8AQCCMC3.6864-T1 品牌 brand ： FOX無源晶振
品牌 brand ： FOX無源晶振 ESR（等效串聯電阻） Resistance) 150 Ohms
型號名稱Model name： FC8AQ石英晶振 溫度 Operating Temperature 0°C ~ 70°C
Type 系列： MHz Crystal 腳位 Termination： 2 pad
頻率frequency ： 3.6864 MHz 封裝類型 Package Type： 2-SMD
Frequency Stability頻率穩定度 ±30ppm 高度 Package Height： 1.70mm
frequency tolerance頻率容差 ±30ppm 最小包裝數 MPQ ： -
Load capacitance負載電容 20pF 包裝 Packaging： Tape and Reel

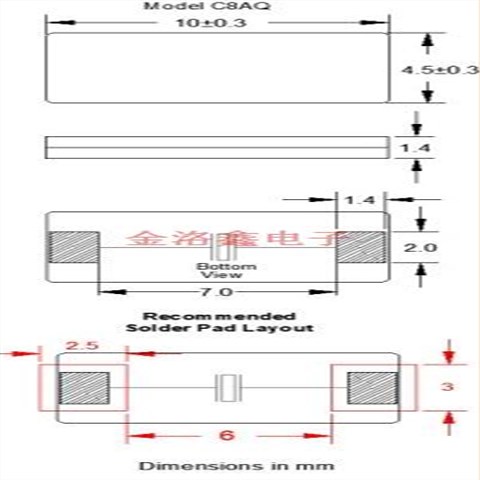

Size / Dimension 尺寸 10.00mm x 4.50mm 安裝方式 Mounting Style： Surface Mount

JLX-3

JLXNR-4

FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振

FC8AQ

JLXNR-1

FC8AQCCMC3.6864-T1,汽車級晶體,FC8AQ貼片晶振,FOX晶振

FC4SDCBMF10.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 10 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMF8.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 8 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4SDCBMF3.6864-T1 FOX無源晶振 HC49SDLF MHz Crystal 3.6864 MHz ±50ppm ±30ppm 20pF 200 Ohms
FKFSREIHM0.032768-T3 FOX無源晶振 FSRLF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 50 kOhms
FC4STCBMF20.0 FOX無源晶振 HC49SLF MHz Crystal 20 MHz ±50ppm ±30ppm 20pF 30 Ohms
FK135EIHM0.032768-T3 FOX無源晶振 K135 kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 70 kOhms
FC5BQCCMC12.0-T1 FOX無源晶振 C5BQ MHz Crystal 12 MHz ±30ppm ±30ppm 20pF 80 Ohms
FC5BQCCMM25.0-T1 FOX無源晶振 C5BQ MHz Crystal 25 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMM12.0-T1 FOX無源晶振 C5BQ MHz Crystal 12 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC7BSCCMM8.0-T1 FOX無源晶振 C7BS MHz Crystal 8 MHz ±30ppm ±30ppm 20pF 110 Ohms
FC7BSCCMM7.3728-T1 FOX無源晶振 C7BS MHz Crystal 7.3728 MHz ±30ppm ±30ppm 20pF 110 Ohms
FKFSXEIHM0.032768-T3 FOX無源晶振 FSXLF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 65 kOhms
FKFSREIBM0.032768-T3 FOX無源晶振 FSRLF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 6pF 50 kOhms
FC8AQCCMC3.6864-T1 FOX無源晶振 FC8AQ MHz Crystal 3.6864 MHz ±30ppm ±30ppm 20pF 150 Ohms
FC8AQCCMC4.0-T1 FOX無源晶振 FC8AQ MHz Crystal 4 MHz ±30ppm ±30ppm 20pF 150 Ohms
FC4SDCBMF11.0592-T1 FOX無源晶振 HC49SDLF MHz Crystal 11.0592 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMF25.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 25 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4SDCBMF16.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 16 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBMF12.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 12 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMF24.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 24 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4SDCBMM25.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 25 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4SDCBMF14.7456-T1 FOX無源晶振 HC49SDLF MHz Crystal 14.7456 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBMM8.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 8 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4SDCBMF7.3728-T1 FOX無源晶振 HC49SDLF MHz Crystal 7.3728 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4SDCBMF6.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 6 MHz ±50ppm ±30ppm 20pF 120 Ohms
FC4SDCBMF4.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 4 MHz ±50ppm ±30ppm 20pF 150 Ohms
FC3BQBBME12.0-T3 FOX無源晶振 FQ3225B MHz Crystal 12 MHz ±50ppm ±50ppm 20pF 120 Ohms
FC3BQBBMM25.0-T3 FOX無源晶振 FC3BQ MHz Crystal 25 MHz ±50ppm ±50ppm 20pF 80 Ohms
FKT38EIHD0.032768 FOX無源晶振 NC38LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 35 kOhms
FC4STCBMF10.0 FOX無源晶振 HC49SLF MHz Crystal 10 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4STCBMF25.0 FOX無源晶振 HC49SLF MHz Crystal 25 MHz ±50ppm ±30ppm 20pF 30 Ohms
FC4STCBMF16.0 FOX無源晶振 HC49SLF MHz Crystal 16 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4STCBMF12.0 FOX無源晶振 HC49SLF MHz Crystal 12 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4STCBMF11.0592 FOX無源晶振 HC49SLF MHz Crystal 11.0592 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4STCBMF8.0 FOX無源晶振 HC49SLF MHz Crystal 8 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4STCBMF7.3728 FOX無源晶振 HC49SLF MHz Crystal 7.3728 MHz ±50ppm ±30ppm 20pF 80 Ohms
FC4STCBLF3.579545 FOX無源晶振 HC49SLF MHz Crystal 3.579545 MHz ±50ppm ±30ppm 18pF 200 Ohms
FC4STCBMF4.0 FOX無源晶振 HC49SLF MHz Crystal 4 MHz ±50ppm ±30ppm 20pF 150 Ohms
FC4STCBMF3.6864 FOX無源晶振 HC49SLF MHz Crystal 3.6864 MHz ±50ppm ±30ppm 20pF 200 Ohms
FKT26EIHD0.032768 FOX無源晶振 NC26LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 50 kOhms
FKT38EIHQ0.032768 FOX無源晶振 NC38LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 35 kOhms
FC5BQCCMC25.0-T1 FOX無源晶振 C5BQ MHz Crystal 25 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMC24.0-T1 FOX無源晶振 C5BQ MHz Crystal 24 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMC20.0-T1 FOX無源晶振 C5BQ MHz Crystal 20 MHz ±30ppm ±30ppm 20pF 50 Ohms
FC5BQCCMC16.0-T1 FOX無源晶振 C5BQ MHz Crystal 16 MHz ±30ppm ±30ppm 20pF 80 Ohms
FC7BSCCMC8.0-T1 FOX無源晶振 C7BS MHz Crystal 8 MHz ±30ppm ±30ppm 20pF 110 Ohms
FC7BSCCMM6.0-T1 FOX無源晶振 C7BS MHz Crystal 6 MHz ±30ppm ±30ppm 20pF 80 Ohms
FC7BSCCMC7.3728-T1 FOX無源晶振 C7BS MHz Crystal 7.3728 MHz ±30ppm ±30ppm 20pF 110 Ohms
FC8AQCCMC6.0-T1 FOX無源晶振 FC8AQ MHz Crystal 6 MHz ±30ppm ±30ppm 20pF 150 Ohms
FC4SDCBMF12.288-T1 FOX無源晶振 HC49SDLF MHz Crystal 12.288 MHz ±50ppm ±30ppm 20pF 60 Ohms
FC4SDCBMM16.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 16 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBMF18.432-T1 FOX無源晶振 HC49SDLF MHz Crystal 18.432 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4SDCBLF3.579545-T1 FOX無源晶振 HC49SDLF MHz Crystal 3.579545 MHz ±50ppm ±30ppm 18pF 200 Ohms
FC4SDCBMM4.0-T1 FOX無源晶振 HC49SDLF MHz Crystal 4 MHz ±50ppm ±30ppm 20pF 150 Ohms
FC2BSBBMM16.0-T3 FOX無源晶振 FX252B MHz Crystal 16 MHz ±50ppm ±50ppm 20pF 200 Ohms
FC4STCBMF18.432 FOX無源晶振 HC49SLF MHz Crystal 18.432 MHz ±50ppm ±30ppm 20pF 40 Ohms
FC4STCBMF14.7456 FOX無源晶振 HC49SLF MHz Crystal 14.7456 MHz ±50ppm ±30ppm 20pF 40 Ohms
FKT26EIHQ0.032768 FOX無源晶振 NC26LF kHz Crystal (Tuning Fork) 32.768 kHz - ±20ppm 12.5pF 35 kOhms
FC3BACALI16.0-T3 FOX無源晶振 C3BA MHz Crystal 16 MHz ±100ppm ±30ppm 18pF 100 Ohms
FC3BACBDI16.0-T3 FOX無源晶振 C3BA MHz Crystal 16 MHz ±50ppm ±30ppm 8pF 100 Ohms
