NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振
頻率：27MHZ
尺寸：4.0×2.5×0.7mm
NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振,NKG晶振,S4M無源晶振,石英晶振,S4M27.0000F16E1Y-EXT晶振,4025mm晶振,四腳貼片晶振,SMD晶體,晶體諧振器,頻率27MHz,負載16pF,頻率容差10ppm,工作溫度-20~70°C,無鉛環保晶振,高精度晶振,抗震動晶振,6G通信設備晶振,無線局域網晶振,智能手機晶振,平板電腦晶振.
NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振,NKG晶振,S4M無源晶振,石英晶振,S4M27.0000F16E1Y-EXT晶振,4025mm晶振,四腳貼片晶振,SMD晶體,晶體諧振器,頻率27MHz,負載16pF,頻率容差10ppm,工作溫度-20~70°C,無鉛環保晶振,高精度晶振,抗震動晶振,6G通信設備晶振,無線局域網晶振,智能手機晶振,平板電腦晶振.
NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振特點：

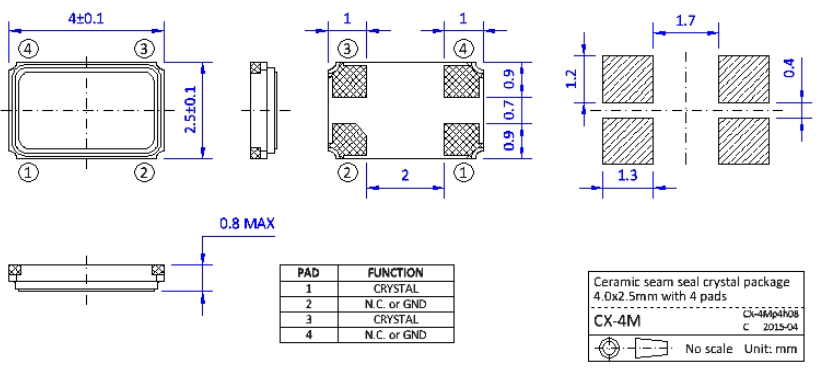

●微型包裝尺寸4.0 x 2.5x 0.7mm與4個墊
●優異的耐熱性和抗震性
●高可靠的縫封封裝，低老化
●符合AEC-Q200標準的汽車級產品可供選擇

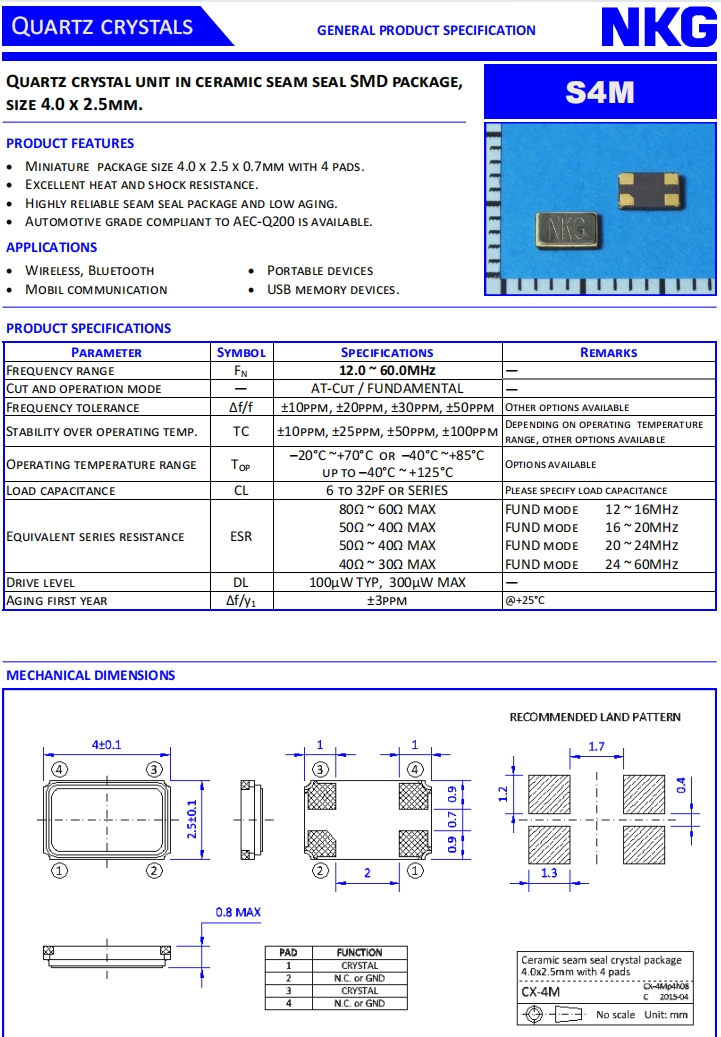

NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
27MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
16pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 24~ 60MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
