407F35E036M0000~美國CTS晶振~7050mm~36MHz

頻率：36MHz

尺寸：7.0mm x 5.0mm

407F35E036M0000~美國CTS晶振~7050mm~36MHz,407石英貼片晶振,407F35E036M0000晶振,美國CTS晶振,7050mm晶振,頻率36MHz,無源晶振,工作溫度-20~70°C,負載20pf,無線通訊設備晶振,寬帶接入晶振,WIFI晶振,測試和測量儀器晶振,手持式設備晶振,計算機外圍設備晶振.




訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

CTS

407F35E036M0000~美國CTS晶振~7050mm~36MHz,407石英貼片晶振,407F35E036M0000晶振,美國CTS晶振,7050mm晶振,頻率36MHz,無源晶振,工作溫度-20~70°C,負載20pf,無線通訊設備晶振,寬帶接入晶振,WIFI晶振,測試和測量儀器晶振,手持式設備晶振,計算機外圍設備晶振.

407F35E036M0000~美國CTS晶振~7050mm~36MHz 特征

1.標準7.0mm x 5.0mm陶瓷表面貼裝封裝 基本晶體設計

2.頻率范圍6 - 133MHz   頻率公差±30ppm標準  頻率穩定性±50ppm標準  工作溫度-40℃~ +85℃

3.穩定的頻率過溫和驅動電平  膠帶和卷軸包裝標準, EIA-481   符合RoHS/綠色標準

4.407型是一種接縫密封陶瓷封裝石英諧振器,具有優異的性能,性能廣泛的應用,包括;無線通信、寬帶接入、WLAN/WiMax/WIFI，測試和測量，便攜式設備和計算機外圍設備.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

407F35E036M0000~美國CTS晶振~7050mm~36MHz 參數

項目 數值
頻率 36MHz
操作模式 Fundamental
晶體切割 AT-Cut
工作溫度  -20°C to +70°C
保存溫度   -40°C to +100°C
頻率公差 @ +25°C ± 30PPM

 工作溫度范圍內的頻率穩定性 ( ref. to

+25°C)

± 50PPM
等效串聯電阻(R1) 40 Ω
  并聯電容 (C0) 5.0pF Typical, 7.0pF Maximum
負載電容 (CL) 20 pF
激勵功率 200  μW Max
老化 @ +25°C ±3ppm/yr Typical
絕緣電阻 500M Ohms @ DC 100V

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

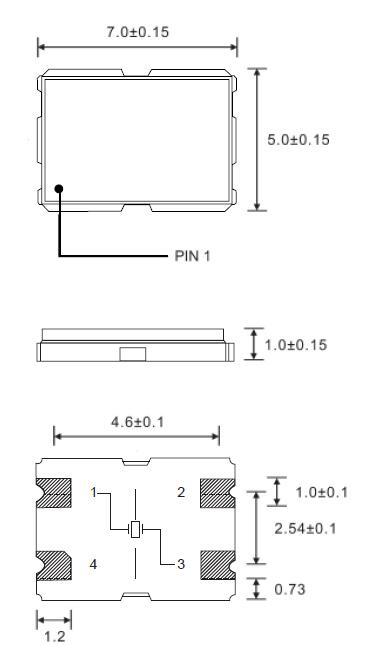

407F35E036M0000~美國CTS晶振~7050mm~36MHz 尺寸圖

407

原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 ESR電阻 工作溫度
407F35E022M1184 CTS 晶振 407 22.1184MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E029M4912 CTS 晶振 407 29.4912MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E016M3840 CTS 晶振 407 16.384MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E009M6000 CTS 晶振 407 9.6MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F39E008M0000 CTS 晶振 407 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407T35E050M0000 CTS 晶振 407 50MHz ±50ppm ±30ppm 20pF 100 Ohm -20°C ~ 70°C
407F35E036M0000 CTS 晶振 407 36MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E012M5000 CTS 晶振 407 12.5MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E016M6700 CTS 晶振 407 16.67MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35D007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
407F35D008M0000 CTS晶振 407 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D009M6000 CTS晶振 407 9.6MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D012M5000 CTS晶振 407 12.5MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
407F35D016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D016M3840 CTS晶振 407 16.384MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D016M6700 CTS晶振 407 16.67MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D022M1184 CTS晶振 407 22.1184MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D029M4912 CTS晶振 407 29.4912MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35D036M0000 CTS晶振 407 36MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407F35E007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
407F35E011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F39D007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
407F39D008M0000 CTS晶振 407 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D009M6000 CTS晶振 407 9.6MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D012M5000 CTS晶振 407 12.5MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F39D016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D016M3840 CTS晶振 407 16.384MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D016M6700 CTS晶振 407 16.67MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D022M1184 CTS晶振 407 22.1184MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D029M4912 CTS晶振 407 29.4912MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39D036M0000 CTS晶振 407 36MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39E007M3728 CTS晶振 407 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
407F39E009M6000 CTS晶振 407 9.6MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E011M0592 CTS晶振 407 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E012M5000 CTS晶振 407 12.5MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E014M3181 CTS晶振 407 14.31818MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
407F39E016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E016M3840 CTS晶振 407 16.384MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E016M6700 CTS晶振 407 16.67MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E016M9344 CTS晶振 407 16.9344MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E018M4320 CTS晶振 407 18.432MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E019M6800 CTS晶振 407 19.68MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E020M0000 CTS晶振 407 20MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E022M1184 CTS晶振 407 22.1184MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E024M0000 CTS晶振 407 24MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E024M5760 CTS晶振 407 24.576MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E027M0000 CTS晶振 407 27MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E029M4912 CTS晶振 407 29.4912MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E032M0000 CTS晶振 407 32MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F39E036M0000 CTS晶振 407 36MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407F35E008M0000 CTS晶振 407 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E010M0000 CTS晶振 407 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E012M0000 CTS晶振 407 12MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E014M7456 CTS晶振 407 14.7456MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
407F35E016M0000 CTS晶振 407 16MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E025M0000 CTS晶振 407 25MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F37D008M0000 CTS晶振 407 8MHz ±30ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
407F35E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
407F35D044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
407T35D050M0000 CTS晶振 407 50MHz ±50ppm ±30ppm 18pF 100 Ohm -20°C ~ 70°C
407F39D044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
407F39E044M7360 CTS晶振 407 44.736MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
407T39D050M0000 CTS晶振 407 50MHz ±50ppm ±30ppm 18pF 100 Ohm -40°C ~ 85°C
407T39E050M0000 CTS晶振 407 50MHz ±50ppm ±30ppm 20pF 100 Ohm -40°C ~ 85°C

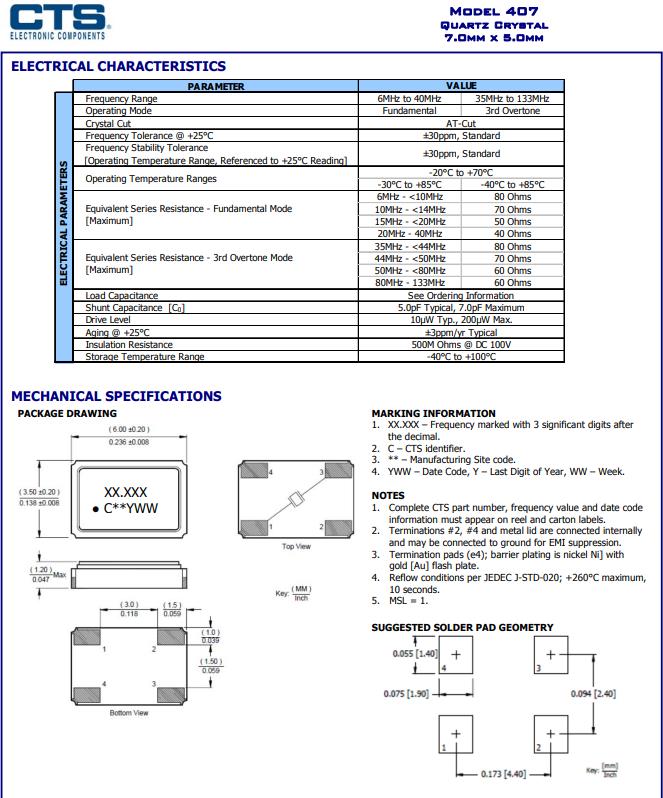

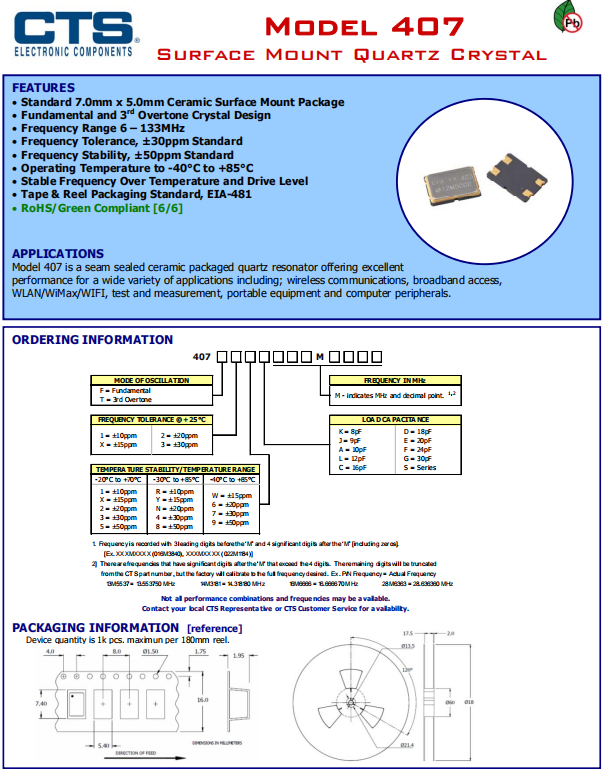

407F35E036M0000~美國CTS晶振~7050mm~36MHz 規格書與內部識別碼
