425F35B027M0000-13pF-2520晶振 -6G無線通信晶振

頻率：27MHz

尺寸：2.5mm x 2.0mm

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振,美國CTS進口晶振,425無源晶振,425F35B027M0000晶振,頻率27MHz,負載13pF,頻率穩定性30ppm,工作溫度-20~70°C,四腳貼片晶振,超小型晶振,2520晶振,6G無線通信晶振,工業物聯網應用晶振,微控制器晶振,計算機外圍設備晶振.






訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

CTS

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振,美國CTS進口晶振,425無源晶振,425F35B027M0000晶振,頻率27MHz,負載13pF,頻率穩定性30ppm,工作溫度-20~70°C,四腳貼片晶振,超小型晶振,2520晶振,6G無線通信晶振,工業物聯網應用晶振,微控制器晶振,計算機外圍設備晶振.

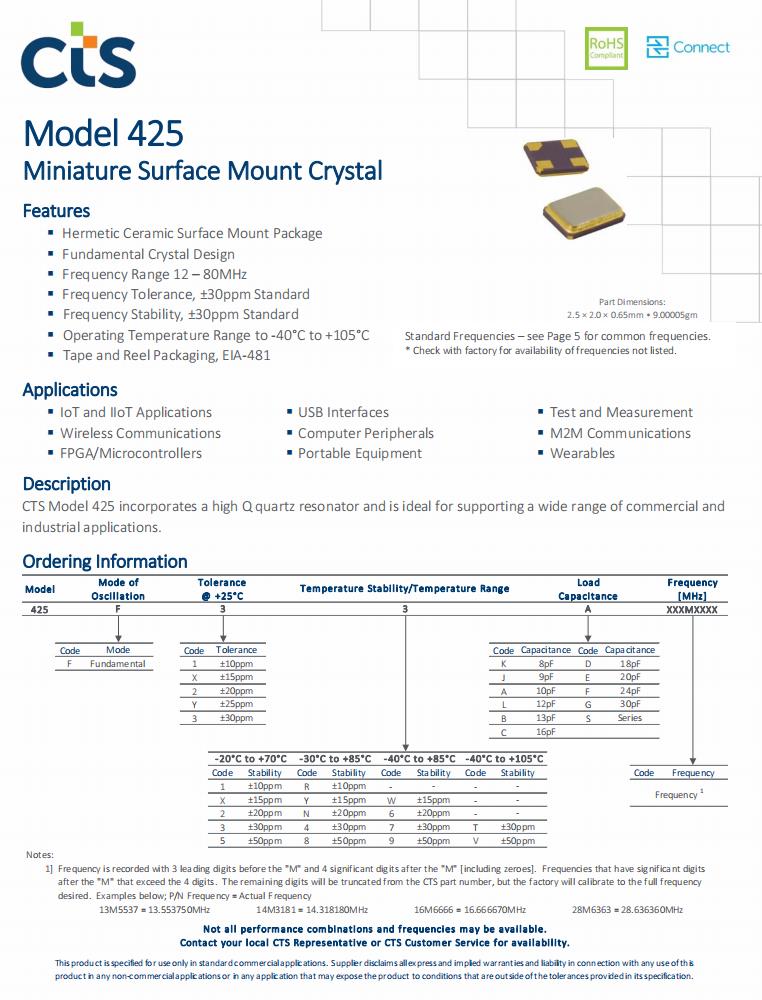

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振特征

•密封陶瓷表面貼裝封裝

•基本晶體設計

•頻率范圍12 - 80MHz

•頻率公差，±30ppm標準

•頻率穩定性，±30ppm標準

•工作溫度范圍-40℃~ +105℃

•磁帶和卷軸包裝，EIA-481

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

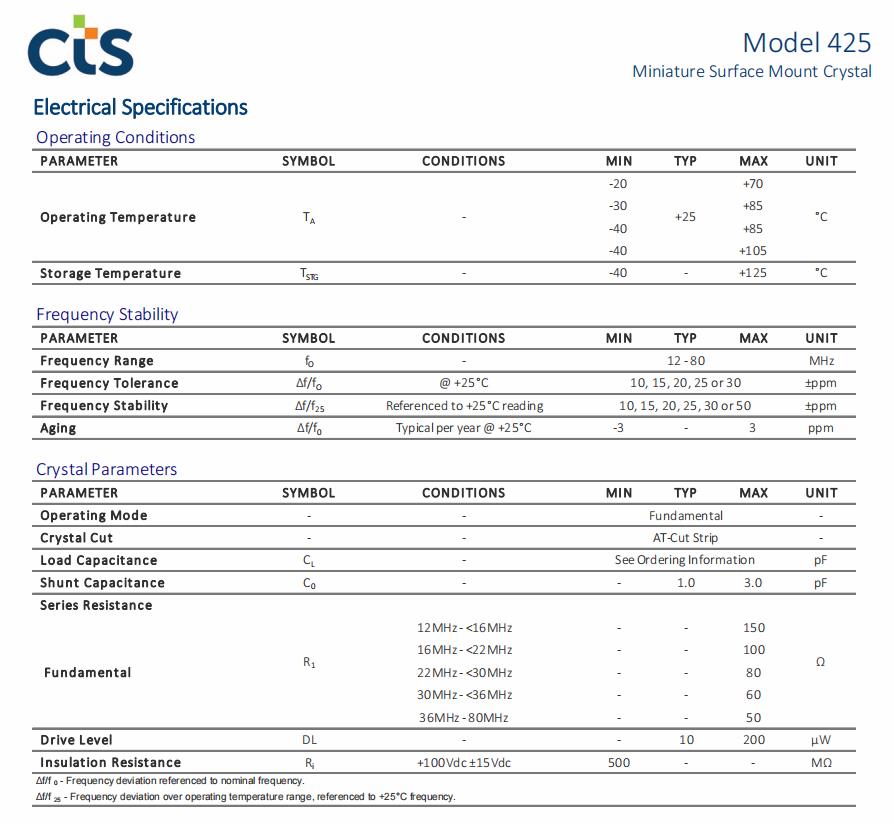

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振參數

項目 數值
頻率 27MHz
操作模式 Fundamental
晶體切割 AT-Cut
工作溫度  -20°C to +70°C
保存溫度   -40°C to +125°C
頻率公差 @ +25°C ± 30PPM

 工作溫度范圍內的頻率穩定性 ( ref. to

+25°C)

± 50PPM
等效串聯電阻(R1) 80 Ω
  并聯電容 (C0) 1.0pF Typical, 3.0pF Maximum
負載電容 (CL) 13pF
激勵功率 200 μW Max
老化 @ +25°C ±3ppm/yr Typical
絕緣電阻 500MΩ  @ +100Vdc ±15Vdc

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

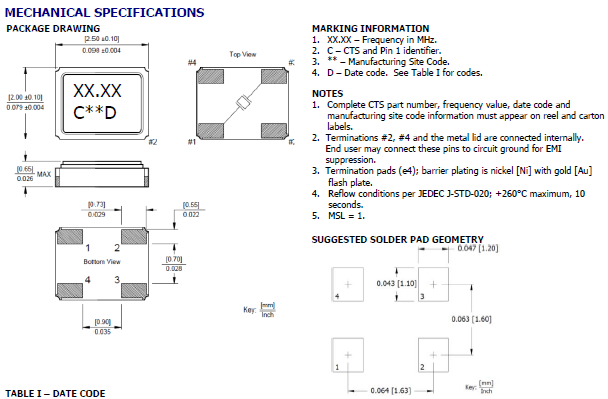

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振 尺寸圖

425 2520

原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 ESR電阻 工作溫度
425F22A024M5760 CTS 晶振 425 24.576MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F22A016M3676 CTS 晶振 425 16.3676MHz ±20ppm ±20ppm 10pF 100 Ohm -20°C ~ 70°C
425F22A025M0000 CTS 晶振 425 25MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F22A027M0000 CTS 晶振 425 27MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F22A030M0000 CTS 晶振 425 30MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F22A048M0000 CTS 晶振 425 48MHz ±20ppm ±20ppm 10pF 60 Ohm -20°C ~ 70°C
425F35E027M0000 CTS 晶振 425 27MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
425F35B020M0000 CTS 晶振 425 20MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35B024M0000 CTS 晶振 425 24MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35B025M0000 CTS 晶振 425 25MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35B027M0000 CTS 晶振 425 27MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35B016M0000 CTS 晶振 425 16MHz ±50ppm ±30ppm 13pF 100 Ohm -20°C ~ 70°C
425F22A024M0000 CTS 晶振 425 24MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F22A020M0000 CTS 晶振 425 20MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F35B040M0000 CTS晶振 425 40MHz ±50ppm ±30ppm 13pF 60 Ohm -20°C ~ 70°C
425F35B026M0000 CTS晶振 425 26MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35B038M4000 CTS晶振 425 38.4MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35E016M0000 CTS晶振 425 16MHz ±50ppm ±30ppm 20pF 100 Ohm -20°C ~ 70°C
425F35E020M0000 CTS晶振 425 20MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
425F35E024M0000 CTS晶振 425 24MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
425F35E025M0000 CTS晶振 425 25MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
425F35E030M0000 CTS晶振 425 30MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
425F35E040M0000 CTS晶振 425 40MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
425F39B016M0000 CTS晶振 425 16MHz ±50ppm ±30ppm 13pF 100 Ohm -40°C ~ 85°C
425F39B020M0000 CTS晶振 425 20MHz ±50ppm ±30ppm 13pF 80 Ohm -40°C ~ 85°C
425F39B024M0000 CTS晶振 425 24MHz ±50ppm ±30ppm 13pF 80 Ohm -40°C ~ 85°C
425F39B025M0000 CTS晶振 425 25MHz ±50ppm ±30ppm 13pF 80 Ohm -40°C ~ 85°C
425F39B027M0000 CTS晶振 425 27MHz ±50ppm ±30ppm 13pF 80 Ohm -40°C ~ 85°C
425F39B030M0000 CTS晶振 425 30MHz ±50ppm ±30ppm 13pF 80 Ohm -40°C ~ 85°C
425F39B040M0000 CTS晶振 425 40MHz ±50ppm ±30ppm 13pF 60 Ohm -40°C ~ 85°C
425F39E016M0000 CTS晶振 425 16MHz ±50ppm ±30ppm 20pF 100 Ohm -40°C ~ 85°C
425F39E020M0000 CTS晶振 425 20MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
425F39E024M0000 CTS晶振 425 24MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
425F39E025M0000 CTS晶振 425 25MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
425F39E027M0000 CTS晶振 425 27MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
425F39E030M0000 CTS晶振 425 30MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
425F39E040M0000 CTS晶振 425 40MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
425F35B026\M0000 CTS晶振 425 26MHz ±50ppm ±30ppm 13pF 80 Ohm -20°C ~ 70°C
425F35E026M0000 CTS晶振 425 26MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
425F22A016M0000 CTS晶振 425 16MHz ±20ppm ±20ppm 10pF 100 Ohm -20°C ~ 70°C
425F22A016M3840 CTS晶振 425 16.384MHz ±20ppm ±20ppm 10pF 100 Ohm -20°C ~ 70°C
425F22A018M4320 CTS晶振 425 18.432MHz ±20ppm ±20ppm 10pF 100 Ohm -20°C ~ 70°C
425F22A019M2000 CTS晶振 425 19.2MHz ±20ppm ±20ppm 10pF 100 Ohm -20°C ~ 70°C
425F22A022M1184 CTS晶振 425 22.1184MHz ±20ppm ±20ppm 10pF 80 Ohm -20°C ~ 70°C
425F22A040M0000 CTS晶振 425 40MHz ±20ppm ±20ppm 10pF 60 Ohm -20°C ~ 70°C
425F37B016M0000 CTS晶振 425 16MHz ±30ppm ±30ppm 13pF 100 Ohm -40°C ~ 85°C
425F27C028M6360 CTS晶振 425 28.636MHz ±30ppm ±20ppm 16pF 80 Ohm -40°C ~ 85°C
425F11A016M0000 CTS晶振 425 16MHz ±10ppm ±10ppm 10pF 100 Ohm -20°C ~ 70°C
425F11A018M4320 CTS晶振 425 18.432MHz ±10ppm ±10ppm 10pF 100 Ohm -20°C ~ 70°C
425F11A019M2000 CTS晶振 425 19.2MHz ±10ppm ±10ppm 10pF 100 Ohm -20°C ~ 70°C
425F11A019M6608 CTS晶振 425 19.6608MHz ±10ppm ±10ppm 10pF 100 Ohm -20°C ~ 70°C
425F11A020M0000 CTS晶振 425 20MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A024M0000 CTS晶振 425 24MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A024M5760 CTS晶振 425 24.576MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A025M0000 CTS晶振 425 25MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A026M0000 CTS晶振 425 26MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A027M0000 CTS晶振 425 27MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A028M6363 CTS晶振 425 28.63636MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A030M0000 CTS晶振 425 30MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A032M0000 CTS晶振 425 32MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A036M0000 CTS晶振 425 36MHz ±10ppm ±10ppm 10pF 80 Ohm -20°C ~ 70°C
425F11A040M0000 CTS晶振 425 40MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
425F11K016M0000 CTS晶振 425 16MHz ±10ppm ±10ppm 8pF 100 Ohm -20°C ~ 70°C
425F11K018M4320 CTS晶振 425 18.432MHz ±10ppm ±10ppm 8pF 100 Ohm -20°C ~ 70°C
425F11K019M2000 CTS晶振 425 19.2MHz ±10ppm ±10ppm 8pF 100 Ohm -20°C ~ 70°C
425F11K019M6608 CTS晶振 425 19.6608MHz ±10ppm ±10ppm 8pF 100 Ohm -20°C ~ 70°C
425F11K020M0000 CTS晶振 425 20MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K024M0000 CTS晶振 425 24MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K024M5760 CTS晶振 425 24.576MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K025M0000 CTS晶振 425 25MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K026M0000 CTS晶振 425 26MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K027M0000 CTS晶振 425 27MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K028M6363 CTS晶振 425 28.63636MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K030M0000 CTS晶振 425 30MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K032M0000 CTS晶振 425 32MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K036M0000 CTS晶振 425 36MHz ±10ppm ±10ppm 8pF 80 Ohm -20°C ~ 70°C
425F11K040M0000 CTS晶振 425 40MHz ±10ppm ±10ppm 8pF 60 Ohm -20°C ~ 70°C
425F11A048M0000 CTS晶振 425 48MHz ±10ppm ±10ppm 10pF 60 Ohm -20°C ~ 70°C
425F11K048M0000 CTS晶振 425 48MHz ±10ppm ±10ppm 8pF 60 Ohm -20°C ~ 70°C
425F16A032M0000 CTS晶振 425 32MHz ±20ppm ±10ppm 10pF 80 Ohm -40°C ~ 85°C
