TXC汽車晶振,行車記錄儀晶振,AA-8.000MALV-T晶振
頻率：8MHZ
尺寸：5032mm

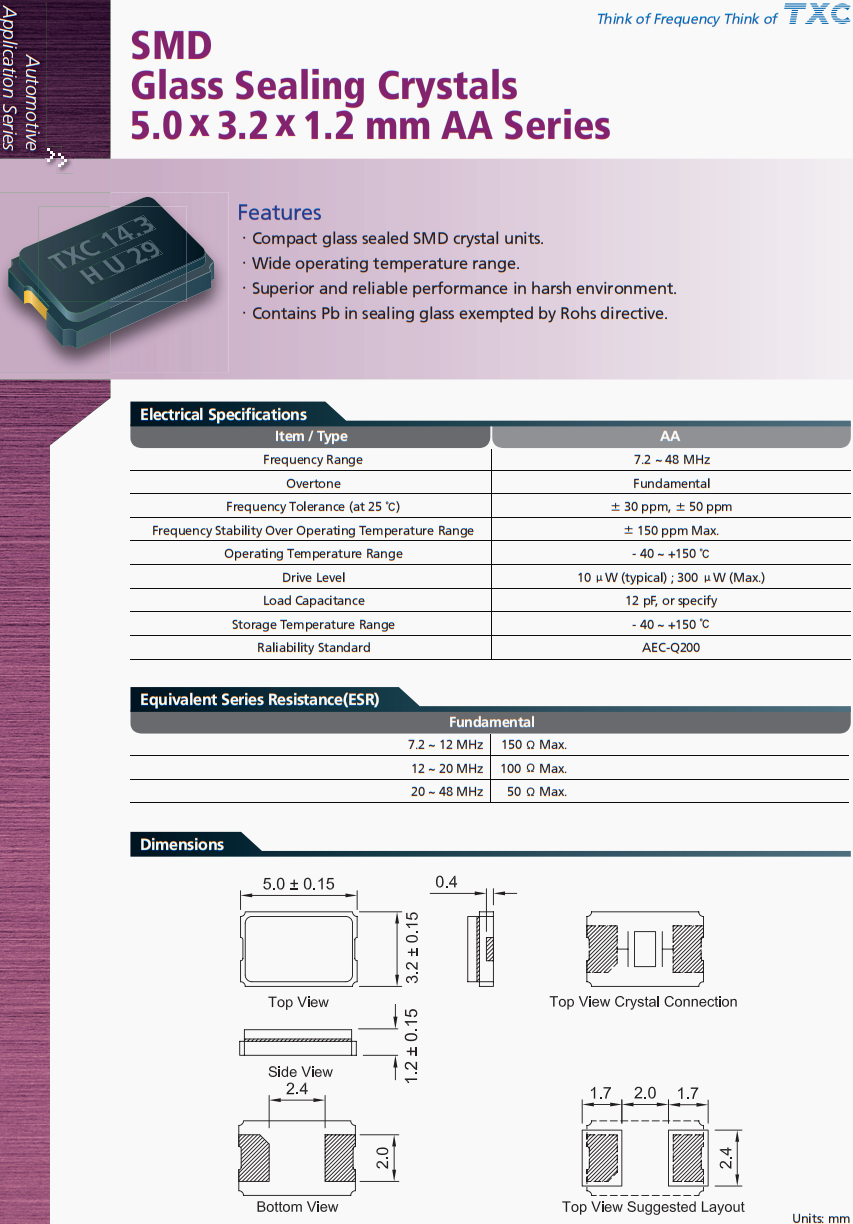

TXC汽車晶振,行車記錄儀晶振,AA-8.000MALV-T晶振，臺灣TXC晶振公司，晶技晶振，無源晶振，5032晶振，AA-8.000MALV-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，二腳晶振，石英晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振AA系列SMD，玻璃密封晶體，5.0 x 3.2 x 1.2 mm ，功能。緊湊的玻璃密封SMD晶體單元。工作溫度范圍廣。在惡劣環境下性能優越可靠。不受Rohs指令限制的密封玻璃含鉛。
訂購熱線：0755-27837162
TXC汽車晶振,行車記錄儀晶振,AA-8.000MALV-T晶振，臺灣TXC晶振公司，晶技晶振，有無源晶振，5032晶振，AA-8.000MALV-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，二腳晶振，陶瓷晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振AA系列SMD，玻璃密封晶體，5.0 x 3.2 x 1.2 mm ，功能。緊湊的玻璃密封SMD晶體單元。工作溫度范圍廣。在惡劣環境下性能優越可靠。不受Rohs指令限制的密封玻璃含鉛。
TXC汽車晶振,行車記錄儀晶振,AA-8.000MALV-T晶振
型號
AA
頻率范圍
7.2 ~ 48 MHz
工作模式
Fundamental
頻率容差
± 30 ppm, ± 50 ppm
溫度范圍內的頻率穩定度
± 150 ppm Max.
工作溫度
- 40 ~ +150 ℃
驅動電平
10 μW (typical) ; 300 μW (Max.)
負載電容
12 pF, or specify
儲存溫度范圍
- 40 ~ +150 ℃
可靠性標準
AEC-Q200
TXC汽車晶振,行車記錄儀晶振,AA-8.000MALV-T晶振
| TXC原廠編碼 | 生產商品牌 | Series | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 | Operating Temperature |
| AA-8.000MALV-T | TXC晶振 | AA | 8MHz | ±150ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| AA-8.192MAGE-T | TXC晶振 | AA | 8.192MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-25.000MALE-T | TXC晶振 | AA | 25MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-16.000MALE-T | TXC晶振 | AA | 16MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-12.000MAGE-T | TXC晶振 | AA | 12MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-10.000MAGY-T | TXC晶振 | AA | 10MHz | ±50ppm | ±30ppm | 7pF | -40°C ~ 85°C |
| AA-28.63636MAGK-T | TXC晶振 | AA | 28.63636MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-14.31818MAGD-T | TXC晶振 | AA | 14.31818MHz | ±50ppm | ±30ppm | 11pF | -40°C ~ 85°C |
| AA-20.000MAGE-T | TXC晶振 | AA | 20MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-27.000MAGK-T | TXC晶振 | AA | 27MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-37.050MAGV-T | TXC晶振 | AA | 37.05MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-12.288MAGV-T | TXC晶振 | AA | 12.288MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-10.000MAGE-T | TXC晶振 | AA | 10MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-10.000MAME-T | TXC晶振 | AA | 10MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-12.000MAHE-T | TXC晶振 | AA | 12MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-12.000MAPQ-T | TXC晶振 | AA | 12MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
| AA-13.4916MAHQ-T | TXC晶振 | AA | 13.4916MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-14.31818MAGK-T | TXC晶振 | AA | 14.31818MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-16.000MAME-T | TXC晶振 | AA | 16MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-16.000MBNV-T | TXC晶振 | AA | 16MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| AA-20.000MAHE-T | TXC晶振 | AA | 20MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-20.000MALE-T | TXC晶振 | AA | 20MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-20.000MBNV-T | TXC晶振 | AA | 20MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| AA-24.000MAHJ-T | TXC晶振 | AA | 24MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| AA-24.000MDHK-T | TXC晶振 | AA | 24MHz | ±30ppm | ±20ppm | 20pF | -40°C ~ 85°C |
| AA-25.000MANK-T | TXC晶振 | AA | 25MHz | ±50ppm | ±30ppm | 20pF | -40°C ~ 125°C |
| AA-27.000MAHQ-T | TXC晶振 | AA | 27MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-48.000MAHE-T | TXC晶振 | AA | 48MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-7.200MBOE-T | TXC晶振 | AA | 7.2MHz | ±100ppm | ±50ppm | 12pF | -40°C ~ 105°C |
| AA-8.000MAGJ-T | TXC晶振 | AA | 8MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| AA-8.000MAHI-T | TXC晶振 | AA | 8MHz | ±30ppm | ±30ppm | 16pF | -40°C ~ 85°C |
| AA-8.000MAHQ-T | TXC晶振 | AA | 8MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-8.000MAME-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-8.000MAMJ-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 125°C |
| AA-8.000MAMV-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| AA-8.000MBOV-T | TXC晶振 | AA | 8MHz | ±100ppm | ±50ppm | 8pF | -40°C ~ 105°C |
| AA-8.000MDHV-T | TXC晶振 | AA | 8MHz | ±30ppm | ±20ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MDMK-T | TXC晶振 | AA | 8MHz | ±100ppm | ±20ppm | 20pF | -40°C ~ 125°C |
| AA-8.192MALE-T | TXC晶振 | AA | 8.192MHz | ±150ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| AA-9.000MAHV-T | TXC晶振 | AA | 9MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-9.216MAHH-T | TXC晶振 | AA | 9.216MHz | ±30ppm | ±30ppm | 15pF | -40°C ~ 85°C |
| AA-9.216MAHQ-T | TXC晶振 | AA | 9.216MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| AA-9.84375MAHE-T | TXC晶振 | AA | 9.8435MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-10.000MAHV-T | TXC晶振 | AA | 10MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-13.560MAHE-T | TXC晶振 | AA | 13.56MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-15.000MAHV-T | TXC晶振 | AA | 15MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-16.000MAHV-T | TXC晶振 | AA | 16MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-16.000MANQ-T | TXC晶振 | AA | 16MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| AA-24.000MAHK-T | TXC晶振 | AA | 24MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-24.576MAHE-T | TXC晶振 | AA | 24.576MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-24.576MAHV-T | TXC晶振 | AA | 24.576MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-28.63636MAHK-T | TXC晶振 | AA | 28.636MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-37.050MAHV-T | TXC晶振 | AA | 37.05MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-37.209375MAHE-T | TXC晶振 | AA | 37.209MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-42.000MAHV-T | TXC晶振 | AA | 42MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MAGV-T | TXC晶振 | AA | 8MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MAHV-T | TXC晶振 | AA | 8MHz | ±30ppm | ±30ppm | 8pF | -40°C ~ 85°C |
| AA-8.000MAMK-T | TXC晶振 | AA | 8MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 125°C |
| AA-8.192MAHE-T | TXC晶振 | AA | 8.192MHz | ±30ppm | ±30ppm | 12pF | -40°C ~ 85°C |
| AA-16.000MAHK-T | TXC晶振 | AA | 16MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| AA-16.000MDHK-T | TXC晶振 | AA | 16MHz | ±30ppm | ±20ppm | 20pF | -40°C ~ 85°C |
| AA-10.000MBNV-T | TXC晶振 | AA | 10MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
