CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振

頻率：27MHZ

尺寸：13.2mm x 5mm

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振,CTS晶振,歐美進口晶振,ATSSMGL石英貼片晶振,GL270F23IDT晶振,無源晶振,頻率27MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,高穩定性晶振,低成本晶振,6G網絡應用晶振,通訊設備晶振,數碼相機晶振,工業設備晶振.






訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

CTS

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振,CTS晶振,歐美進口晶振,ATSSMGL石英貼片晶振,GL270F23IDT晶振,無源晶振,頻率27MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,高穩定性晶振,低成本晶振,6G網絡應用晶振,通訊設備晶振,數碼相機晶振,工業設備晶振.

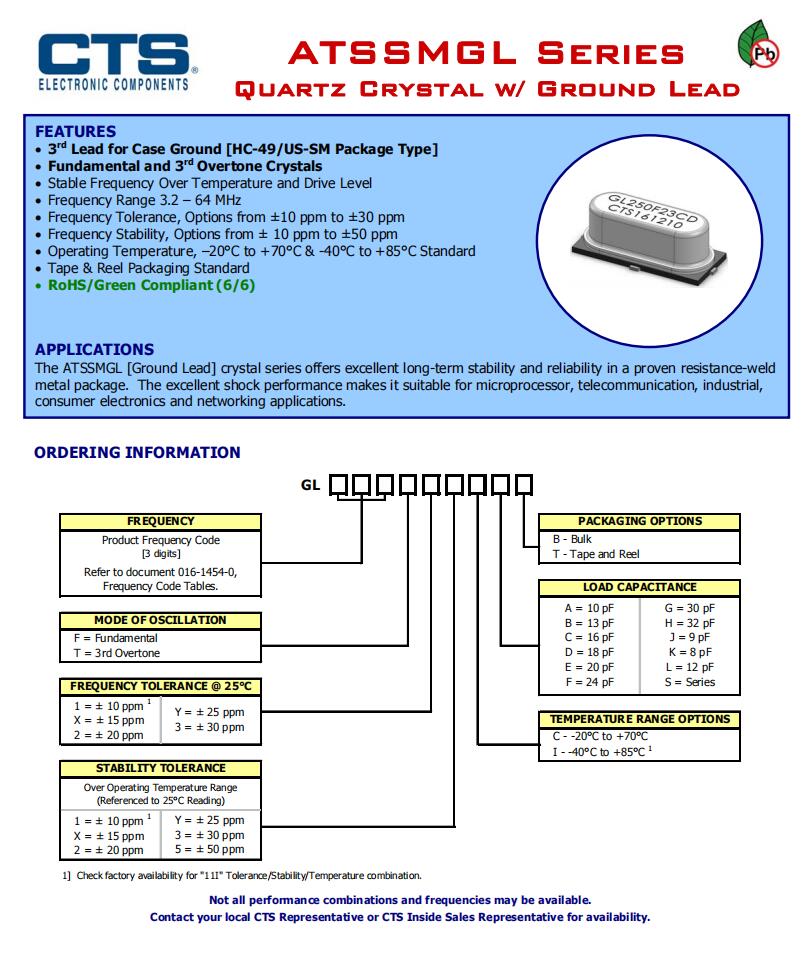

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振特征

•外殼接地的第三根導線[HC-49/US-SM封裝類型]

•基本和第三泛音晶體

•穩定的頻率超過溫度和驅動電平

•頻率范圍3.2 - 64MHz

•頻率公差，從±10ppm到±30ppm的選項

•頻率穩定性，從±10ppm到±50ppm的選項

•工作溫度，-20°C至+70°C和-40°C至+85°C標準

•膠帶和卷軸包裝可用

•符合RoHS/綠色標準[6/6]

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

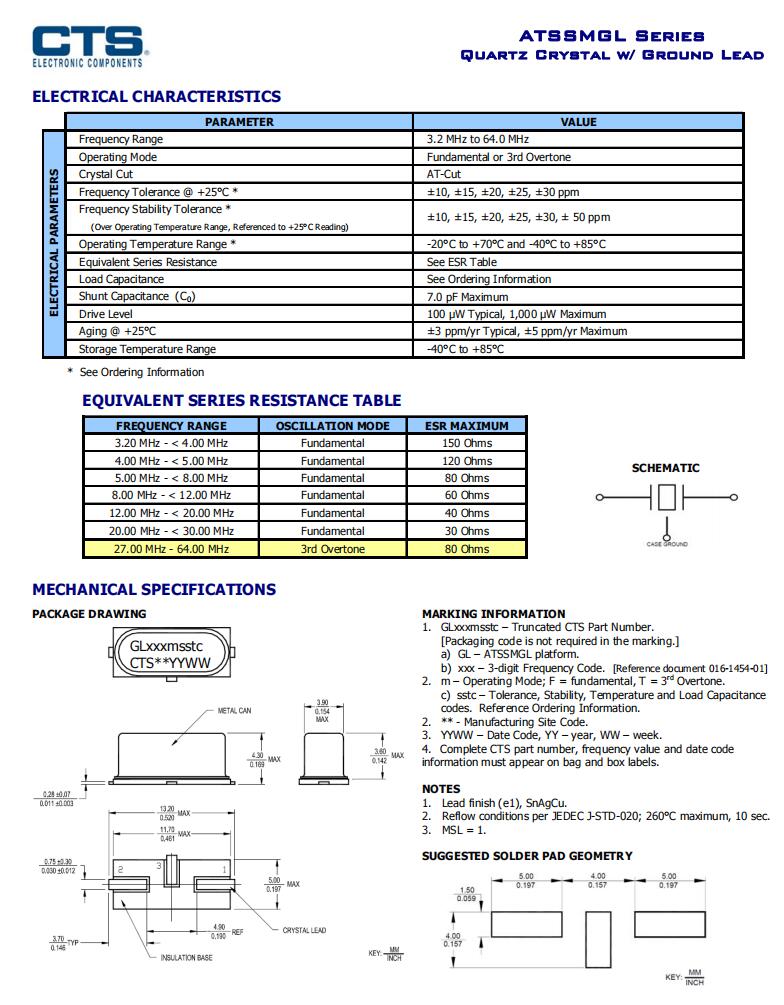

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振參數表

項目 數值
頻率 27MHz
操作模式 Fundamental
晶體切割 AT-Cut
工作溫度  -40°C to +85°C
保存溫度   -40°C to +85°C
頻率公差 @ +25°C ± 20PPM

 工作溫度范圍內的頻率穩定性 ( ref. to

+25°C)

± 30PPM
等效串聯電阻(R1) 30 Ω
  并聯電容 (C0) 7.0pF Maximum
負載電容 (CL) 18pF
激勵功率 1000 μW Max
老化 @ +25°C ±3ppm/yr Typical

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

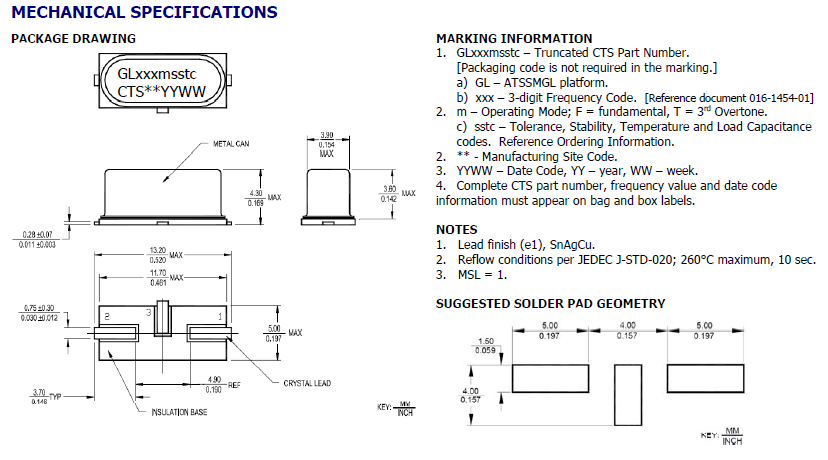

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振尺寸圖

ATSSMGL 12.3-5

ATSSMGL

ATSSMGL-1

原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 ESR電阻 工作溫度
GL240F23CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F23CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F33CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F33CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35CDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F35CET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35IDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL240F35IET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL24CF23CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF23CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF33CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF33CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35CDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF35CET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35IDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL24CF35IET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL250F23CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F23CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F33CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F33CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35CDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F35CET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35IDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL250F35IET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL270F23CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F23CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F33CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F33CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35CDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F35CET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35IDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL270F35IET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL042F23CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F23CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F33CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F33CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35CDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F35CET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35IDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL042F35IET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL044F23CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F23CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F33CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F33CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35CDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F35CET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35IDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL044F35IET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL045F23CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F23CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F33CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F33CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35CDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F35CET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35IDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL045F35IET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL049F23CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F23CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F33CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F33CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35CDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F35CET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35IDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL049F35IET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL050F23CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F23CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F33CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F33CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35CDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F35CET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35IDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL050F35IET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL060F23CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F23CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F33CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F33CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35CDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F35CET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35IDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL060F35IET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL061F23CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F23CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F33CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F33CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35CDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F35CET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35IDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL061F35IET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL073F23CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F23CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F33CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F33CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35CDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F35CET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35IDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL073F35IET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL080F23CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F23CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F33CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F33CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35CDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F35CET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35IDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL080F35IET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL092F23CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F23CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F33CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F33CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35CDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F35CET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35IDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL092F35IET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL098F23CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F23CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F33CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F33CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35CDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F35CET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35IDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL098F35IET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL100F23CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F23CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F33CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F33CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35CDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F35CET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35IDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL100F35IET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL102F23CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F23CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F33CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F33CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35CDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F35CET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35IDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL102F35IET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL111F23CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F23CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F33CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F33CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35CDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F35CET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35IDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL111F35IET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL120F23CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F23CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F33CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F33CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35CDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F35CET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35IDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL120F35IET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL122F23CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F23CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F33CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F33CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35CDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F35CET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35IDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL122F35IET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL130F23CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F23CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F33CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F33CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35CDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F35CET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35IDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL130F35IET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL135F23CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F23CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F33CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F33CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35CDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F35CET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35IDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL135F35IET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL143F23CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F23CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F33CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F33CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35CDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F35CET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35IDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL143F35IET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL147F23CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F23CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F33CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F33CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F35CDT CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F35CET CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C







JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.mimatsu-osaka.com/

相關的產品 / Related Products

X32-12.000-12-10/20I,Mercury晶振,網絡應用晶振
X32-12.000-12-10/20I,Mercury晶振,網絡應用晶振
X32-12.000-12-10/20I,Mercury晶振,網絡應用晶振,作為臺灣瑪居禮晶振旗下網絡應用專用晶振,X32-12.000-12-10/20I以高頻穩定性與網絡適配性為核心優勢:通過先進的晶體切割與封裝工藝,實現12.000MHz高頻下的低相位噪聲,減少時鐘信號抖動,提升網絡數據傳輸的完整性;±10ppm的常溫頻率容差遠超普通民用晶振,可滿足網絡設備對時鐘精度的嚴苛要求.此外,產品優化了等效串聯電阻(ESR),在高頻工作狀態下仍能保持低信號損耗,適配網絡設備長時間高負載運行,特別適合企業級路由器,數據中心交換機,工業網關等對穩定性要求極高的網絡場景.
Q8.0-JXG53P4-12-30/50-T1-LF,陶瓷晶振,5032晶體諧振器
Q8.0-JXG53P4-12-30/50-T1-LF,陶瓷晶振,5032晶體諧振器
Q8.0-JXG53P4-12-30/50-T1-LF,陶瓷晶振,5032晶體諧振器,具備晶體諧振器功能,核心工作頻率穩定為8.0MHz,專為對時鐘信號有基礎需求且追求成本效益的電子設備設計.產品擁有±30ppm(常溫)與±50ppm(全溫域)的頻率容差,搭配T1型標準引腳配置及LF低功耗特性,無需額外驅動電路即可直接適配多數微控制器(MCU),小家電控制模塊的時鐘輸入接口,簡化硬件設計,廣泛適用于小型家電,消費類電子玩具,普通傳感器等場景.
Q19.2-JXS32-12-10/20-T1-LF,Jauch無源晶振,3225石英晶振
Q19.2-JXS32-12-10/20-T1-LF,Jauch無源晶振,3225石英晶振
Q19.2-JXS32-12-10/20-T1-LF,Jauch無源晶振,3225石英晶振,作為歐美Jauch晶振旗下高穩定性無源晶振產品,Q19.2-JXS32-12-10/20-T1-LF以高精度頻率控制為核心優勢:通過優化的石英晶體切割工藝,實現±10ppm的初始頻率偏差,在-40℃~85℃工業溫域內仍能保持±20ppm的穩定輸出,有效避免溫度波動導致的設備時鐘漂移.同時,3225超小封裝設計滿足小型化設備的布局需求,LF低功耗特性可降低系統整體能耗,特別適合物聯網傳感器,便攜式醫療設備等對穩定性與功耗雙重敏感的應用場景.

JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路
