ECS-129.6-18-4X ,12.96MHz,18pf,-10~70°C

頻率：12.96MHZ

尺寸：11.35×4.65mm

ECS-129.6-18-4X ,12.96MHz,18pf,-10~70°C,ECS-129.6-18-4X晶振 ,頻率12.96MHz,負載18pf,-工作溫度10~70°C,美國伊西斯晶振,歐美進口晶振,插件晶振,無源晶振,HC-49USX石英晶體,耐高溫晶振,智能影音系統晶振,數字電表晶振,物聯網晶振,攝像頭晶振,汽車電子晶振.




訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

ECS-129.6-18-4X ,12.96MHz,18pf,-10~70°C,ECS-129.6-18-4X晶振 ,頻率12.96MHz,負載18pf,-工作溫度10~70°C,美國伊西斯晶振,歐美進口晶振,插件晶振,無源晶振,HC-49USX石英晶體,耐高溫晶振,智能影音系統晶振,數字電表晶振,物聯網晶振,攝像頭晶振,汽車電子晶振.

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

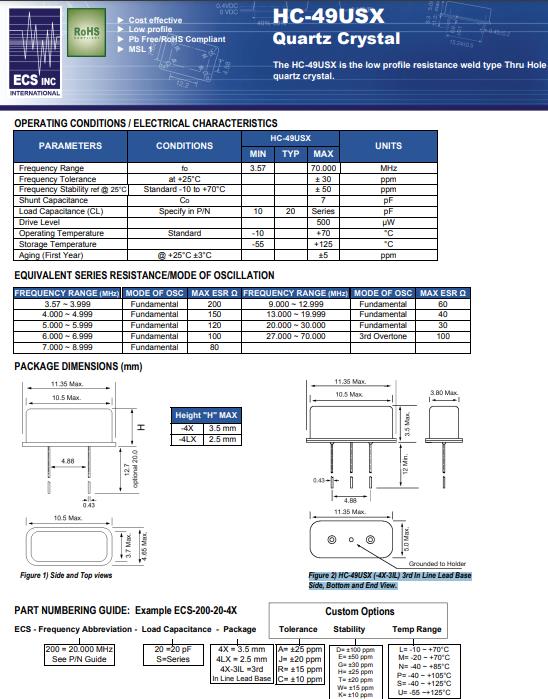

ECS-129.6-18-4X ,12.96MHz,18pf,-10~70°C  參數表

參數 條件 HC-49USX
頻率
12.96MHz
頻率公差  at +25°C ± 30PPM
頻率穩定性 -40°C to +85°C ± 50PPM
負載電容 Specify in P/N 18pF
激勵功率
500 μW Max
工作溫度
-10°C to +70°C
保存溫度
-55°C to +125°C
并聯電容
Co
7.0 pF
老化 @ +25°C ±3°C ±5ppm

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

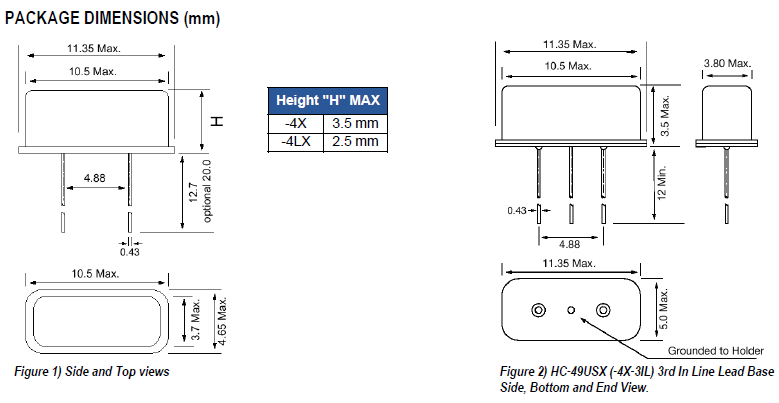

ECS-129.6-18-4X ,12.96MHz,18pf,-10~70°C  尺寸圖

hc-49usx 11.35_4.65

ECS原廠編碼 型號 頻率 頻率穩定度 頻率偏差 負載電容 工作溫度
ECS-035-18-4X-DU HC-49USX 3.579545MHz ±100ppm ±30ppm 18pF -55°C ~ 125°C
ECS-040-20-4X-DU HC-49USX 4MHz ±100ppm ±30ppm 20pF -55°C ~ 125°C
ECS-060-20-4X-DU HC-49USX 6MHz ±100ppm ±30ppm 20pF -55°C ~ 125°C
ECS-080-20-4X-DU HC-49USX 8MHz ±100ppm ±30ppm 20pF -55°C ~ 125°C
ECS-100-18-4X HC-49USX 10MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-100-20-4X-DU HC-49USX 10MHz ±100ppm ±30ppm 20pF -55°C ~ 125°C
ECS-100-S-4X HC-49USX 10MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-102.4-18-4XEN HC-49USX 10.24MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-107.3-S-4X HC-49USX 10.738635MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-110.5-18-4XEN HC-49USX 11.0592MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-110.5-20-4X HC-49USX 11.0592MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-110.5-32-4X HC-49USX 11.0592MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-110.5-S-4X HC-49USX 11.0592MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-110-S-4X HC-49USX 11MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-115.2-S-4X HC-49USX 11.52MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-119.8-S-4X HC-49USX 11.98135MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-120-18-4X-DU HC-49USX 12MHz ±100ppm ±30ppm 18pF -55°C ~ 125°C
ECS-120-18-4XEN HC-49USX 12MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-120-20-4X HC-49USX 12MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-120-32-4X HC-49USX 12MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-120-S-4X HC-49USX 12MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-122.8-18-4XEN HC-49USX 12.288MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-122.8-20-4X HC-49USX 12.288MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-122.8-S-4X HC-49USX 12.288MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-129.6-18-4X HC-49USX 12.96MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-135-18-4XEN HC-49USX 13.5168MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-143-18-4XEN HC-49USX 14.31818MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-143-20-4X HC-49USX 14.31818MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-143-S-4X HC-49USX 14.31818MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-147.4-18-4XEN HC-49USX 14.7456MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-147.4-20-4X HC-49USX 14.7456MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-147.4-S-4X HC-49USX 14.7456MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-150-18-4XEN HC-49USX 15MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-150-S-4X HC-49USX 15MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-153.6-18-4XEN HC-49USX 15.36MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-153-20-4X HC-49USX 15.36MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-160.003-18-4X HC-49USX 16.000312MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-160-18-4XEN HC-49USX 16MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-160-20-4X HC-49USX 16MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-160-20-4X-B HC-49USX 16MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-160-20-4X-DU HC-49USX 16MHz ±100ppm ±30ppm 20pF -55°C ~ 125°C
ECS-160-S-4X HC-49USX 16MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-163.8-18-4XEN HC-49USX 16.384MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-177.3-18-4-EN HC-49USX 17.734475MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-180-18-4XEN HC-49USX 18MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-180-20-4X HC-49USX 18MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-180-S-4X HC-49USX 18MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-184-18-4X HC-49USX 18.432MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-184-20-4X HC-49USX 18.432MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-184-S-4X HC-49USX 18.432MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-196.6-18-4XEN HC-49USX 19.6608MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-196.6-20-4X HC-49USX 19.6608MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-196.6-S-4X HC-49USX 19.6608MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-200-18-4XEN HC-49USX 20MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-200-20-4X HC-49USX 20MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-200-20-4X-DU HC-49USX 20MHz ±100ppm ±30ppm 20pF -55°C ~ 125°C
ECS-200-S-4X HC-49USX 20MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-204.8-20-4X HC-49USX 20.48MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-221-18-4XEN HC-49USX 22.1184MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-221-S-4X HC-49USX 22.1184MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-240.001-18-4XEN HC-49USX 24.00014MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-240-12-4X HC-49USX 24MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-240-16-4X HC-49USX 24MHz ±50ppm ±30ppm 16pF -10°C ~ 70°C
ECS-240-18-4XEN HC-49USX 24MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-240-20-4X HC-49USX 24MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-240-S-4X HC-49USX 24MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-245.7-18-4XEN HC-49USX 24.576MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-245.7-20-4X HC-49USX 24.576MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-250-18-4X-DU HC-49USX 25MHz ±100ppm ±30ppm 18pF -55°C ~ 125°C
ECS-250-18-4XEN HC-49USX 25MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-250-18-4X-F HC-49USX 25MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-270-18-4X-F HC-49USX 27MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-282.24-18-4X-F-EN HC-49USX 28.224MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-286.3-18-4X-F-EN HC-49USX 28.63636MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-320-18-4XEN HC-49USX 32MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-35-17-4X HC-49USX 3.579545MHz ±50ppm ±30ppm 17pF -10°C ~ 70°C
ECS-35-18-4XEN HC-49USX 3.579545MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-35-S-4X HC-49USX 3.579545MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-36-18-4X HC-49USX 3.6864MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-36-S-4X HC-49USX 3.6864MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-40.3-20-4X HC-49USX 4.032MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-40.3-S-4X HC-49USX 4.032MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-400-18-4XEN HC-49USX 40MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-40-18-4XEN HC-49USX 4MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-40-20-4X HC-49USX 4MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-40-S-4X HC-49USX 4MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-41-20-4X HC-49USX 4.096MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-42-12-4X HC-49USX 4.194304MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-42-16-4X HC-49USX 4.194304MHz ±50ppm ±30ppm 16pF -10°C ~ 70°C
ECS-42-18-4XEN HC-49USX 4.194304MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-44-20-4X HC-49USX 4.433618MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-480-18-4XEN HC-49USX 48MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-49-18-4XEN HC-49USX 4.9152MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-49-20-4X HC-49USX 4.9152MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-49-CDX-0787 HC-49USX 4.9152MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-49-S-4X HC-49USX 4.9152MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-500-18-4XEN HC-49USX 50MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-50-18-4XEN HC-49USX 5MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-50-20-4X HC-49USX 5MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-50-S-4X HC-49USX 5MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-51-20-4X HC-49USX 5.068MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-60-18-4XEN HC-49USX 6MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-60-32-4X HC-49USX 6MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-60-S-4X HC-49USX 6MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-61-18-4XEN HC-49USX 6.144MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-61-32-4X HC-49USX 6.144MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-65-20-4X HC-49USX 6.5MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-73-18-4XEN HC-49USX 7.3728MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-73-20-4X HC-49USX 7.3728MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-73-S-4X HC-49USX 7.3728MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-76.8-18-4XEN HC-49USX 7.68MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-76.8-20-4X HC-49USX 7.68MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-80-18-4X HC-49USX 8MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-80-20-4X HC-49USX 8MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-80-32-4X HC-49USX 8MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-80-S-4X HC-49USX 8MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-85-S-4X HC-49USX 8.5MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-90-18-4XEN HC-49USX 9MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-90-S-4X HC-49USX 9MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-92.1-18-4XEN HC-49USX 9.216MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-92.1-20-4X HC-49USX 9.216MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-98.3-18-4XEN HC-49USX 9.8304MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-98.3-20-4X HC-49USX 9.8304MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-98.3-S-4X HC-49USX 9.8304MHz ±50ppm ±30ppm Series -10°C ~ 70°C
