ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz

頻率：18.432MHZ

尺寸：11.35×13.46mm

ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz,ECS-184-18-1X晶振,HC-49UX晶振,ECS無源晶振,頻率18.432MHz,兩腳插件晶振,石英晶體諧振器,儲存卡晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,數字水表晶振,ECS-480-S-1X,ECS-36-18-1X,ECS-240-S-1X,ECS-196.6-20-1X.








訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz,ECS-184-18-1X晶振,HC-49UX晶振,ECS無源晶振,頻率18.432MHz,兩腳插件晶振,石英晶體諧振器,儲存卡晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,數字水表晶振.

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

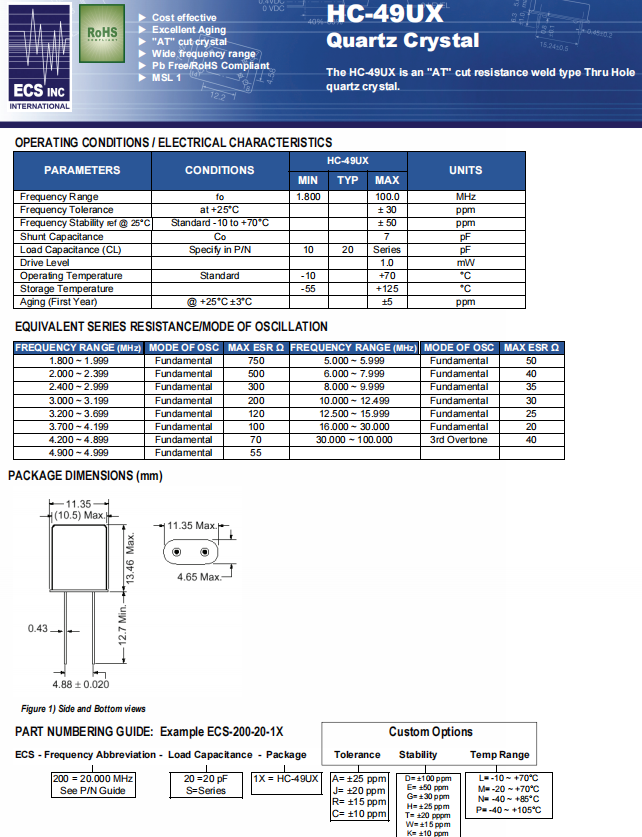

ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz  參數表

參數 條件 HC-49UX
頻率
18.432MHz
頻率公差  at +25°C ± 30PPM
頻率穩定性 -40°C to +85°C ± 50PPM
負載電容 Specify in P/N 18pF
激勵功率
500 μW Max
工作溫度
-10°C to +70°C
保存溫度
-55°C to +125°C
并聯電容
Co
7.0 pF
老化 @ +25°C ±3°C ±5ppm

陶瓷面封裝諧振器,4.0*2.5mm小體積SMD晶振,ECX-42晶振

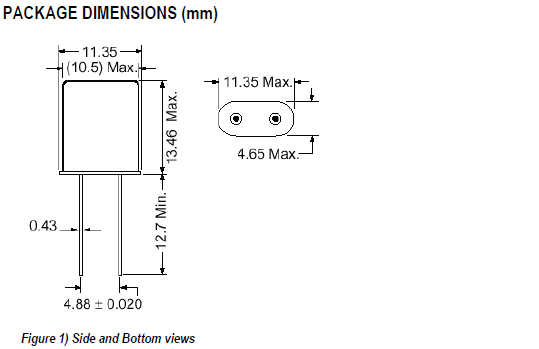

ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz   尺寸圖

hc49ux 11.35_13.46

ECS原廠編碼 型號 頻率 頻率穩定度 頻率偏差 負載電容 工作溫度
ECS-100-S-1X HC-49UX 10MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-110.5-20-1X HC-49UX 11.0592MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-110.5-32-1X HC-49UX 11.0592MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-110.5-S-1X HC-49UX 11.0592MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-110-S-1X HC-49UX 11MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-120-32-1X HC-49UX 12MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-120-S-1X HC-49UX 12MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-122.8-20-1X HC-49UX 12.288MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-122.8-S-1X HC-49UX 12.288MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-143-S-1X HC-49UX 14.31818MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-147.4-20-1X HC-49UX 14.7456MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-147.4-S-1X HC-49UX 14.7456MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-150-S-1X HC-49UX 15MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-160-20-1X HC-49UX 16MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-160-S-1X HC-49UX 16MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-180-20-1X HC-49UX 18MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-18-13-1X HC-49UX 1.8432MHz ±50ppm ±30ppm 13pF -10°C ~ 70°C
ECS-184-18-1X HC-49UX 18.432MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-184-20-1X HC-49UX 18.432MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-184-S-1X HC-49UX 18.432MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-18-S-1X HC-49UX 1.8432MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-196.6-20-1X HC-49UX 19.6608MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-196.6-S-1X HC-49UX 19.6608MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-20.48-12-1X HC-49UX 2.048MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-200-20-1X HC-49UX 20MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-200-S-1X HC-49UX 20MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-20-20-1X HC-49UX 2MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-20-S-1X HC-49UX 2MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-221-S-1X HC-49UX 22.1184MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-240-20-1X HC-49UX 24MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-240-S-1X HC-49UX 24MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-24-32-1X HC-49UX 2.4576MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-25-S-1X HC-49UX 2.5MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-30-S-1X HC-49UX 3MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-32-17-1X HC-49UX 3.2768MHz ±50ppm ±30ppm 17pF -10°C ~ 70°C
ECS-35-17-1X HC-49UX 3.579545MHz ±50ppm ±30ppm 17pF -10°C ~ 70°C
ECS-35-S-1X HC-49UX 3.579545MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-36-18-1X HC-49UX 3.6864MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-36-S-1X HC-49UX 3.6864MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-39-17-1X HC-49UX 3.93216MHz ±50ppm ±30ppm 17pF -10°C ~ 70°C
ECS-40.3-20-1X HC-49UX 4.032MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-40.3-S-1X HC-49UX 4.032MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-40-20-1X HC-49UX 4MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-40-S-1X HC-49UX 4MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-41-20-1X HC-49UX 4.096MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-42-12-1X HC-49UX 4.194304MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-44-20-1X HC-49UX 4.433618MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-480-S-1X HC-49UX 48MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-49-20-1X HC-49UX 4.9152MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-49-S-1X HC-49UX 4.9152MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-50-20-1X HC-49UX 5MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-50-S-1X HC-49UX 5MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-51-20-1X HC-49UX 5.068MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-51-S-1X HC-49UX 5.068MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-60-32-1X HC-49UX 6MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-60-S-1X HC-49UX 6MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-65-12-1X HC-49UX 6.5536MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-73-20-1X HC-49UX 7.3728MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-73-S-1X HC-49UX 7.3728MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-80-18-1X HC-49UX 8MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-80-20-1X HC-49UX 8MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-80-32-1X HC-49UX 8MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-80-S-1X HC-49UX 8MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-92.1-20-1X HC-49UX 9.216MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-92.1-S-1X HC-49UX 9.216MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-98.3-20-1X HC-49UX 9.8304MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-98.3-S-1X HC-49UX 9.8304MHz ±50ppm ±30ppm Series -10°C ~ 70°C
