臺灣加高晶振,HSX221SA石英晶體,X2B038400BA1H-U,6G無線應用晶振

頻率：38.4MHZ

尺寸：2.5x 2.0mm

臺灣加高晶振,HSX221SA石英晶體,X2B038400BA1H-U,6G無線應用晶振,臺灣加高晶振,HSX221SA進口晶振,2520晶振,X2B038400BA1H-U晶振,頻率32MHz,負載10pf,工作溫度-20~70°C,頻率穩定性10ppm,耐熱性晶振,高穩定性晶振,6G無線應用晶振,射頻應用晶振,物料網應用晶振,RFID應用晶振.





訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

JG-2臺灣加高晶振,HSX221SA石英晶體,X2B038400BA1H-U,6G無線應用晶振,臺灣加高晶振,HSX221SA進口晶振,2520晶振,X2B038400BA1H-U晶振,頻率32MHz,負載10pf,工作溫度-20~70°C,頻率穩定性10ppm,耐熱性晶振,高穩定性晶振,6G無線應用晶振,射頻應用晶振,物料網應用晶振,RFID應用晶振.

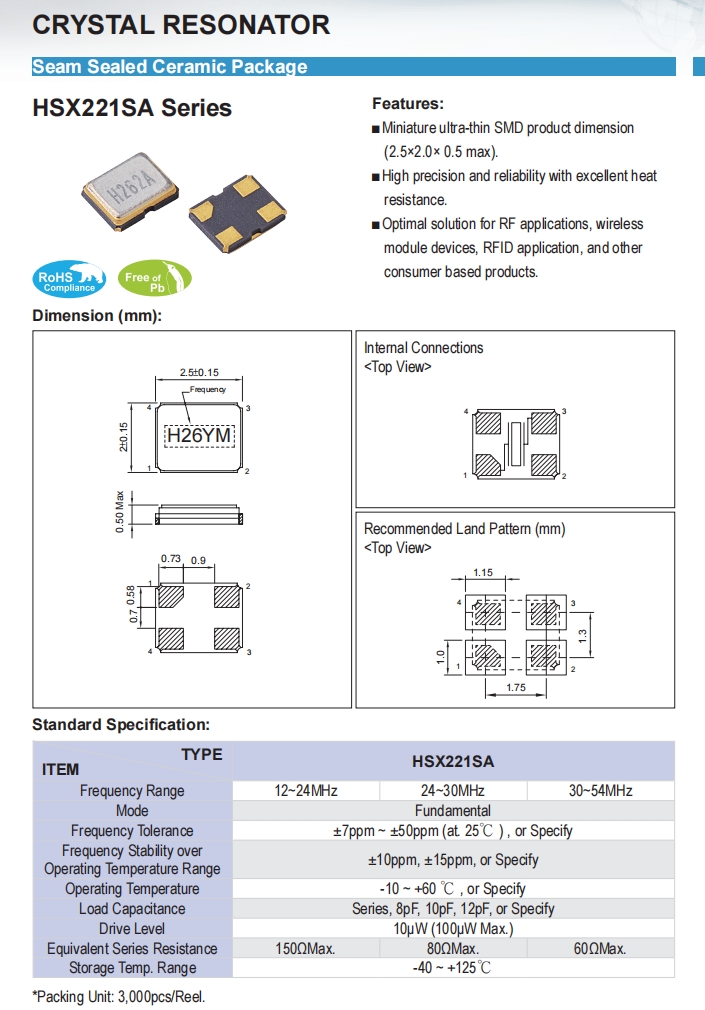

臺灣加高晶振,HSX221SA石英晶體,X2B038400BA1H-U,6G無線應用晶振特點 :

■微型超薄貼片產品尺寸（2.5×2.0× 0.5 max)
■精度高，可靠性好，耐熱性好
■射頻應用、無線模塊設備、RFID應用和其他消費類產品的最佳解決方案

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

臺灣加高晶振,HSX221SA石英晶體,X2B038400BA1H-U,6G無線應用晶振參數

項目 符號 HSX221S
頻率 f0 38.4MHz
振動模式
Fundamental
頻率公差  △ f/f0 ±10ppm
溫度穩定性 TC ±10ppm
負載電容 CL 10pf
工作溫度 TOPR －20℃～＋70℃
保存溫度 TSTR －40℃～＋125℃
串聯阻力 R1 60Ω Max.
驅動級別 DL 100μW Max

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

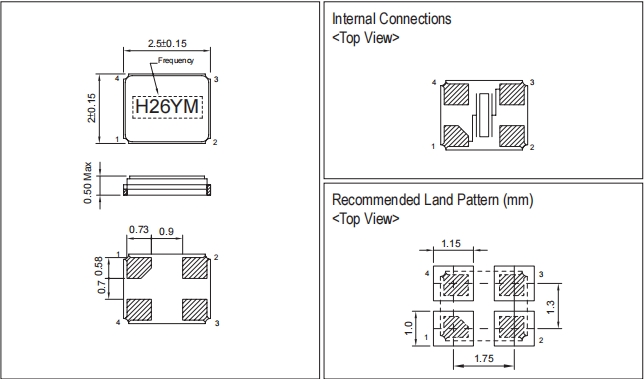

臺灣加高晶振,HSX221SA石英晶體,X2B038400BA1H-U,6G無線應用晶振尺寸圖

HSX221SA-1HSX221SA

原廠編碼 制造廠家 型號 頻率 負載 頻率容差 頻率穩定性 工作溫度 尺寸
X2B02863ADC1H-W HELE晶振 HSX221SA 28.636360MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B010000ADC1H-W HELE晶振 HSX221SA 10MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B011000ADC1H-W HELE晶振 HSX221SA 11MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B012000ADC1H-W HELE晶振 HSX221SA 12MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B013000ADC1H-W HELE晶振 HSX221SA 13MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B014000ADC1H-W HELE晶振 HSX221SA 14MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B015000ADC1H-W HELE晶振 HSX221SA 15MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B016000ADC1H-W HELE晶振 HSX221SA 16MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B017000ADC1H-W HELE晶振 HSX221SA 17MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B018000ADC1H-W HELE晶振 HSX221SA 18MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B019000ADC1H-W HELE晶振 HSX221SA 19MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B020000ADC1H-W HELE晶振 HSX221SA 20MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B021000ADC1H-W HELE晶振 HSX221SA 21MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B022000ADC1H-W HELE晶振 HSX221SA 22MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B023000ADC1H-W HELE晶振 HSX221SA 23MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B024000ADC1H-W HELE晶振 HSX221SA 24MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B025000ADC1H-W HELE晶振 HSX221SA 25MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B026000ADC1H-W HELE晶振 HSX221SA 26MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B027000ADC1H-W HELE晶振 HSX221SA 27MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B028000ADC1H-W HELE晶振 HSX221SA 28MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B029000ADC1H-W HELE晶振 HSX221SA 29MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B030000ADC1H-W HELE晶振 HSX221SA 30MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B031000ADC1H-W HELE晶振 HSX221SA 31MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B032000ADC1H-W HELE晶振 HSX221SA 32MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B033000ADC1H-W HELE晶振 HSX221SA 33MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B034000ADC1H-W HELE晶振 HSX221SA 34MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B035000ADC1H-W HELE晶振 HSX221SA 35MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B036000ADC1H-W HELE晶振 HSX221SA 36MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B037000ADC1H-W HELE晶振 HSX221SA 37MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038000ADC1H-W HELE晶振 HSX221SA 38MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B039000ADC1H-W HELE晶振 HSX221SA 39MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B040000ADC1H-W HELE晶振 HSX221SA 40MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038400BA1H-U HELE晶振 HSX221SA 38.4MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B016000BA1H-U HELE晶振 HSX221SA 16MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B017000BA1H-U HELE晶振 HSX221SA 17MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B018000BA1H-U HELE晶振 HSX221SA 18MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B019000BA1H-U HELE晶振 HSX221SA 19MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B020000BA1H-U HELE晶振 HSX221SA 20MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B021000BA1H-U HELE晶振 HSX221SA 21MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B022000BA1H-U HELE晶振 HSX221SA 22MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B023000BA1H-U HELE晶振 HSX221SA 23MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B024000BA1H-U HELE晶振 HSX221SA 24MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B025000BA1H-U HELE晶振 HSX221SA 25MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B026000BA1H-U HELE晶振 HSX221SA 26MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B027000BA1H-U HELE晶振 HSX221SA 27MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B028000BA1H-U HELE晶振 HSX221SA 28MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B029000BA1H-U HELE晶振 HSX221SA 29MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B030000BA1H-U HELE晶振 HSX221SA 30MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B031000BA1H-U HELE晶振 HSX221SA 31MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B032000BA1H-U HELE晶振 HSX221SA 32MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B033000BA1H-U HELE晶振 HSX221SA 33MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B034000BA1H-U HELE晶振 HSX221SA 34MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B035000BA1H-U HELE晶振 HSX221SA 35MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B036000BA1H-U HELE晶振 HSX221SA 36MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B037000BA1H-U HELE晶振 HSX221SA 37MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B038000BA1H-U HELE晶振 HSX221SA 38MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B039000BA1H-U HELE晶振 HSX221SA 39MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B040000BA1H-U HELE晶振 HSX221SA 40MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B041000BA1H-U HELE晶振 HSX221SA 41MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B042000BA1H-U HELE晶振 HSX221SA 42MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B043000BA1H-U HELE晶振 HSX221SA 43MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B044000BA1H-U HELE晶振 HSX221SA 44MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B045000BA1H-U HELE晶振 HSX221SA 45MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B046000BA1H-U HELE晶振 HSX221SA 46MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
