Jauch晶振,O 24.0-JO75-G-3.3-1-T1-LF,7050mm晶振,6G基站晶振

頻率：24MHZ

尺寸：7.5mm x 5.0mm

Jauch晶振,O 24.0-JO75-G-3.3-1-T1-LF,7050mm晶振,6G基站晶振,Jauch晶振,JO75有源晶振,O 24.0-JO75-G-3.3-1-T1-LF晶振,SMD晶體振蕩器,7050mm晶振,頻率24MHz,工作溫度-40~85°C,電壓3.3V,耐高溫晶振,高穩定性晶振,6G基站晶振,物聯網晶振,車載CCD相機晶振,圖形處理應用晶振.

訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

Jau-1

Jauch晶振,O 24.0-JO75-G-3.3-1-T1-LF,7050mm晶振,6G基站晶振,Jauch晶振,JO75有源晶振,O 24.0-JO75-G-3.3-1-T1-LF晶振,SMD晶體振蕩器,7050mm晶振,頻率24MHz,工作溫度-40~85°C,電壓3.3V,耐高溫晶振,高穩定性晶振,6G基站晶振,物聯網晶振,車載CCD相機晶振,圖形處理應用晶振.

Jauch晶振,O 24.0-JO75-G-3.3-1-T1-LF,7050mm晶振,6G基站晶振特點：

-帶停止功能的SMD振蕩器7.5x 5.0mm

- LVCMOS / HCMOS兼容輸出

-可變電源電壓1.8伏~ 3.3伏

-低相位抖動，無PLL

-接縫密封陶瓷/金屬封裝


高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

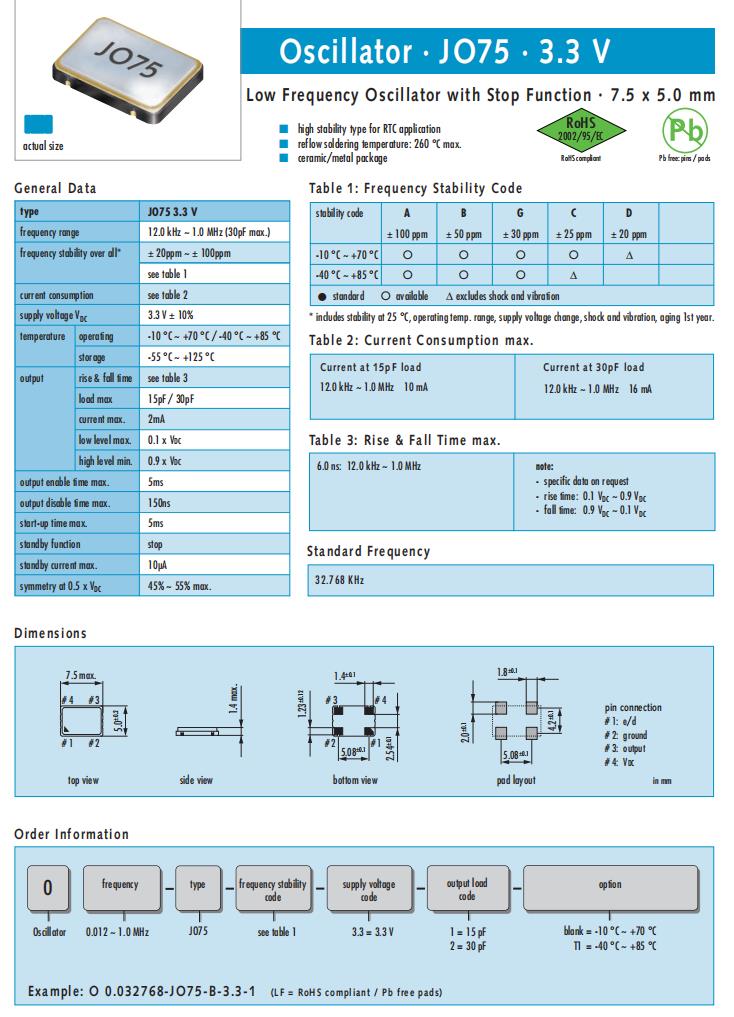

Jauch晶振,O 24.0-JO75-G-3.3-1-T1-LF,7050mm晶振,6G基站晶振參數表

 型號 JO75
 頻率 24MHz
頻率穩定性 ± 30 ppm
電流消耗 10mA
電源電壓 3.3V
工作溫度 -40°C ~ +85 °C
儲存溫度 -55°C ~ +125°C
上升下降時間 6ns max
輸出負載 15 pF
最大啟動時間 5 ms
最大待機電流 10 µA
0.5 x VDC時的對稱性 45% ~ 55% max.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

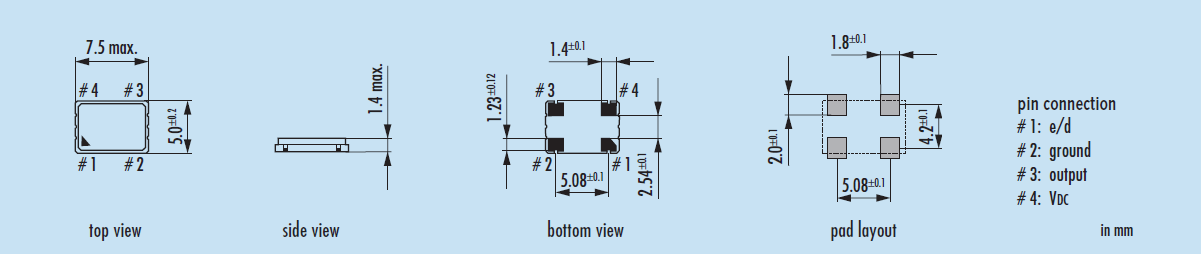

Jauch晶振,O 24.0-JO75-G-3.3-1-T1-LF,7050mm晶振,6G基站晶振尺寸圖

jo75-3.3V-7050 OSC

Jauch晶振原廠編碼 制造商 型號 頻率 頻率容差 負載電容 Operating Mode 工作溫度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-8-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-9-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C

JO75


JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.mimatsu-osaka.com/

相關的產品 / Related Products

FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振
FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振
FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振,該晶振采用陶瓷封裝工藝,具備良好的散熱性能與機械強度,在5G終端設備(如5GCPE,工業物聯網網關)中,可輕松集成到緊湊的電路板上,支持多電壓供電(2.5V/3.3V),適配不同5G設備的電源架構.在5G工業物聯網網關中,3225晶振為網關的通信模塊提供時序基準,保障網關與5G基站,工業設備間的雙向數據傳輸,在5G智能電表等終端設備中,其小型化與低功耗特性(動態電流≤5mA),可減少設備體積與能耗,適配終端設備長期穩定運行需求,同時穩定的頻率輸出確保電表數據采集與上傳的時序精度,避免因頻率偏差導致的計量誤差.
FOX1210晶振,FK124汽車收音機晶體,FK124EIWM0.032768-T5耐高溫晶振
FOX1210晶振,FK124汽車收音機晶體,FK124EIWM0.032768-T5耐高溫晶振
FOX1210晶振,FK124汽車收音機晶體,FK124EIWM0.032768-T5耐高溫晶振，福克斯晶振，美國晶振，FK124晶振，石英晶體，表晶，耐高溫晶振，無源晶振，汽車收音機晶振，貼片晶振，智能手表晶振，音叉晶振，32.768KHz晶振，超小型晶振，1210晶振，SMD晶振，無源晶振，醫療設備晶振，移動通訊晶振，微型晶振，汽車晶振，汽車輔助駕駛晶振，中控系統晶振，FOX晶振公司，通過創造尖端產品，提高石英晶振的精度性能，可靠性與準確性。環保無鉛晶振，低損耗晶振，高精度晶振，二腳晶振，進口晶振。
香港NKG晶體,S6GA40.0000F16M25-EXT,6035陶瓷晶振,6G無線應用晶振
香港NKG晶體,S6GA40.0000F16M25-EXT,6035陶瓷晶振,6G無線應用晶振

香港NKG晶體,S6GA40.0000F16M25-EXT,6035陶瓷晶振,6G無線應用晶振,香港NKG晶體,S6GA陶瓷晶振,無源晶振,S6GA40.0000F16M25-EXT晶振,石英晶體諧振器,SMD晶體,6035貼片晶振,二腳封裝晶振,頻率40MHz,負載16pF,頻率容差20ppm,工作溫度-40~85°C,高穩定性晶振,低老化晶振,抗沖擊晶振,6G無線應用晶振,家用電視機頂盒晶振,專業視頻設備晶振,服務器和存儲系統晶振.

JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路
