Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振

頻率：40MHZ

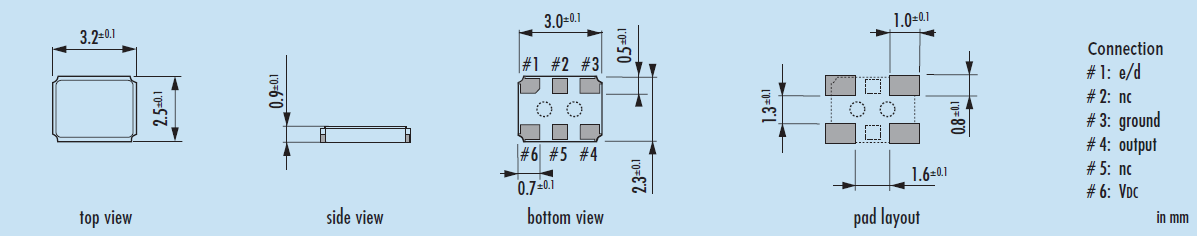

尺寸：3.2mm x 2.5mm

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振,Jauch晶振,JO33H有源晶振,O 40.0-JO33H-E-3.3-1-T2晶振,石英晶體振蕩器,3225mm晶振,進口貼片晶振,頻率40MHz,工作溫度-40~105°C,電壓3.3V,高穩定性晶振,耐高溫晶振,6G無線網絡晶振,WIFI應用晶振,藍牙音響晶振,通訊設備晶振.



訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

Jau-1

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振,Jauch晶振,JO33H有源晶振,O 40.0-JO33H-E-3.3-1-T2晶振,石英晶體振蕩器,3225mm晶振,進口貼片晶振,頻率40MHz,工作溫度-40~105°C,電壓3.3V,高穩定性晶振,耐高溫晶振,6G無線網絡晶振,WIFI應用晶振,藍牙音響晶振,通訊設備晶振.

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振特點：

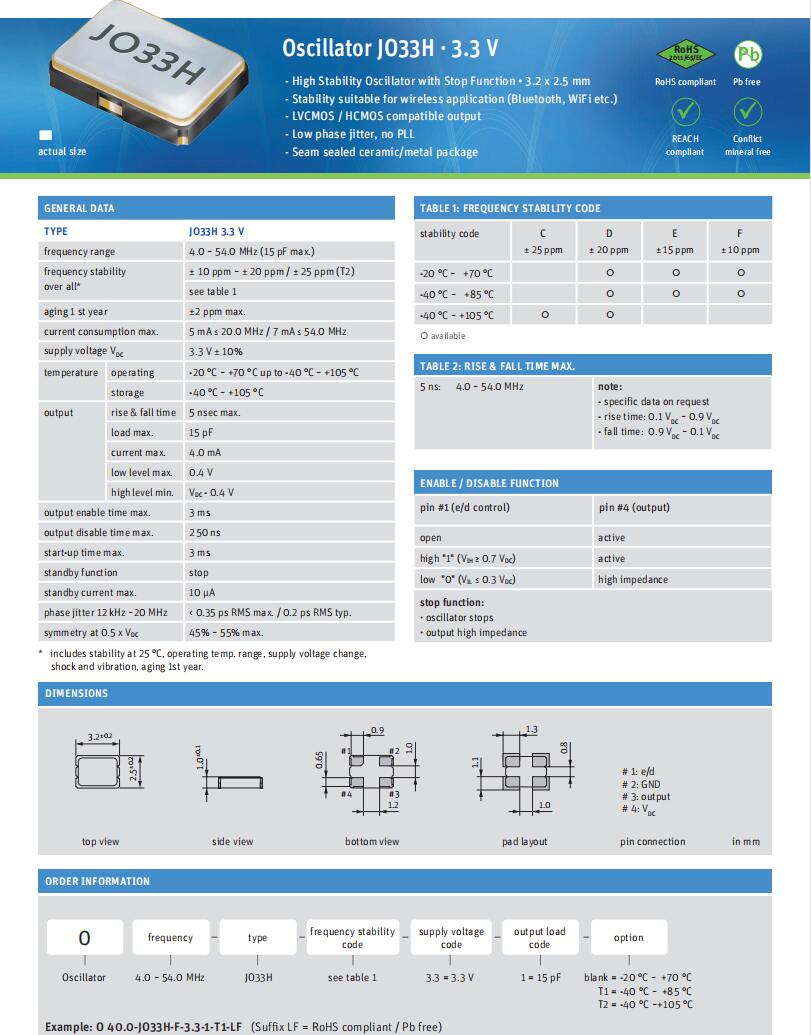

-帶停止功能的高穩定性振蕩器3.2x 2.5mm

- LVCMOS / HCMOS兼容輸出

-穩定性適合無線應用（藍牙、WIFI等）

-可變電源電壓1.8伏~ 3.3伏

-低相位抖動，無PLL

-接縫密封陶瓷/金屬封裝

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振參數表

 型號 JO33H
 頻率 40MHz
頻率穩定性 ± 15 ppm
電流消耗 5 mA ≤ 20.0 MHz / 7 mA ≤ 54.0 MHz
電源電壓 3.3V
工作溫度 -40°C ~ +105 °C
儲存溫度 -40°C ~ +105°C
上升下降時間 5 ns max
輸出負載 15 pF
最大啟動時間 3 ms
最大待機電流 10 µA
相位抖動:12 kHz ~20 MHz
 < 0.35 ps RMS max
0.5 x VDC時的對稱性 45% ~ 55% max.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振尺寸圖

jo32h-3.3V-3225 OSC

Jauch晶振原廠編碼 制造商 型號 頻率 頻率容差 負載電容 Operating Mode 工作溫度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-8-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-9-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C

JO33H


JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.mimatsu-osaka.com/

相關的產品 / Related Products

EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振,憑借品牌專屬的"高精度晶體微調技術",實現了48.000MHz的穩定頻率輸出,頻率精度嚴格控制在±10ppm以?xún)?nèi),遠優于行業內部分同類產品±15ppm的精度標準,為高帶寬電子設備提供了可靠的"時鐘核心".在通信領域,它可適配5G基站晶振的基帶處理單元,光纖通信的信號轉發模塊,48MHz的高頻特性能支撐每秒數GB的數據流傳輸,減少信號同步延遲,降低數據丟包率,在工業自動化場景,為高速運動控制器,機器視覺檢測設備提供高頻時鐘信號.
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器,從結構工藝來看,EC5645ETTTS-48.000MTR采用全密封金屬外殼封裝,相較于傳統陶瓷封裝,金屬外殼具備更優異的屏蔽性能,能有效隔絕外界電磁輻射與機械振動干擾,大幅降低信號失真風險,保障晶振長期穩定工作.內部搭載高精度石英晶體單元,經過Ecliptek獨家的精密切割與校準工藝處理,結合低噪聲振蕩電路設計,實現了低相位噪聲特性,在高頻工作狀態下仍能保持信號純凈度.同時,2520小型化封裝搭配標準化貼片引腳設計,完美適配自動化SMT貼裝工藝,提升生產效率的同時,減少人工組裝誤差,降低生產成本.
EC2600TS-66.000MTR,Ecliptek晶振,LVCMOS輸出
EC2600TS-66.000MTR,Ecliptek晶振,LVCMOS輸出
EC2600TS-66.000MTR,Ecliptek晶振,LVCMOS輸出,核心輸出頻率精準鎖定66.000MHz,能為電子設備提供高頻且穩定的時鐘信號,滿足高速數據處理與信號傳輸場景的時序需求.該晶振采用行業主流的LVCMOS(低壓互補金屬氧化物半導體)輸出接口,具備低電壓工作特性(典型工作電壓范圍3.3V±5%或2.5V±5%,適配不同設備供電需求),輸出電平與主流數字電路兼容,無需額外電平轉換模塊即可直接與MCU,FPGA等芯片對接,大幅簡化電路設計,同時LVCMOS輸出模式還能有效降低信號傳輸損耗,減少功耗,適配便攜式,低功耗電子設備的設計需求.此外,產品封裝規格符合小型化設計趨勢,可靈活融入高密度PCB板布局,適配對空間要求嚴苛的設備場景.

JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路
