SG-210STF12.2880ML0|-40~85°C|12.288MHz|2520mm

頻率：12.288MHZ

尺寸：2.5mm×2.0mm×0.8mm

SG-210STF12.2880ML0|-40~85°C|12.288MHz|2520mm  ,SG-210STF12.2880ML0晶振,工作溫度-40~85°C,頻率12.288MHz,2520mm晶振,日本EPSON晶振,耐高溫晶振,石英晶體振蕩器,進口SMD晶振,汽車電子晶振,通訊設備晶振,無線網絡晶振,醫療設備晶振.

訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息


EPSON-1

 SG-210STF12.2880ML0|-40~85°C|12.288MHz|2520mm  ,SG-210STF12.2880ML0晶振,工作溫度-40~85°C,頻率12.288MHz,2520mm晶振,日本EPSON晶振,耐高溫晶振,石英晶體振蕩器,進口SMD晶振,汽車電子晶振,通訊設備晶振,無線網絡晶振,醫療設備晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

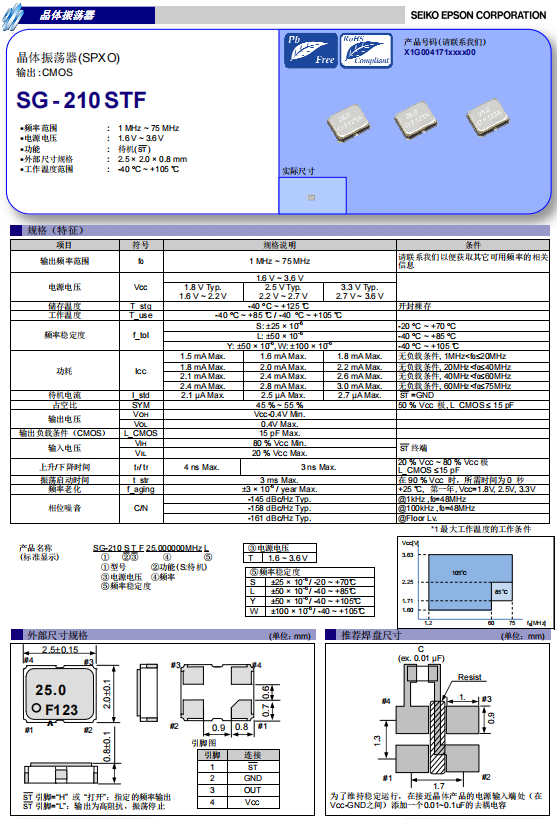

SG-210STF12.2880ML0|-40~85°C|12.288MHz|2520mm參數表

項目 符號 規格說明 條件
額定頻率 f_nom 12.288MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 1.6V~3.6V
儲存溫度 T_stg -40℃~+125℃ 開封裸存
工作溫度 T_use -40℃~ +85℃
頻率穩定度 f_tol ±50 ppm -40℃~ +85℃
功耗 Icc 1.8mA Max  無負載條件, 1MHz020MHz
待機電流 I_std 2.7µA  ST=GND
占空比 SYM 45%~55% 50%Vcc極,L_CMOS≤15pf
輸出電壓 VOH Vcc-0.4V Min
VOL 0.4V Max
輸出負載條件(CMOS) L_CMOS 15pF Max
輸入電壓 VIH 80 % VCC Min. ST 終端
VIL 20 % VCC Max.
上升/下降時間 tr/ tf 3 ns Max.
20 % VCC ~ 80 % VCC 極
L_CMOS ≤15 pF
振蕩啟動時間 t_str 3 ms Max. 在 90 % VCC  時，所需時間為 0  秒
頻率老化 f_aging   3 × 10-6 / year Max. +25 °C,  第一年,Vcc=1.8V, 2.5V, 3.3V
相位噪音 C/N - 145 dBc/Hz Typ . @1kHz ,f0=48MHz
- 158 dBc/Hz Typ . @100kHz ,f0=48MHz
- 161 dBc/Hz Typ . @Floor Lv.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

SG-210STF12.2880ML0|-40~85°C|12.288MHz|2520mm尺寸圖

SG-210STF 2520 CMOS

編碼 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0041710002 SG-210STF 33.300000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710005 SG-210STF 1.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710006 SG-210STF 1.843200 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710007 SG-210STF 2.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710008 SG-210STF 3.686400 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710009 SG-210STF 4.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710010 SG-210STF 4.096000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710011 SG-210STF 5.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710012 SG-210STF 6.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710013 SG-210STF 6.144000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710014 SG-210STF 7.372800 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710015 SG-210STF 8.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710016 SG-210STF 10.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710017 SG-210STF 11.289600 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710018 SG-210STF 12.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710019 SG-210STF 12.288000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710020 SG-210STF 12.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710021 SG-210STF 13.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710022 SG-210STF 13.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710023 SG-210STF 13.560000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710024 SG-210STF 14.318180 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710025 SG-210STF 14.745600 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710026 SG-210STF 15.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710027 SG-210STF 16.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710028 SG-210STF 19.200000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710029 SG-210STF 20.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710030 SG-210STF 22.579200 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710031 SG-210STF 24.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710032 SG-210STF 24.576000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710033 SG-210STF 25.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710034 SG-210STF 26.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710035 SG-210STF 27.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710036 SG-210STF 27.120000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710037 SG-210STF 28.636360 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710038 SG-210STF 29.491200 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710039 SG-210STF 30.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710040 SG-210STF 32.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710041 SG-210STF 33.333000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710042 SG-210STF 36.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710043 SG-210STF 37.400000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710044 SG-210STF 38.400000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710045 SG-210STF 40.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710046 SG-210STF 48.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710047 SG-210STF 50.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710048 SG-210STF 52.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710049 SG-210STF 54.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710052 SG-210STF 8.192000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710055 SG-210STF 26.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0041710059 SG-210STF 25.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 105 °C
X1G0041710069 SG-210STF 8.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 105 °C
X1G0041710075 SG-210STF 33.333300 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 105 °C
X1G0041710077 SG-210STF 25.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0041710078 SG-210STF 48.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0041710079 SG-210STF 50.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0041710080 SG-210STF 66.666700 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.710 to 3.600 V -40 to 85 °C
X1G0041710081 SG-210STF 75.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.710 to 3.600 V -40 to 85 °C
X1G0041710083 SG-210STF 1.200000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710084 SG-210STF 1.228800 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710085 SG-210STF 1.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710086 SG-210STF 1.536000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710087 SG-210STF 2.048000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710088 SG-210STF 2.457600 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710089 SG-210STF 2.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710090 SG-210STF 3.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710091 SG-210STF 3.072000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710092 SG-210STF 3.125000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710093 SG-210STF 3.579545 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710094 SG-210STF 4.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710095 SG-210STF 4.800000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710096 SG-210STF 4.915200 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710097 SG-210STF 5.644800 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710098 SG-210STF 6.250000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710099 SG-210STF 6.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710100 SG-210STF 6.750000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710101 SG-210STF 6.780000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710102 SG-210STF 7.159090 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710103 SG-210STF 7.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710104 SG-210STF 8.250000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710105 SG-210STF 9.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710106 SG-210STF 9.600000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710107 SG-210STF 9.830400 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710108 SG-210STF 15.625000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710109 SG-210STF 16.384000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710110 SG-210STF 16.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710111 SG-210STF 16.650000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710112 SG-210STF 16.666500 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710113 SG-210STF 18.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710114 SG-210STF 19.440000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710115 SG-210STF 19.660800 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710116 SG-210STF 31.250000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710117 SG-210STF 32.768000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710118 SG-210STF 33.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710119 SG-210STF 33.330000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710120 SG-210STF 33.333300 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0041710121 SG-210STF 62.500000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.710 to 3.600 V -40 to 85 °C
X1G0041710122 SG-210STF 66.667000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.710 to 3.600 V -40 to 85 °C
X1G0041710124 SG-210STF 72.000000 MHz 2.50 x 2.00 x 0.90 mm CMOS 1.710 to 3.600 V -40 to 85 °C


SG-210STF
