Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振
頻率：122.88MHZ
尺寸：5.0mm x 3.2mm
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,LVDS差分晶振,進口有源晶振,549BBAA000368BCGR晶振,5032mm晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.
訂購熱線：0755-27837162
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,549BBAA000368BCGR晶振,5032mm晶振,LVDS差分晶振,進口有源晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振特點：
•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb
•超低抖動:95 fs類型RMS (12 kHz - 20 MHz)
•配置多達4引腳可選擇的啟動頻率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和電源抗噪性:-80 dBc類型
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項
•2.5x3.2, 3.2x5, 5x7 mm包裝選項
•樣品交付周期為1-2周
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振參數表
項目
符號
規格說明
條件
額定頻率
f_nom
122.88MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±10 ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
121mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
輸出電壓
VOC
1.275V Max
LVDS
VO
0.9Vpp Max
輸入電壓
VIH
70%VDD Min
VIL
30%VDD Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
3ms Max
相位抖動
tpj
150fs Max
100 MHz ≤ FCLK < 200 MHz

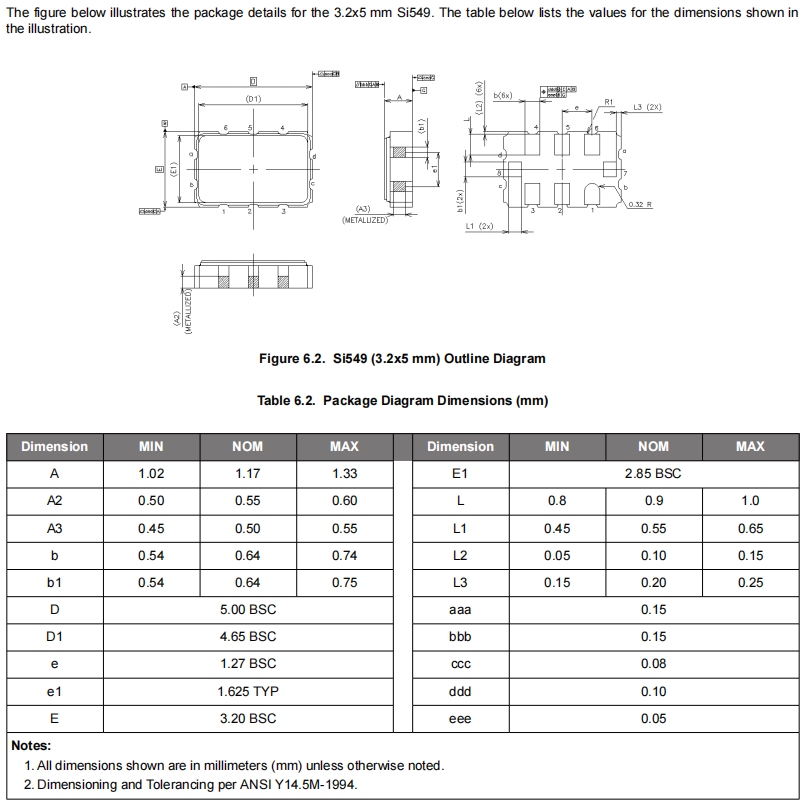

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振尺寸圖
