X2C032000BZ1H-HZ晶振,HELE高品質晶振,無人機信號傳輸晶振

頻率：32MHZ

尺寸：2016mm

X2C032000BZ1H-HZ晶振,HELE高品質晶振,無人機信號傳輸晶振，臺灣HELE晶振公司，石英晶振，超小型晶振，SMD晶振，低損耗晶振，高品質晶振，高精度晶振，汽車晶振，HSX211S晶振，進口晶振，耐熱性晶振，X2C032000BZ1H-HZ晶振，高穩定性晶振，6G無線應用晶振，射頻應用晶振，物料網應用晶振，RFID應用晶振.特點:超小型貼片型晶體器件。精度高，可靠性好，耐熱性好。適用于設計空間有限的智能手機應用程序、初始化無線模塊設備、RFID應用程序和其他基于消費者的產品.
訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

JG-2

X2C032000BZ1H-HZ晶振,HELE高品質晶振,無人機信號傳輸晶振，臺灣HELE晶振公司，石英晶振，超小型晶振，SMD晶振，低損耗晶振，高品質晶振，高精度晶振，汽車晶振，HSX211S晶振，進口晶振，耐熱性晶振，X2C032000BZ1H-HZ晶振，高穩定性晶振，6G無線應用晶振，射頻應用晶振，物料網應用晶振，RFID應用晶振.特點:超小型貼片型晶體器件。精度高，可靠性好，耐熱性好。適用于設計空間有限的智能手機應用程序、初始化無線模塊設備、RFID應用程序和其他基于消費者的產品.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

X2C032000BZ1H-HZ晶振,HELE高品質晶振,無人機信號傳輸晶振

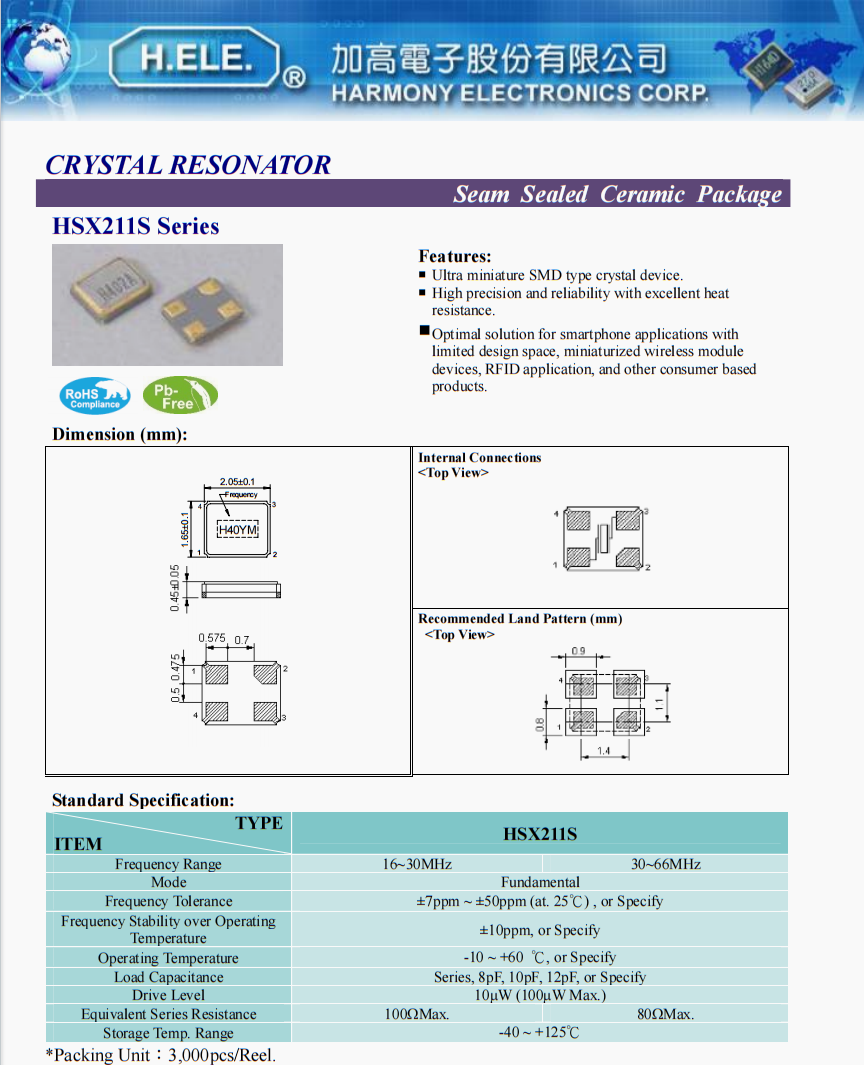

項目 HSX211S
頻率范圍 16~30MHz
工作模式 Fundamental
頻率容差 ±7ppm ~ ±50ppm (at. 25℃) , or Specify
溫度范圍內的頻率穩定度 ±10ppm, or Specify
工作溫度 -10 ~ +60  ℃, or Specify
負載電容 Series, 8pF, 10pF, 12pF, or Specify
驅動電平 10μW (100μW Max.)
等效串聯電子 100?Max.
儲存溫度范圍 -40 ~ +125℃

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

X2C032000BZ1H-HZ晶振,HELE高品質晶振,無人機信號傳輸晶振

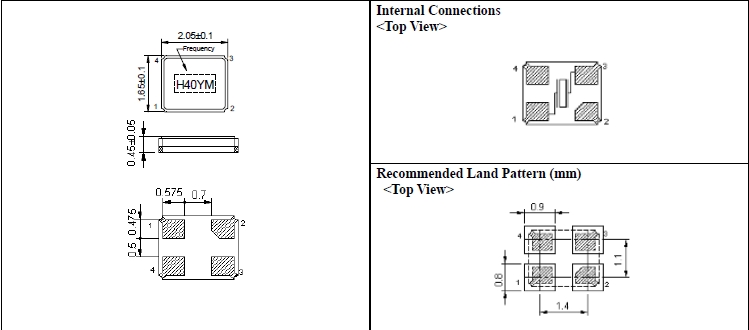

HSX211S 2016

HSX211


原廠編碼 制造廠家 型號 頻率 負載 頻率容差 頻率穩定性 工作溫度 尺寸
X2B02863ADC1H-W HELE晶振 HSX221SA 28.636360MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B010000ADC1H-W HELE晶振 HSX221SA 10MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B011000ADC1H-W HELE晶振 HSX221SA 11MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B012000ADC1H-W HELE晶振 HSX221SA 12MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B013000ADC1H-W HELE晶振 HSX221SA 13MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B014000ADC1H-W HELE晶振 HSX221SA 14MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B015000ADC1H-W HELE晶振 HSX221SA 15MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B016000ADC1H-W HELE晶振 HSX221SA 16MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B017000ADC1H-W HELE晶振 HSX221SA 17MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B018000ADC1H-W HELE晶振 HSX221SA 18MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B019000ADC1H-W HELE晶振 HSX221SA 19MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B020000ADC1H-W HELE晶振 HSX221SA 20MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B021000ADC1H-W HELE晶振 HSX221SA 21MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B022000ADC1H-W HELE晶振 HSX221SA 22MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B023000ADC1H-W HELE晶振 HSX221SA 23MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B024000ADC1H-W HELE晶振 HSX221SA 24MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B025000ADC1H-W HELE晶振 HSX221SA 25MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B026000ADC1H-W HELE晶振 HSX221SA 26MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B027000ADC1H-W HELE晶振 HSX221SA 27MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B028000ADC1H-W HELE晶振 HSX221SA 28MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B029000ADC1H-W HELE晶振 HSX221SA 29MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B030000ADC1H-W HELE晶振 HSX221SA 30MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B031000ADC1H-W HELE晶振 HSX221SA 31MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B032000ADC1H-W HELE晶振 HSX221SA 32MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B033000ADC1H-W HELE晶振 HSX221SA 33MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B034000ADC1H-W HELE晶振 HSX221SA 34MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B035000ADC1H-W HELE晶振 HSX221SA 35MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B036000ADC1H-W HELE晶振 HSX221SA 36MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B037000ADC1H-W HELE晶振 HSX221SA 37MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038000ADC1H-W HELE晶振 HSX221SA 38MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B039000ADC1H-W HELE晶振 HSX221SA 39MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B040000ADC1H-W HELE晶振 HSX221SA 40MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038400BA1H-U HELE晶振 HSX221SA 38.4MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B016000BA1H-U HELE晶振 HSX221SA 16MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B017000BA1H-U HELE晶振 HSX221SA 17MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B018000BA1H-U HELE晶振 HSX221SA 18MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B019000BA1H-U HELE晶振 HSX221SA 19MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B020000BA1H-U HELE晶振 HSX221SA 20MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B021000BA1H-U HELE晶振 HSX221SA 21MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B022000BA1H-U HELE晶振 HSX221SA 22MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B023000BA1H-U HELE晶振 HSX221SA 23MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B024000BA1H-U HELE晶振 HSX221SA 24MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B025000BA1H-U HELE晶振 HSX221SA 25MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B026000BA1H-U HELE晶振 HSX221SA 26MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B027000BA1H-U HELE晶振 HSX221SA 27MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B028000BA1H-U HELE晶振 HSX221SA 28MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B029000BA1H-U HELE晶振 HSX221SA 29MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B030000BA1H-U HELE晶振 HSX221SA 30MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B031000BA1H-U HELE晶振 HSX221SA 31MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B032000BA1H-U HELE晶振 HSX221SA 32MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B033000BA1H-U HELE晶振 HSX221SA 33MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B034000BA1H-U HELE晶振 HSX221SA 34MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B035000BA1H-U HELE晶振 HSX221SA 35MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B036000BA1H-U HELE晶振 HSX221SA 36MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B037000BA1H-U HELE晶振 HSX221SA 37MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B038000BA1H-U HELE晶振 HSX221SA 38MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B039000BA1H-U HELE晶振 HSX221SA 39MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B040000BA1H-U HELE晶振 HSX221SA 40MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B041000BA1H-U HELE晶振 HSX221SA 41MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B042000BA1H-U HELE晶振 HSX221SA 42MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B043000BA1H-U HELE晶振 HSX221SA 43MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B044000BA1H-U HELE晶振 HSX221SA 44MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B045000BA1H-U HELE晶振 HSX221SA 45MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B046000BA1H-U HELE晶振 HSX221SA 46MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
