X3S040000BF1HB-Z晶振,汽車中控系統晶振,臺灣HELE貼片晶體

頻率：40MHZ

尺寸：3225mm

X3S040000BF1HB-Z晶振,汽車中控系統晶振,臺灣HELE貼片晶體，特點 :微型超薄貼片產品尺寸（3.2×2.5× 0.55 max)精度高，可靠性好，耐熱性好射頻應用、無線模塊設備、RFID應用和其他消費類產品的最佳解決方案。臺灣加高晶振公司，HELE晶振，貼片晶振，石英晶振，四腳晶振，汽車級晶振，6G無線應用晶振，HSX321SL晶振，進口晶振，3225晶振，X3S040000BF1HB-Z晶振,耐熱性晶振，高穩定性晶振，6G無線應用晶振，射頻應用晶振，物料網應用晶振，RFID應用晶振.
訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

JG-2

X3S040000BF1HB-Z晶振,汽車中控系統晶振,臺灣HELE貼片晶體，特點 :微型超薄貼片產品尺寸（3.2×2.5× 0.55 max)精度高，可靠性好，耐熱性好射頻應用、無線模塊設備、RFID應用和其他消費類產品的最佳解決方案。臺灣加高晶振公司，HELE晶振，貼片晶振，石英晶振，四腳晶振，汽車級晶振，6G無線應用晶振，HSX321SL晶振，進口晶振，3225晶振，X3S040000BF1HB-Z晶振,耐熱性晶振，高穩定性晶振，6G無線應用晶振，射頻應用晶振，物料網應用晶振，RFID應用晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

X3S040000BF1HB-Z晶振,汽車中控系統晶振,臺灣HELE貼片晶體

頻率范圍 12~16MHz 16~32MHz 32~54MHz
工作模式 Fundamental
頻率容差

±10ppm

負載電容 7pF Min.
驅動電平 10μW (300μW Max.)
等效串聯電子 80Ω Max. 50Ω Max. 40Ω Max.
儲存溫度范圍 -55 ~ +125 C

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

X3S040000BF1HB-Z晶振,汽車中控系統晶振,臺灣HELE貼片晶體

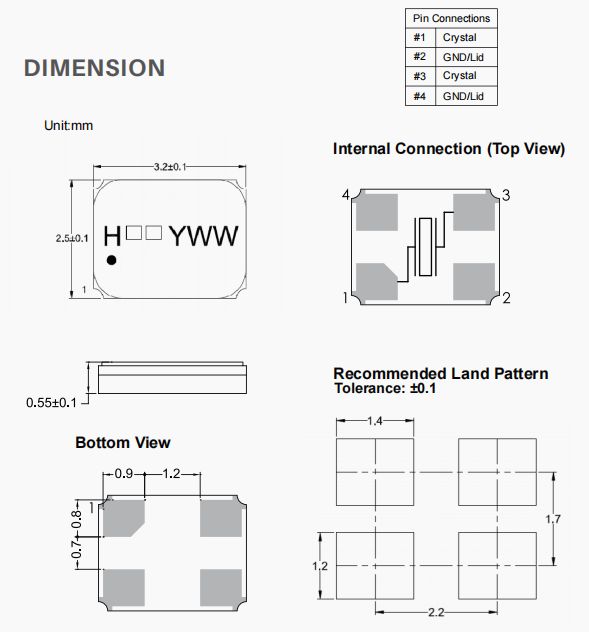

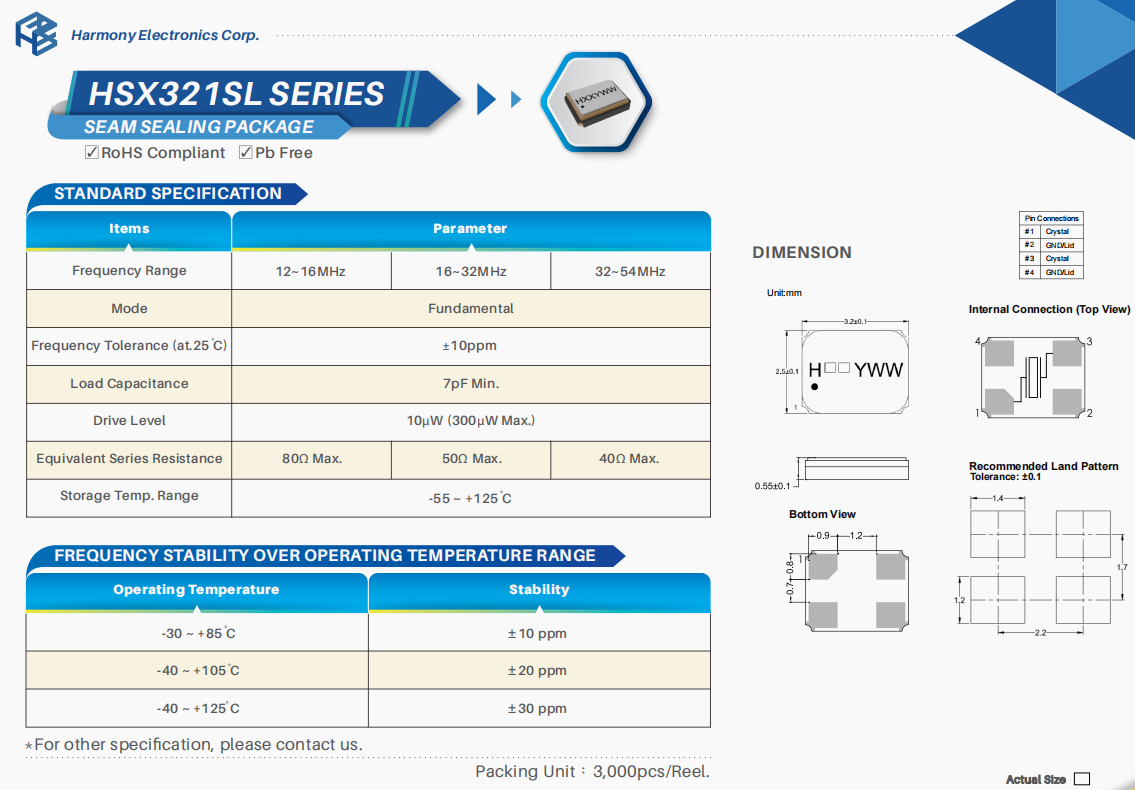

HSX321SL 3225

HSX321SL


原廠編碼 制造廠家 型號 頻率 負載 頻率容差 頻率穩定性 工作溫度 尺寸
X2B02863ADC1H-W HELE晶振 HSX221SA 28.636360MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B010000ADC1H-W HELE晶振 HSX221SA 10MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B011000ADC1H-W HELE晶振 HSX221SA 11MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B012000ADC1H-W HELE晶振 HSX221SA 12MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B013000ADC1H-W HELE晶振 HSX221SA 13MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B014000ADC1H-W HELE晶振 HSX221SA 14MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B015000ADC1H-W HELE晶振 HSX221SA 15MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B016000ADC1H-W HELE晶振 HSX221SA 16MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B017000ADC1H-W HELE晶振 HSX221SA 17MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B018000ADC1H-W HELE晶振 HSX221SA 18MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B019000ADC1H-W HELE晶振 HSX221SA 19MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B020000ADC1H-W HELE晶振 HSX221SA 20MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B021000ADC1H-W HELE晶振 HSX221SA 21MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B022000ADC1H-W HELE晶振 HSX221SA 22MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B023000ADC1H-W HELE晶振 HSX221SA 23MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B024000ADC1H-W HELE晶振 HSX221SA 24MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B025000ADC1H-W HELE晶振 HSX221SA 25MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B026000ADC1H-W HELE晶振 HSX221SA 26MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B027000ADC1H-W HELE晶振 HSX221SA 27MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B028000ADC1H-W HELE晶振 HSX221SA 28MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B029000ADC1H-W HELE晶振 HSX221SA 29MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B030000ADC1H-W HELE晶振 HSX221SA 30MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B031000ADC1H-W HELE晶振 HSX221SA 31MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B032000ADC1H-W HELE晶振 HSX221SA 32MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B033000ADC1H-W HELE晶振 HSX221SA 33MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B034000ADC1H-W HELE晶振 HSX221SA 34MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B035000ADC1H-W HELE晶振 HSX221SA 35MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B036000ADC1H-W HELE晶振 HSX221SA 36MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B037000ADC1H-W HELE晶振 HSX221SA 37MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038000ADC1H-W HELE晶振 HSX221SA 38MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B039000ADC1H-W HELE晶振 HSX221SA 39MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B040000ADC1H-W HELE晶振 HSX221SA 40MHz 12pF ±20PPM ±20PPM -20~70°C 2.5×2.0mm
X2B038400BA1H-U HELE晶振 HSX221SA 38.4MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B016000BA1H-U HELE晶振 HSX221SA 16MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B017000BA1H-U HELE晶振 HSX221SA 17MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B018000BA1H-U HELE晶振 HSX221SA 18MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B019000BA1H-U HELE晶振 HSX221SA 19MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B020000BA1H-U HELE晶振 HSX221SA 20MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B021000BA1H-U HELE晶振 HSX221SA 21MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B022000BA1H-U HELE晶振 HSX221SA 22MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B023000BA1H-U HELE晶振 HSX221SA 23MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B024000BA1H-U HELE晶振 HSX221SA 24MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B025000BA1H-U HELE晶振 HSX221SA 25MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B026000BA1H-U HELE晶振 HSX221SA 26MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B027000BA1H-U HELE晶振 HSX221SA 27MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B028000BA1H-U HELE晶振 HSX221SA 28MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B029000BA1H-U HELE晶振 HSX221SA 29MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B030000BA1H-U HELE晶振 HSX221SA 30MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B031000BA1H-U HELE晶振 HSX221SA 31MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B032000BA1H-U HELE晶振 HSX221SA 32MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B033000BA1H-U HELE晶振 HSX221SA 33MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B034000BA1H-U HELE晶振 HSX221SA 34MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B035000BA1H-U HELE晶振 HSX221SA 35MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B036000BA1H-U HELE晶振 HSX221SA 36MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B037000BA1H-U HELE晶振 HSX221SA 37MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B038000BA1H-U HELE晶振 HSX221SA 38MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B039000BA1H-U HELE晶振 HSX221SA 39MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B040000BA1H-U HELE晶振 HSX221SA 40MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B041000BA1H-U HELE晶振 HSX221SA 41MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B042000BA1H-U HELE晶振 HSX221SA 42MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B043000BA1H-U HELE晶振 HSX221SA 43MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B044000BA1H-U HELE晶振 HSX221SA 44MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B045000BA1H-U HELE晶振 HSX221SA 45MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
X2B046000BA1H-U HELE晶振 HSX221SA 46MHz 10pF ±10PPM ±10PPM -20~70°C 2.5×2.0mm
