501JCA24M0000BAG,Silicon品牌,6G低功耗晶振

頻率：24MHz

尺寸：5.0mm x 3.2mm

501JCA24M0000BAG,Silicon品牌,6G低功耗晶振,歐美進口晶振,Silicon晶振,Si501有源晶振,501JCA24M0000BAG晶振,石英晶體振蕩器,5032mm晶振,四腳貼片晶振,頻率24MHz,電壓3.3V,頻率穩定性20ppm,工作溫度-40~85°C,無鉛環保晶振,低功耗晶振,高穩定性晶振,通用處理器晶振,工業控制器晶振,戶外電子產品晶振,多功能打印機晶振.

訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

ConnorWinfield-1

501JCA24M0000BAG,Silicon品牌,6G低功耗晶振,歐美進口晶振,Silicon晶振,Si501有源晶振,501JCA24M0000BAG晶振,石英晶體振蕩器,5032mm晶振,四腳貼片晶振,頻率24MHz,電壓3.3V,頻率穩定性20ppm,工作溫度-40~85°C,無鉛環保晶振,低功耗晶振,高穩定性晶振,通用處理器晶振,工業控制器晶振,戶外電子產品晶振,多功能打印機晶振.

501JCA24M0000BAG,Silicon品牌,6G低功耗晶振特點：

-寬頻率范圍:32KHz至100MHz

-有關100 MHz以上的頻率，請聯系Silicon Labs

-Si501單頻w/ OE

-Si502雙頻w/ OE/FS

-Si503四頻w/ FS

-±20/30/ 50ppm頻率穩定性，包括10年老化

-LVCMOS輸出

-低周期抖動

-低功耗

-連續供電電壓范圍:+1.71 V ~ +3.63 V

-用戶可選擇的升降選項

-無故障啟動和停止

-短期穩定性好，長期老化性好

-行業標準腳印:2x2.5, 2.5x3.2, 3.2x5 mm

-符合RoHS標準，無鉛

-縮短交貨期:<2周

-20至+70°C:擴展商用

-40至+85°C:工業

-Si50x系列還包括Si504，用于電路可編程性(參見Si504數據表)


高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

501JCA24M0000BAG,Silicon品牌,6G低功耗晶振規格表

Parameters Condition Si501
Frequency Range 24MHZ
Frequency Stability ±20ppm
Operating Temperature Extended Commercial grade -20°C~+70°C
Extended commercial -40°C~+85°C
Storage Temperature -55°C~+125°C
Supply Voltage 3.3V
Supply Current CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low power option
 2.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low power option
 6.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low jitter option
 4.9 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low jitter option
 8.9 mA Max
OE Internal Pull Resistor Ordering option
60 kΩ Max
Rise and Fall Times 1 1st ordering option code2: A and H Z0=25 Ω@ 3.3 V 1.2ns Max
Startup Time2
 From VDD crossing 1.71 V to first clock output
 4ms Max
    Output High Voltage

1st ordering option code: A and H IOH=–4 mA 0.90 x VDD Min
Output Low Voltage
 1st ordering option code: A and H IOH=+4 mA 0.10 x VDD Max
Duty Cycle Drive strength selected such that tRise/tFall (20% to 80%)<10% of period 45% Min ~55% Max
Period Jitter 100 MHz, Low Jitter Option 1st ordering option code: H 1.6 ps RMS Max
100 MHz, Low Power Option 1st ordering option code: A 1.9 ps RMS Max
Phase Jitter
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Jitter Option 1st ordering option code: H
1.3 ps RMS Max
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Power Option 1st ordering option code: A
3.2 ps RMS Max

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

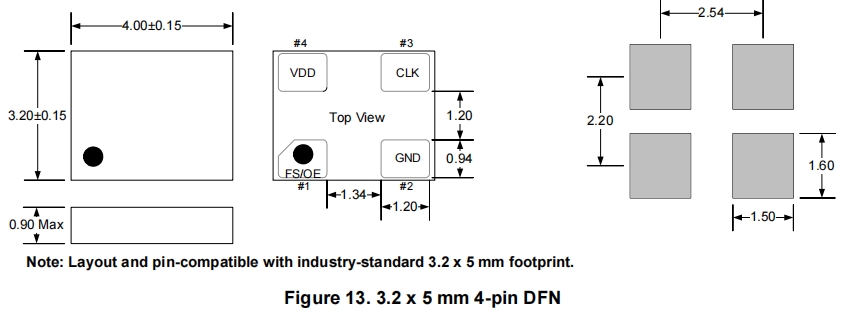

501JCA24M0000BAG,Silicon品牌,6G低功耗晶振尺寸圖

Si501-5032

SI501-1

Si501-2

原廠代碼 品牌 型號 頻率 電壓 頻率穩定度 尺寸
501AAA27M0000DAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA27M0000DAG Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA100M000CAG Silicon Labs Si501 100MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA100M000BAG Silicon Labs Si501 100MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCAM032768BAF Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCAM032768DAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCAM032768DAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JAA24M0000DAF Silicon Labs Si501 24MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501BAA16M0000DAF Silicon Labs Si501 16MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JAA24M0000CAF Silicon Labs Si501 24MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA27M0000CAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA25M0000BAF Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA40M0000CAF Silicon Labs Si501 40MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA24M0000BAF Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501EAA48M0000CAF Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA27M0000BAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501EAA48M0000BAF Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA25M0000BAF Silicon Labs Si501 25MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BAA50M0000BAF Silicon Labs Si501 50MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA50M0000CAF Silicon Labs Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501EAA48M0000DAG Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA25M0000DAG Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501HCA27M0000DAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ABA8M00000BAF Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA12M0000DAF Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA24M0000DAF Silicon Labs Si501 24MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA24M0000BAG Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCA16M0000BAF Silicon Labs Si501 16MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA24M0000CAF Silicon Labs Si501 24MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCA26M0000BAF Silicon Labs Si501 26MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA25M0000BAG Silicon Labs Si501 25MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCA16M0000CAF Silicon Labs Si501 16MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501EAA48M0000CAG Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501BAA16M0000BAG Silicon Labs Si501 16MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BAA16M0000CAG Silicon Labs Si501 16MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA24M0000BAG Silicon Labs Si501 24MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA27M0000BAG Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ACA10M0000CAF Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA40M0000BAG Silicon Labs Si501 40MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ACA10M0000BAF Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA10M0000BAF Silicon Labs Si501 10MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA12M0000BAF Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA25M0000CAF Silicon Labs Si501 25MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCA27M0000BAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA50M0000BAG Silicon Labs Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ABA8M00000BAG Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA27M0000DAG Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ABA8M00000CAG Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA10M0000BAG Silicon Labs Si501 10MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ACA10M0000BAG Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA20M0000CAG Silicon Labs Si501 20MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501BCA16M0000BAG Silicon Labs Si501 16MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCA16M0000CAG Silicon Labs Si501 16MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA100M000DAF Silicon Labs Si501 100MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA100M000CAF Silicon Labs Si501 100MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA100M000BAF Silicon Labs Si501 100MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCAM032768DAF Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501HCAM032768DAF Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCAM032768CAF Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501BCAM032768BAF Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCAM032768CAF Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501BCAM032768CAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
500DLAA125M000ACF Silicon Labs Si500D 125MHz 2.5V ±150ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
500DLAA200M000ACF Silicon Labs Si500D 200MHz 2.5V ±150ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
501BCAM032768BAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCAM032768DAF Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCAM032768BAF Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCAM032768BAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCAM032768CAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCAM032768BAG Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCAM032768CAF Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCAM032768CAG Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCAM032768DAG Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ABA8M00000CAF Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501ABA8M00000DAF Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ABA8M00000DAG Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ACA10M0000CAG Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501ACA10M0000DAF Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ACA10M0000DAG Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA10M0000CAF Silicon Labs Si501 10MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA10M0000CAG Silicon Labs Si501 10MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA10M0000DAF Silicon Labs Si501 10MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA10M0000DAG Silicon Labs Si501 10MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501HCA12M0000BAG Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA12M0000CAF Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCA12M0000CAG Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCA12M0000DAG Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501BCA16M0000DAF Silicon Labs Si501 16MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501BCA16M0000DAG Silicon Labs Si501 16MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501BAA16M0000BAF Silicon Labs Si501 16MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BAA16M0000CAF Silicon Labs Si501 16MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501BAA16M0000DAG Silicon Labs Si501 16MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA20M0000BAF Silicon Labs Si501 20MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA20M0000BAG Silicon Labs Si501 20MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA20M0000CAF Silicon Labs Si501 20MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA20M0000DAF Silicon Labs Si501 20MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA20M0000DAG Silicon Labs Si501 20MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA24M0000CAF Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA24M0000CAG Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA24M0000DAF Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA24M0000DAG Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JAA24M0000BAF Silicon Labs Si501 24MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA24M0000CAG Silicon Labs Si501 24MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA24M0000DAG Silicon Labs Si501 24MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA24M0000BAF Silicon Labs Si501 24MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA24M0000BAG Silicon Labs Si501 24MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA24M0000CAG Silicon Labs Si501 24MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA24M0000DAG Silicon Labs Si501 24MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA25M0000BAG Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA25M0000CAF Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA25M0000CAG Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA25M0000DAF Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JAA25M0000CAF Silicon Labs Si501 25MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA25M0000CAG Silicon Labs Si501 25MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA25M0000DAF Silicon Labs Si501 25MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JAA25M0000DAG Silicon Labs Si501 25MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)

JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.mimatsu-osaka.com/

相關的產品 / Related Products

EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振,憑借品牌專屬的"高精度晶體微調技術",實現了48.000MHz的穩定頻率輸出,頻率精度嚴格控制在±10ppm以內,遠優于行業內部分同類產品±15ppm的精度標準,為高帶寬電子設備提供了可靠的"時鐘核心".在通信領域,它可適配5G基站晶振的基帶處理單元,光纖通信的信號轉發模塊,48MHz的高頻特性能支撐每秒數GB的數據流傳輸,減少信號同步延遲,降低數據丟包率,在工業自動化場景,為高速運動控制器,機器視覺檢測設備提供高頻時鐘信號.
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器,從結構工藝來看,EC5645ETTTS-48.000MTR采用全密封金屬外殼封裝,相較于傳統陶瓷封裝,金屬外殼具備更優異的屏蔽性能,能有效隔絕外界電磁輻射與機械振動干擾,大幅降低信號失真風險,保障晶振長期穩定工作.內部搭載高精度石英晶體單元,經過Ecliptek獨家的精密切割與校準工藝處理,結合低噪聲振蕩電路設計,實現了低相位噪聲特性,在高頻工作狀態下仍能保持信號純凈度.同時,2520小型化封裝搭配標準化貼片引腳設計,完美適配自動化SMT貼裝工藝,提升生產效率的同時,減少人工組裝誤差,降低生產成本.
EC2600TS-66.000MTR,Ecliptek晶振,LVCMOS輸出
EC2600TS-66.000MTR,Ecliptek晶振,LVCMOS輸出
EC2600TS-66.000MTR,Ecliptek晶振,LVCMOS輸出,核心輸出頻率精準鎖定66.000MHz,能為電子設備提供高頻且穩定的時鐘信號,滿足高速數據處理與信號傳輸場景的時序需求.該晶振采用行業主流的LVCMOS(低壓互補金屬氧化物半導體)輸出接口,具備低電壓工作特性(典型工作電壓范圍3.3V±5%或2.5V±5%,適配不同設備供電需求),輸出電平與主流數字電路兼容,無需額外電平轉換模塊即可直接與MCU,FPGA等芯片對接,大幅簡化電路設計,同時LVCMOS輸出模式還能有效降低信號傳輸損耗,減少功耗,適配便攜式,低功耗電子設備的設計需求.此外,產品封裝規格符合小型化設計趨勢,可靈活融入高密度PCB板布局,適配對空間要求嚴苛的設備場景.

JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路
