NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振

NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振

產品簡介

NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振  ,NDK進口晶振,NSC5343A有源晶振,NP3225SB石英晶體振蕩器,汽車影音專用晶振,LVDS輸出差分晶振,頻率100MHz,電壓2.5V,頻率穩定性50ppm,工作溫度-40~85°C,車載CDD相機晶振,存儲器晶振,圖像處理晶振,衛星通信地面設備晶振,數字地面電視廣播設備晶振,車載電腦晶振.

產品詳情

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振,NDK進口晶振,NSC5343A有源晶振,NP3225SB石英晶體振蕩器,汽車影音專用晶振,LVDS輸出差分晶振,頻率100MHz,電壓2.5V,頻率穩定性50ppm,工作溫度-40~85°C,車載CDD相機晶振,存儲器晶振,圖像處理晶振,衛星通信地面設備晶振,數字地面電視廣播設備晶振,車載電腦晶振.

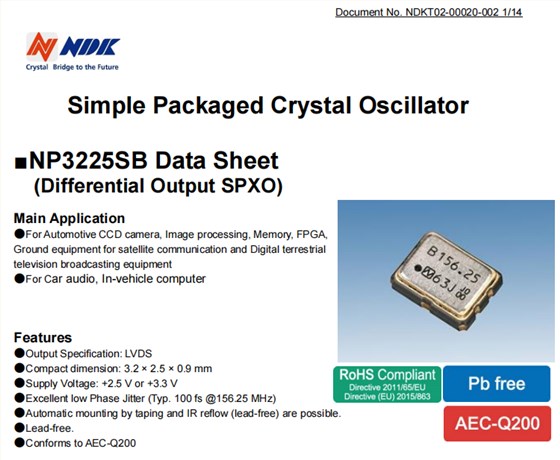

NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振特點：

●輸出規格:LVDS

●緊湊尺寸:3.2 × 2.5 × 0.9 mm
●電源電壓:+2.5 V或+3.3 V
●出色的低相位抖動(類型:100 fs @156.25 MHz)
●自動安裝膠帶和紅外回流(無鉛)是可能的
●無鉛
●符合AEC-Q200標準

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振 參數表

項目 符號 數值 注意
頻率 fnom 100MHz
電壓 VCC +2.5 V
電壓消耗運行 ICC 40mA max at 25 °C
輸出水平 - LVDS
負載 RL 100Ω Out-Complementary Out
工作溫度 Topr -40°C to +85°C
頻率公差 Δf/fnom ±50ppm *1
差分輸出電壓 VOL

VCC- 1.81Vmin

VCC- 1.62Vmax

-40 to +85 °C
VOH

VCC- 1.025Vmin

VCC-0.88Vmax

上升下降時間 tr/tf 1ns max 20 % to 80 % waveform
對稱 SYM 45%min -55%max at 50 % Waveform
啟動時間 tsu 10ms max
相位抖動 tpj 1ps *2
輸出波形 - Square wave
儲存溫度 T_stg -55°Cto+125°C

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

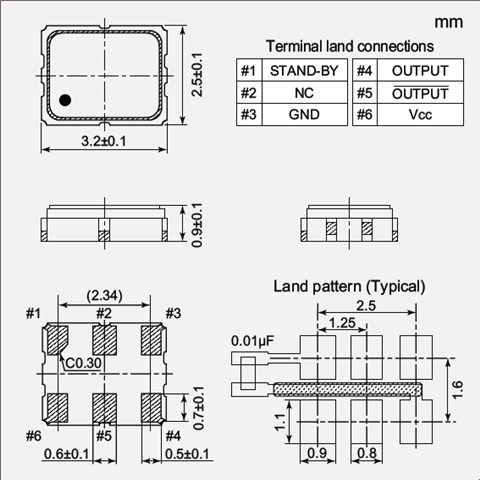

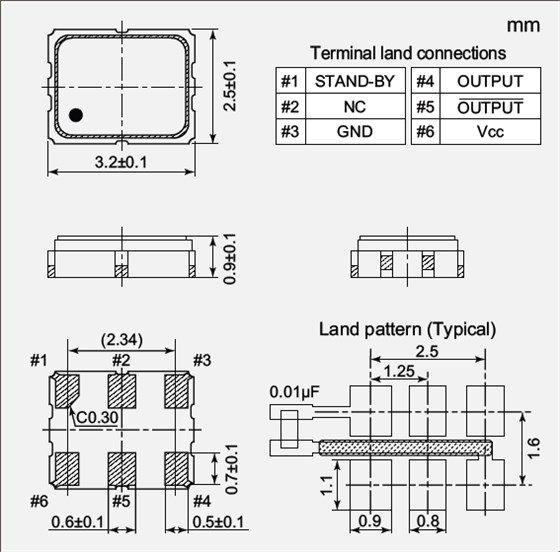

NSC5343A,NP3225SB汽車影音專用晶振,LVDS輸出差分晶振尺寸圖

NP3225SB_3.2_2.5 SPXO

型號 頻率[MHz] 規格編號 尺寸(LxW)[mm] 輸出方式 工作溫度[℃] 保存溫度[℃] 電源電壓[V]
NP3225SB 50MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 100MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 125MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 135MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 148MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 156.25MHZ NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 200MHZ NSC5236A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 50MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 100MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 125MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 135MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 148MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 200MHZ NSC5236B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 50MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 100MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 125MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 135MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 148MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 156.25MHZ NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 200MHZ NSC5238A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 50MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 100MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 125MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 135MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 148MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 200MHZ NSC5238B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SC 100MHZ NSC5082A 3.2x2.5 HCSL -40?+85 -55?+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5082A 3.2x2.5 HCSL -40?+85 -55?+125 +2.5±0.125
NP3225SC 100MHZ NSC5345B 3.2x2.5 HCSL -40?+85 -55?+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5345B 3.2x2.5 HCSL -40?+85 -55?+125 +3.3±0.33
NP3225SC 100MHZ NSC5191A 3.2x2.5 HCSL -40?+105 -55?+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5191A 3.2x2.5 HCSL -40?+105 -55?+125 +2.5±0.125
NP3225SC 100MHZ NSC5346B 3.2x2.5 HCSL -40?+105 -55?+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5346B 3.2x2.5 HCSL -40?+105 -55?+125 +3.3±0.33
NP5032SA 100MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 125MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400A 5.0x3.2 LVPECL 0?70 -55?+125 +3.3±0.33
NP5032SA 100MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 125MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400B 5.0x3.2 LVPECL 0?85 -55?+125 +3.3±0.33
NP5032SA 100MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 125MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400C 5.0x3.2 LVPECL -40?+85 -55?+125 +3.3±0.33
NP5032SB 100MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 125MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401A 5.0x3.2 LVDS 0?70 -55?+125 +2.5±0.125
NP5032SB 100MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 125MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402A 5.0x3.2 LVDS 0?70 -55?+125 +3.3±0.33
NP5032SB 100MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 125MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401B 5.0x3.2 LVDS 0?85 -55?+125 +2.5±0.125
NP5032SB 100MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 125MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402B 5.0x3.2 LVDS 0?85 -55?+125 +3.3±0.33
NP5032SB 100MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 125MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401C 5.0x3.2 LVDS -40?85 -55?+125 +2.5±0.125
NP5032SB 100MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 125MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402C 5.0x3.2 LVDS -40?85 -55?+125 +3.3±0.33
NP5032SC 100MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 102.564MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 125MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 148.5MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 156.25MHZ NSC5403A 5.0x3.2 HCSL 0?+70 -55?+125 +2.5±0.25
NP5032SC 100MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 102.564MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 125MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 148.5MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 156.25MHZ NSC5404A 5.0x3.2 HCSL 0?+70 -55?+125 +3.3±0.33
NP5032SC 100MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 102.564MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 125MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 148.5MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 156.25MHZ NSC5403B 5.0x3.2 HCSL 0?+85 -55?+125 +2.5±0.25
NP5032SC 100MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 102.564MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 125MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 148.5MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 156.25MHZ NSC5404B 5.0x3.2 HCSL 0?+85 -55?+125 +3.3±0.33
NP5032SC 100MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 102.564MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 125MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 148.5MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 156.25MHZ NSC5403C 5.0x3.2 HCSL -40?+85 -55?+125 +2.5±0.25
NP5032SC 100MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 102.564MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 125MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 148.5MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33
NP5032SC 156.25MHZ NSC5404C 5.0x3.2 HCSL -40?+85 -55?+125 +3.3±0.33

NP3225SB
