M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz

頻率：25MHz

尺寸：12.3mm x 4.85mm

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz,MtronPTI進口晶振,M1001S066 25.000000,ATSM-49-R 貼片晶振,頻率25MHz,工作溫度-10~70°C,抗沖擊晶振,耐高溫晶振,航空電子與航空晶振,通信設備晶振,導航晶振,軍事無線電晶振,工業設備晶振,測量儀器晶振.

訂購熱線：0755-27837162

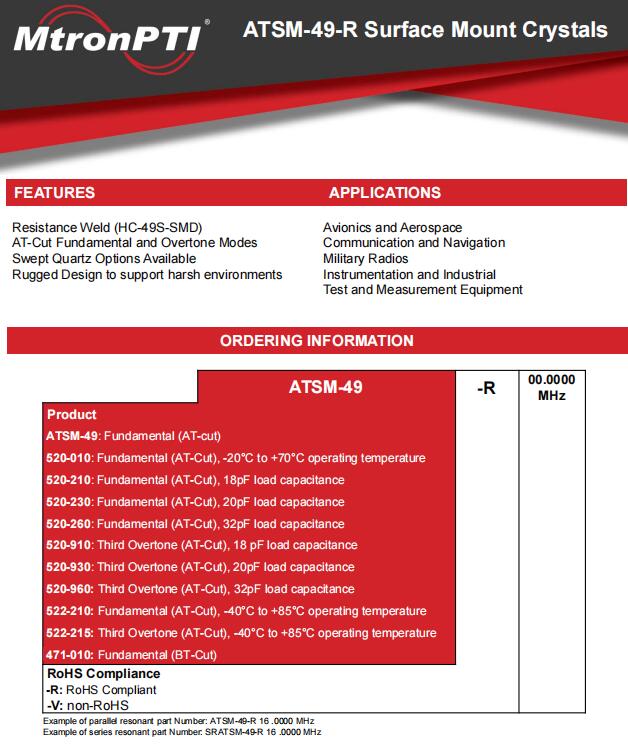

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 特征

•電阻焊接(HC-49S-SMD)

•AT-Cut基本和泛音模式

•掃描石英可選

•堅固的設計,以支持惡劣的環境

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

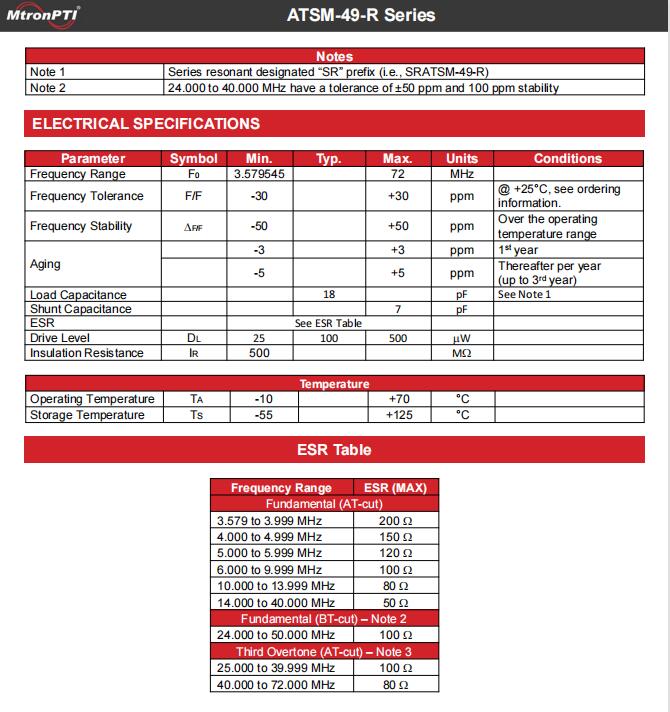

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 參數

項目	數值	條件
頻率	25MHz
頻率公差	±30PPM	@ +25°C, see ordering information.
頻率穩定性	±50PPM	Over the operating temperature range

老化	±3ppm Max	First year @ +25ºC.
工作溫度	-10°C to +70°C	See part numbering guide for options.
保存溫度	-55°C to +125°C
并聯電容 (C0)	7pF Max
負載電容 (CL)	12pF
激勵功率	500μW Max
絕緣電阻	500MΩ
串聯電阻ESR	50Ω	AT-Cut Fundamental.

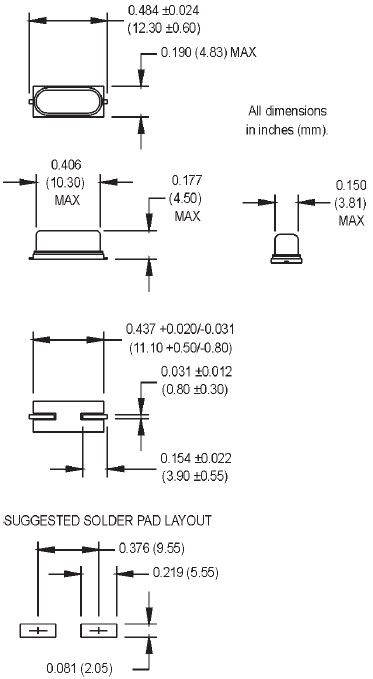

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 尺寸圖

原廠編碼	型號	頻率穩定度	頻率(MHz)	頻率容差	老化	工作溫度	負載
M1001S025-R 3.686400	ATSM-49-R	±50 ppm	3.6864	±30 ppm	±5 ppm	-40?C to +85?C	18 pF
M1001S066 25.000000	ATSM-49-R	±50 ppm	25	±30 ppm	±5 ppm	-10?C to +70?C	12 pF
M1001S096 24.000000	ATSM-49-R	±50 ppm	24	±30 ppm	±5 ppm	-40?C to +125?C	12 pF
M1001S097 30.000000	ATSM-49-R	±50 ppm	30	±30 ppm	±5 ppm	-40?C to +125?C	12 pF
M1001S175-R 4.000000	ATSM-49-R	±10 ppm	4	±25 ppm	±5 ppm	0?C to +70?C	20 pF
M1001S182 25.000000	ATSM-49-R	±50 ppm	25	±30 ppm	±5 ppm	-40?C to +85?C	18 pF
M1001S214 8.000000	ATSM-49-R	±50 ppm	8	±30 ppm	±5 ppm	-40?C to +85?C	18 pF
M1001S258 10.000000	ATSM-49-R	±50 ppm	10	±50 ppm	±5 ppm	-40?C to +125?C	18 pF
M1001S286 26.000000	ATSM-49-R	±50 ppm	26	Varies	±3 ppm	-20?C to +75?C	3 pF
M1001S328 26.000000	ATSM-49-R	±15 ppm	26	±10 ppm	±3 ppm	-40?C to +85?C	9 pF
M1001S445 50.000000	ATSM-49-R	±20 ppm	50	±15 ppm	±3 ppm	-40?C to +85?C	10 pF
M1001S448 8.000000	ATSM-49-R	±50 ppm	8	±50 ppm	±5 ppm	-55?C to +105?C	18 pF
M1001S483 4.194304	ATSM-49-R	±50 ppm	4.1943	±30 ppm	±5 ppm	-10?C to +70?C	12 pF
M1001S554 25.000000	ATSM-49-R	±50 ppm	25	±20 ppm	±5 ppm	-20?C to +70?C	18 pF
M1001S559 14.463660	ATSM-49-R	±30 ppm	14.4637	±30 ppm	NS	-40?C to +105?C	10 pF
M1001S599 24.576000	ATSM-49-R	±100 ppm	24.576	±30 ppm	±3 ppm	-55?C to +125?C	8 pF
M1001S600 16.777216	ATSM-49-R	±50 ppm	16.7772	±50 ppm	±5 ppm	-40?C to +85?C	15 pF
M1001S602 8.000000	ATSM-49-R	±50 ppm	8	±30 ppm	±5 ppm	0?C to +70?C	20 pF
M1001S609 4.000000	ATSM-49-R	±100 ppm	4	±30 ppm	±3 ppm	-40?C to +125?C	18 pF
